Who Uses This Product? The Onyx Hydraulic Lift is used by healthcare professionals to transfer individuals from one stationary surface to another, such as a wheelchair to a bed or commode.
Why They Love It: Thanks to high-performance hydraulics, this device lifts and lowers patients with gentle, gradual movements. The spreader bar is compatible with both 4- and 6-point patient slings, making it ideal for various transfers as well as more comfortable and safe for each patient.

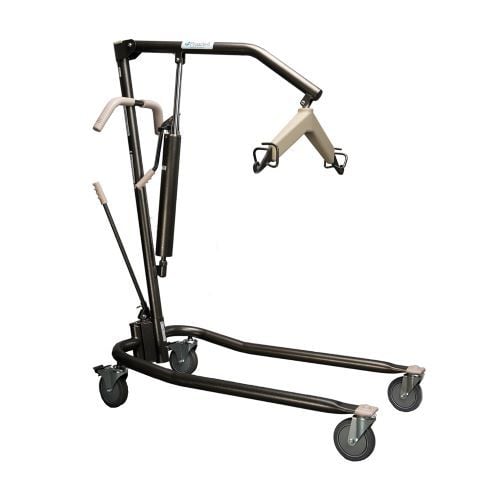

Onyx Hydraulic Patient Lift Overview
The Protekt Onyx Hydraulic Patient Lift is a hand-operated hydraulic lift that gradually raises and lowers the patient for a safe, comfortable transfer. It has a durable design and is easy to use for optimal patient and caregiver safety. It's ideal for therapy facilities, hospitals, home care, and more. The spreader bar allows the lift to safely handle a range of transfer types, and it accommodates 4- or 6-point Proactive Medical slings. This Onyx lift has a weight limit of 450 pounds and uses a hand-operated locking base that's easy to adjust and open.
Vitality Medical offers a variety of patient lifts.
Onyx Features and Benefits
- High-Performance Hydraulics Gradually Lift and Lower Patients
- Transfer Patients From One Resting Surface to Another
- User-Friendly Adjustable, Locking Base
- Spreader Bar Uses 4- or 6-Point Patient Slings for Safer Handling
- Chain Connections Included for Sling Attachments
- Dual Rear Locking Casters Keep Device Securely in Place
- No Tools Required for Assembly
- Durable and Easy-To-Use Design for Additional Safety
- Lifts Patients Up to 450 Pounds
High-Performance Hydraulic System
Each part of the hydraulic pump has been made with precision and carefully assembled for optimal patient safety. The pump is enclosed and sealed with neoprene rings to prevent hydraulic oil from leaking; this helps ensure the pump remains working. The hand-operated pump gradually lifts and lowers without jolting, providing safety and security as well as extra comfort during transfers.

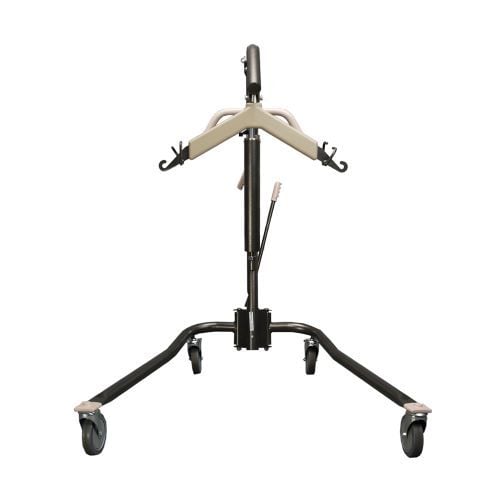

Low-Clearance, Adjustable Base
The Onyx patient lift has a base height clearance of 5.25 inches for sliding under hospital beds, chairs, and more. The hand-operated base opens and closes to adjust to objects such as wheelchairs, chairs, and commodes, making patient transfer possible from any stationary position. The dual rear-locking casters prevent the transfer aid from moving while lifting or lowering patients from any area, reducing the risks of falling and slipping.
Onyx Hydraulic Patient Lift Compatible Slings
The Onyx is compatible with these patient slings:
- Proactive Medical Full Body Mesh and Solid Polyester Patient Lift Slings, which are available in multiple sizes with and without commode openings.
- Proactive Medical Patient Leg Slings, which are available in either mesh or padded polyester.
Frequently Asked Questions (FAQ)
Can the lift be cleaned?
Yes, it is spot cleaned with nonabrasive cleaners on a soft cloth with mild detergent. Apply furniture polish or auto wax to the lift to maintain the sparkling finish.
Can this lift be used as a transfer device?
No, it is not safe to use this lift as a transfer device. it is only designed for moving the patient from one surface to another, such as from the bed into a transfer chair.
Can slings made by other manufacturers be used with this lift?
No, only Proactive Medical slings can be used with this lift. Using slings from other manufacturers could compromise patient safety and will void the lift warranty.
Product Specifications
- Manufacturer: Protekt
- Product Number: 32475
- Weight Capacity: 450 Pounds
- Unit Weight: 85 Pounds
- Mast Height: 51 Inches
- Base Legs Length: 40.5 Inches
- Base Width (Closed): 22 Inches
- Base Width (Open): 42.25 Inches
- Base Height (Clearance): 5.25 Inches
- Lowest Lifting Height: 17 Inches
- Highest Lifting Height: 61 Inches
- Lifting Range: 44 Inches
- Warranty:
- Frame: Limited Lifetime
- Pump and Lift Components: 1 Year Limited
- Application: Mobility Aid
Manuals and Documents
User Manual has information about cleaning, maintenance, warranty, and more.
Product Sheet discusses the product's features and lists specifications.
