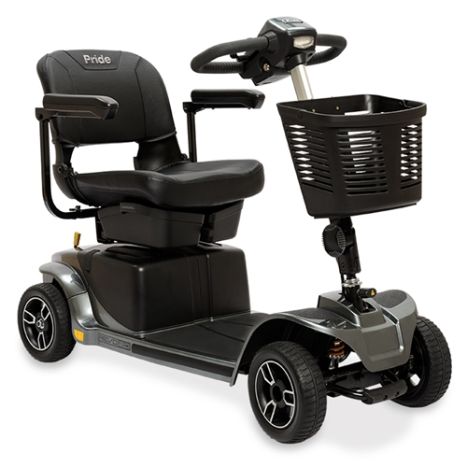

Pride Revo 2.0 4-Wheel Mobility Scooter

Pride Revo 2.0 4-Wheel Mobility Scooter combines a wide range of features to provide you with the highest level of safety, convenience, freedom, and the least possible maintenance.

The Revo 2.0 4-Wheel Scooter is built to last, with a weight limit of 400 lbs, front and rear suspension, and flat-free, non-scuffing tires. The Revo 2.0 Scooter driving experience is stacked with comfort and convenience, incorporating a soft, 20-inch-wide seat and user-friendly console at your fingertips. You can even charge your mobile device with the USB port, and store extra items in your front basket or under-seat storage. With an ECO Mode for battery life and a Sport Mode for speed, this mobility scooter covers all bases. Grab an aluminum quad cane and conveniently secure it to your cane holder until you need to use it.

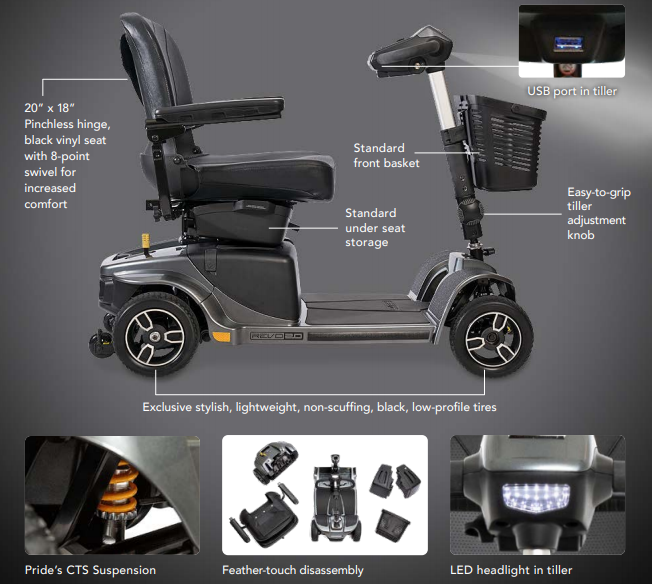

Features and Benefits

• Exclusive One-Hand Feather Touch Disassembly
• Now Has 400 lbs Weight Capacity
• Charge the Batteries on or off the Unit with Ease
• ECO Mode Offers Longer Battery Life at 4 MPH
• Sport Mode Offers Higher Speed (5 MPH)
• Ergonomic Armrests Allow You to Rest Both Arms While Operating the Scooter with One Hand
• Easy-to-Read LED Battery Meter
• Simple, User-Friendly Console
• USB Charging Port for Mobile Devices
• Front Basket for Easy-Access Storage
• Storage Under Seat for Additional Items
• Comfort-Trac Front and Rear Suspension

Accessories

• Cane/Crutch Holder
• Cell Phone Holder
• Cup Holder
• Forearm Crutch Holder
• Oxygen Tank Holder
• Quad Cane Holder
• Rear Basket
• Rearview Mirror
• Saddlebag
• Safety Flag
• Walker Holder
• Weather Cover
• Wishbone Crutch Holder
• Lap Belts: 50, 60 and 70 Inch

Revo 2.0 4-Wheel Mobility Scooter Operation

Getting Onto Your Scooter

• Make certain that the key is removed from the key switch.
• Stand at the side of your scooter.
• Disengage the seat rotation lever and rotate the seat until it is facing you.
• Make certain that the seat is fixed securely in position.
• Position yourself comfortably and securely in the seat.
• Disengage the seat rotation lever and rotate the seat until you are facing forward.
• Make certain that the seat is fixed securely in position.
• Make certain that your feet are safely on the floorboard.

Operating Your Scooter

• Set the speed adjustment dial to your desired speed.
• Press your thumb against the appropriate side of the throttle control lever.
• The electromechanical disc park brake automatically disengages and the scooter accelerates smoothly to the speed you preselected with the speed adjustment dial.
• Pull on the left handgrip to steer your scooter to the left.
• Pull on the right handgrip to steer your scooter to the right.
• Move the tiller to the center position to drive straight ahead.
• To stop, slowly release the throttle control lever. The electronic brakes will automatically engage, bringing your scooter to a stop.

Getting Off of Your Scooter

• Bring your scooter to a complete stop.
• Power down your scooter and remove the key from the key switch.
• Disengage the seat rotation lever and rotate the seat until you are facing toward the side of your scooter.
• Make certain that the seat is fixed securely in position.
• Carefully and safely get out of the seat and stand to the side of your scooter.
• You can leave the seat facing to the side to facilitate boarding your scooter next time.

Care and Maintenance

• Tire Pressure: Always maintain the psi/bar/kPa air pressure rating as indicated on each tire.
• Wheel Replacement: Contact your authorized Pride Provider for information regarding replacement wheels or tubes.
• Cleaning and Disinfection: Use a damp cloth and mild cleanser to clean the plastic and metal parts of your scooter.
• Battery Terminal Connections: The batteries must sit flat in the battery wells. Make certain that the terminal connections remain tight and uncorroded.
• Console and Rear Electronics: Keep these areas free of moisture. Allow them to dry thoroughly if they have been exposed to moisture before operating the scooter again.
• Light Bulb Replacement: Do not use regular automotive-type 12-volt light bulbs. This scooter is equipped with a 24-volt electrical system. Remove the light cover. Gently remove the bulb by pulling it straight out. Insert a new bulb of the same wattage. Replace the light cover.

Product Specifications

• Manufacturer: Pride Mobility
• Item Number: S67
• HCPCS Code: K0899

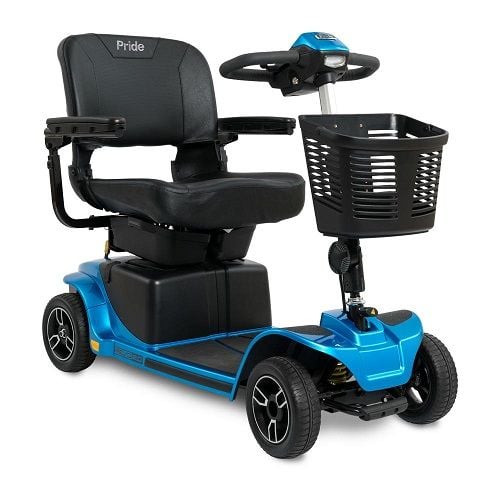

• Available Colors: Grey Street, True Blue
• Weight Capacity: 400 lbs
• Maximum Speed: 5 MPH
• Ground Clearance: 3.5 Inch at Side Deck
• Turning Radius: 52 Inch
• Overall Length: 47 Inch
• Overall Width: 20.75 Inch
• Seat-to-Ground Height: 23.5 Inch
• Seat-to-Deck Height: 18 Inch
• Front Tires: 3 x 9 Inch
• Rear Tires: 3 x 9 Inch
• Suspension: Front and Rear (CTS)
• Range per Charge: Up to 17.8 Miles (200 lbs), 12.4 Miles (400 lbs)
• Total Weight Without Batteries: 132 lbs
• Shipping Weight: 182 lbs
• Seat Width: 20 Inch
• Seat Depth: 18 Inch
• Drive System: Rear-Wheel Drive
• Motor: 24-Volt DC
• Dual Braking System: Regenerative and Electromechanical
• Battery Requirements: (2) UI Batteries
• Battery Charger: 3.5-Amp, Off-Board
• Frame Warranty: Lifetime Limited
• Drivetrain Warranty: 2-Year Limited
• Electronics Warranty: 2-Year Limited
• Battery Warranty: 6-Months
