Who Uses This Product? Pride Jazzy Passport Folding Power Chair is used by individuals with mobility limitations who enjoy the convenience of a electric power chair to comfortably get around and want an option with the ability to fold and store for travel.
Why They Love It: The compact frame doesn’t compromise convenience or performance, and it folds in a few simple steps so that traveling with a wheelchair doesn't add stress to the getaway. There is plenty of storage and a cup holder to keep a drink and personal items accessible. The controller mounts to either side for complete control and easy navigation.

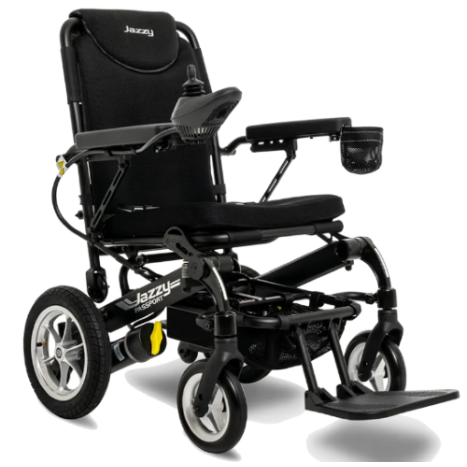

Pride Mobility Jazzy Passport Folding Power Chair Overview
The Pride Jazzy Passport Electric Wheelchair is compact, lightweight, and fast enough to get users where they want to go, indoors or out. This powered wheelchair has a top speed of 3.6 miles per hour and can travel up to 8.6 miles on a full charge. The Jazzy's steady speed and pneumatic rear drive wheels allow each user to safely travel down the road and handle uneven surfaces, navigate corners, and get through doorways. This mobility aid also handles corners, having a tight turning radius of 25.25 inches. The combination of 12-inch rear pneumatic tires and front 8-inch solid casters provides stability to travel on various terrains with the confidence that the dual braking system will gently bring the Jazzy Passport to a complete stop.
Vitality Medical offers a wide variety of wheelchairs to meet your mobility needs.
Features and Benefits
- Compact and Lightweight
- Travel-Friendly Design
- Folds in a Few Steps
- Easy-To-Use Joystick
- Comfortable Specialty Foam Seat
- Safety Anti-Tip Wheels and Lap Belt
- Adequate Storage for Belongings
- Tight Turning Radius
- Navigates a Variety of Outdoor Surfaces
- Braking System Allows Users To Stop Confidently
- Airline-Approved Lithium-Ion Battery
Jazzy Passport Chair Equipped for Convenience
Portable Travel
The main attraction is the Jazzy Passport's travel-friendly design. It always lives up to its name, taking power chair users where they want to go. The compact, foldable feature opens up stress-free travel, giving users peace of mind that getting the chair to and from their destination is possible. In a few simple steps, the locking mechanism folds the wheelchair compactly like a piece of luggage. After the battery is removed, the chair weighs only 53 pounds. The folded footprint makes it easy to place in the trunk or backseat of a car or take on an airplane.
It may be a compact motorized wheelchair, but the design does not compromise user convenience. There are two storage areas to stow away personal items: one backseat pocket and a second compartment under the seat. This keeps belongings close by at hand’s reach. The built-in mesh cup holder is attached to the end of the armrest so that it’s accessible and within reach without taking away from forearm space.
Comfortable Seating
The Pride Jazzy Passport Power Chair comes standard with a specialty seat with a backrest and foam cushion. The back support adds postural support, and a thick, cushioned seat promotes ongoing comfort during the time spent in the chair.
Frequently Asked Questions (FAQ)
Product Specifications
- Manufacturer: Pride Mobility
- Product Number: JZZYPSSPRT
- Frame Color: Pewter
- Weight Capacity: 250 Pounds
- Scooter Weight: 53 Pounds (Without Battery)
- Battery Weight: 7 Pounds
- Turning Radius: 24.25 Inches
- Maximum Speed: 3.6 Miles per Hour
- Range per Charge: Up to 8.6 Miles (Depends on User’s Weight)
- Dimensions:
- Length: 40 Inches
- Width 23.6 Inches
- Ground Clearance: 3 Inches at Motor
- Seat to Ground Height: 19 Inches
- Seat-to-Foot Platform Height: 14.5 Inches
- Seat Width: 17.5 Inches
- Seat Length: 16.5 Inches
- Casters: Solid, 8 Inches
- Tires: Pneumatic 12 Inches
- Suspension: Limited
- Drivetrain: (2) 180 Watt Brushed Motors
- Dual Braking System: Regenerative and Electromechanical
- Battery Type: 24 Volt 18Ah Lithium-Ion
- Battery Charger: 2-AMP, Off-Board
- Warranty:
- Frame: 5 Years
- Seat Post: 3 Years
- Electronic Components: 13 Months
- Miscellaneous Components: 13 Months
- Battery: 6 Months
*Pride FDA Class II Medical Devices are designed to aid individuals with mobility impairments
Manuals and Documents
Owner’s Manual provides safety guidelines, a parts diagram, steps for disassembly and folding, battery charging instructions, and care and maintenance guidelines.
Specification Sheet contains the power chair’s specifications and top features.
Warranty breaks down the warranty for the frame and its components.
How does the battery charger work?
The charger uses a standard electrical outlet that connects to the battery. The charger takes the standard electrical outlet voltage and converts it to 24-volt DC (direct current). When charging is nearly complete, the charger does not work as hard to complete the charging cycle, ensuring that it does not overcharge the battery.
Can any battery charger be used to charge the power chair?
Pride Mobility suggests only using the charger supplied with this model.
What should be done if the Jazzy Passport Electric wheelchair gets wet?
Dry the power chair as thoroughly as possible. When exposed to rain, keep it in a dry place for 12 hours to allow unseen moisture to evaporate. Before using the power chair, test the brakes and controller to ensure it’s operational.
Does the Jazzy Folding Power Chair ship with a fully charged battery?
The battery is charged, but may not be fully charged. It's recommended to charge for eight hours before riding.
What do I do if the battery dies while riding?
Engage the free-wheel lever to disable the wheels from the drive system. This allows the chair to be maneuvered manually.
