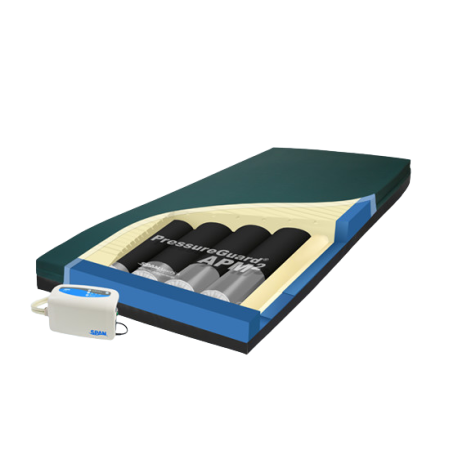

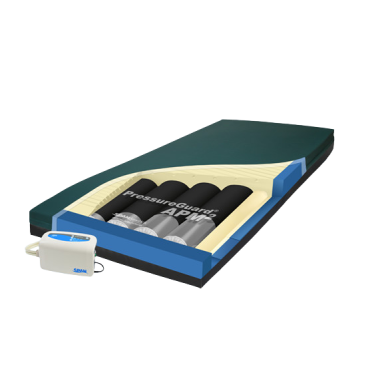

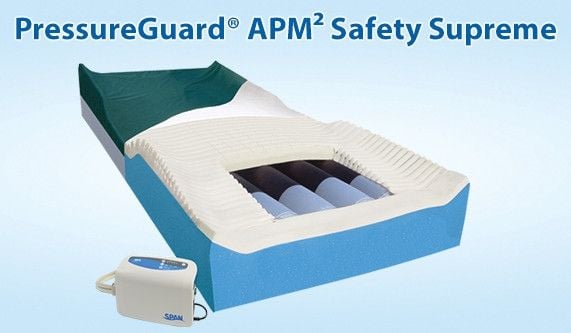

PressureGuard APM2 Safety Supreme Mattress & Control Unit/Pump

PressureGuard APM² Safety Supreme, manufactured by Span America, is an alternating pressure mattress with multi-mode air therapy and a raised safety perimeter to increase patient safety. This alternating pressure mattress is designed to enhance fall prevention and avoid entrapment, while simultaneously protecting the patient's skin integrity. Each mattress comes with a control unit/pump.

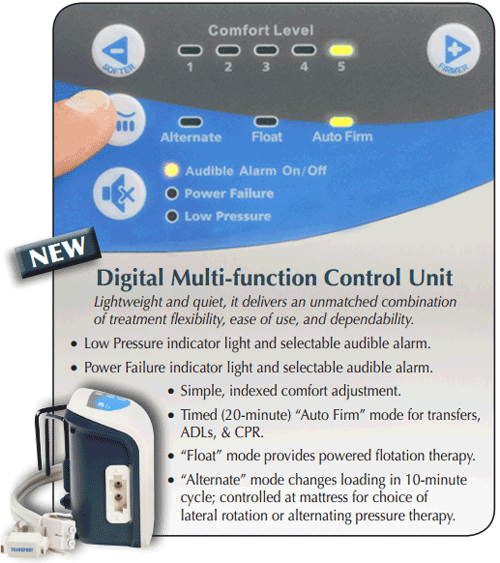

To effectively alleviate pain, this pressure mattress features a multi-functioning control unit that allows an individual to acutely control air therapy. The air system times the "auto firm" mode loading across the surface in 20-minute increments for transfers, activities of daily living, and, if necessary, cardiopulmonary resuscitation.

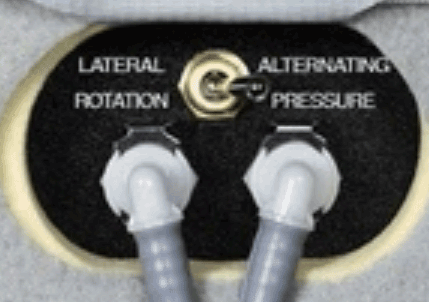

In addition to the auto firm mode, the Span America Alternating Safety Supreme Alternating Pressure Mattress mattress features an "alternate" mode that operates in 10-minute cycles. This mode gives the user control for lateral rotation or alternating pressure therapy.

These flexible treatments, though, are just the beginning. Once you have found a therapeutic, alternative pressure, you can select the "float" mode to suspend alternation while sustaining ideal pressures.

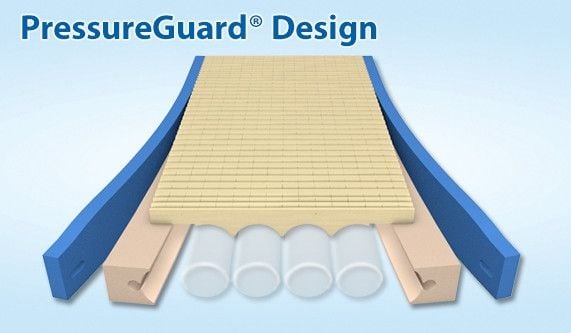

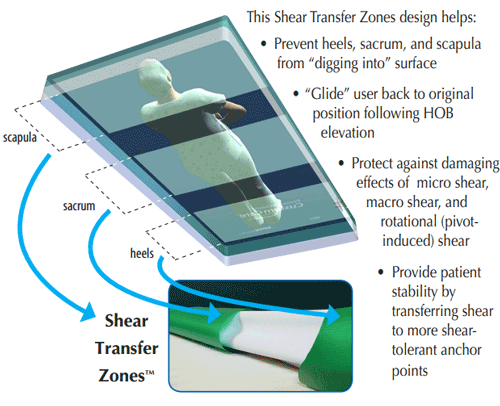

This Span America Hospital Mattress is composed of more than 800 articulating, tissue-friendly and responsive cells. These cells safeguard even the most delicate of skin against shearing, and regulate excess heat and moisture build-up.

The PressureGuard APM² Safety Supreme is available with Silver3, a proprietary fabric technology. Silver3 technology is a stretch cover infused with silver. The proprietary blend shields the surface of the mattress from stains, malodorous bacteria, mold, and mildew.

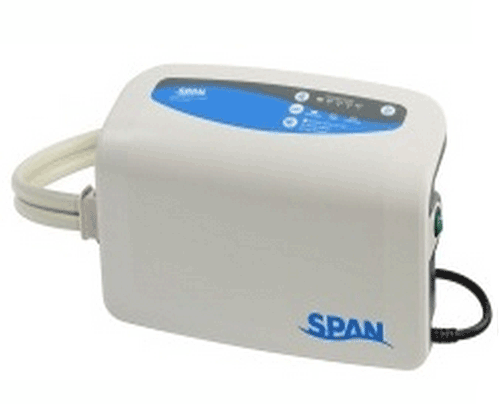

To operate this mattress, you need to use the control unit. This unit is relatively small and easily transports around the room.

Experience ease of operation with this mattress. To successfully alleviate pain and discomfort associated with shearing and pressure, order the PressureGuard APM² Safety Supreme today!

PressureGuard APM² Mattress Components

• APM² Mattress (various size options)
• Mattress Cover
• APM² Control Unit/Pump

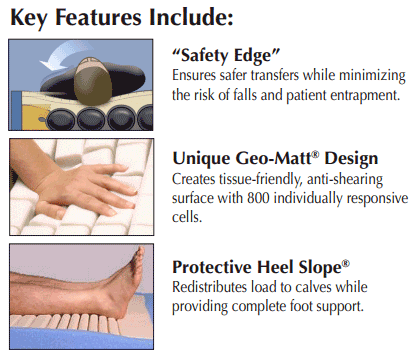

PressureGuard APM² Safety Supreme Features and Benefits

• Air diffusion matrix.
• Alternating pressure modes.
• Audible alarm and light indicates low pressure and power failure.
• Auto firm function for stability during transfers, ADLs, and CPR.
• Controls excess moisture and heat.
• Float mode.
• Lateral rotation.
• Minimizes risk of falls and entrapment.
• Perfect for vulnerable skin types.
• Reduces maceration on sensitive areas.
• Redistributes pressure away from vulnerable areas.
• Silver3 technology in the cover.

PressureGuard APM² Safety Supreme Specifications

• Product Numbers: SAF5875-29, SAF5880-29, SAF5884-29, 84409-29, 53667-29, 18635-29, 5900.
• Mattress Weight: 20 lbs.
• Weight Capacity: 350 lbs.
• Cover Material: Nylon.
• SAF5875-29 Dimensions:
• Length: 75 inches.
• Width: 35 inches.
• Height: 7 inches (center), 9 inches (side).
• SAF5880-29 Dimensions:
• Length: 80 inches.
• Width: 35 inches.
• Height: 7 inches (center), 9 inches (side).
• SAF5884-29 Dimensions:
• Length: 84 inches.
• Width: 35 inches.
• Height: 7 inches (center), 9 inches (side).
• 84409-29 (With Silver3 Cover) Dimensions:
• Length: 75 inches.
• Width: 35 inches.
• Height: 7 inches (center), 9 inches (side).
• 53667-29 (With Silver3 Cover) Dimensions:
• Length: 80 inches.
• Width: 35 inches.
• Height: 7 inches (center), 9 inches (side).
• 18635-29 (With Silver3 Cover) Dimensions:
• Length: 84 inches.
• Width: 35 inches.
• Height: 7 inches (center), 9 inches (side).
• Control Unit Dimensions:
• Length: 11.5 inches.
• Width: 7 inches.
• Height: 4.5 inches.
• Control Unit Weight: 4.7 lbs.
• Control Unit Voltage: 120 AC.
• Control Unit Max Current: 1.0 Amp.
• Control Unit Frequency: 60 Hertz.
• Warranty: 18-months (all components).
• Application: To alleviate pressure associated with shearing and pressure.
• HCPCS Code: E0277.
• Manufacturer: Span America.

PressureGuard APM² Mattresses Additional Information

• Carol Anderson, RN, PHN, and Laurie M. Rappl, PT, CWS; Ostomy/Wound Management April 2004:50(4):50-62
• SpanAmerica PressureGuard APM2 Mattress offers alternating pressure and lateral rotation air therapy.
• PressureGuard APM2 Mattress with Digital Control Unit Flyer provids quick facts, features, and specifications.
• SpanAmerica Bed Mattress Surface Algorithm is a guide for selecting the right mattress for your patient.

Notice: For the health and safety of our customers we cannot accept a return on a mattress once it has been used.
