Product Overview

MicroFET2 Handheld Dynamometer is designed to accurately and rapidly perform muscle testing. With the MicroFET2 Digital Manual Muscle Dynamometer, healthcare professionals, physical therapists, researchers, and health coaches are able to get a general idea of strength and ability of a wide range of muscles. This device is battery operated and can hold a wireless charge for up to six consecutive hours. While plugged in, the MicroFET2 Dynamometer can operate for up to 90 consecutive hours. The MicroFET2 MMT (manual muscle tester) uses curved and digital pads to target muscle groups and regions that are otherwise difficult to gather data on. The bluetooth capability can be paired with an optional software that automatically performs calculations and validity checks, generates tables and graphs, and creates high-impact comparison reports, among many other things. Pair with the Jamar Hand Grip Dynamometer to tackle hand grip strength on top of all of these other muscle groups.

Features and Benefits

Rapid and Effective Muscle Testing
Various Pads to Target Muscle Groups
Bluetooth Capability with Optional Software
Wireless Operation Lasts up to 6 Hours
Great for Wide Range of Professionals
Includes Everything Needed to Operate

What's Included

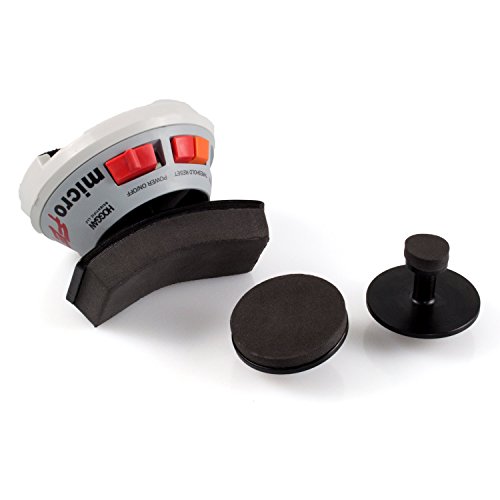

MicroFET2 wireless digital dynamometer (5021)
Flat/round transducer pad (0001)
Curved transducer pad (00035)
Digit transducer pad (00003)
Muscle testing positions wall chart
Upper-body test recording tablet
Lower-body test recording tablet
Comprehensive user manual
Product/warranty card
Calibration certificate
Carrying case
Rechargeable LI-ion battery
Wall pack power supply charger

MicroFET 2 Indications

Performing muscle tests
Measure muscle weakness caused by injury
Measure general muscle strength

Contraindications

On or near open wounds
Patients having severe osteoporosis
On or near burned tissue
On or near the eye
On or near fractures

Frequently Asked Questions (FAQ)

Q: What is a handheld dynamometer?

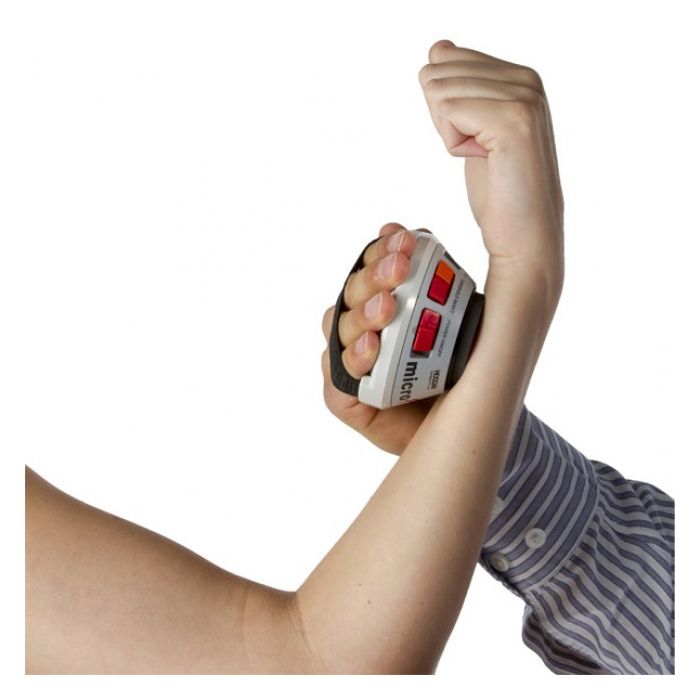

A: Handheld dnamometry (HHD) is a practice that uses small, portable devices, that are held by the examiner and placed against the patient's limb during a maximal isometric contraction. These devices are used to test proximal and distal muscles in all extremities. Some dynamometers are used to test grip strength.

Q: How are handheld dynamometers used in clinical settings?

A: In clinical practice, dynamomerty is used to measure muscle strength to determine mobility and self-care ability within patient populations. These measurements are also often documented and used for research purposes to determine the effectiveness of clinical trials, better understand patient circumstances, and get an idea of population health.

Q: What is a healthy person's normal hand strength?

A: Men can generally generate roughly 46 kiligrams (101 pounds), while women can generate about 23 kilograms (60 pounds). However, handheld dynamometers are used to quantitatively measure muscle weakness caused by injury, and measure general strength. For hand strength testing, patients should use a handgrip dynamometer, such as the Dynamometer Jamar.

Product Specifications

Manufacturer: Hoggan Scientific
Product Number: 5021
Application: Handheld Dynamometer
Weight: 1 Pound
Non-Wireless Operation Time: 90 Hours Continuous
Wireless Operation Time: 6 Hours Continuous
Optimal Storage: 52 to 92 Degrees Fahrenheit
Maximum Force Capacity: 300 Pounds
Internal Power Source: Battery
Input Power: 5V 1.0A
Recharge Time: 3 Continuous Hours
Low Threshold Test Range: 0.8 Pound to 300 Pounds in 0.1 Pound Increments
High Threshold Test Range: 3.0 Pounds to 300 Pounds in 0.1 Pound Increments
Accuracy: Within 1%
Data Storage: 30 Most Recent Tests
Wireless Frequency Operating Distance: 25 Feet from Receiver
Radio Frequency: 2.4 GHz
Colors: Gray, White, Red, Black

Manuals and Documents

Product Manual

Product Videos

Introduction to the MicroFET 2 Dynamometer (0:54 minutes)

Measure Shoulder Flexion Using the MicroFET 2 (0:54 minutes)

Measure Knee Flexion and Extension with the MicroFET 2 (1:14 minutes)

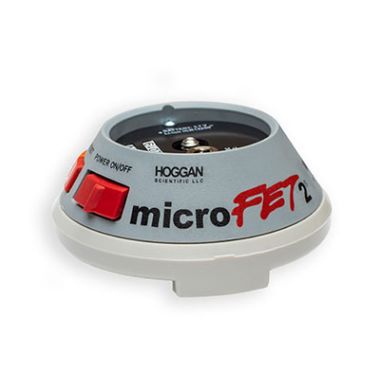

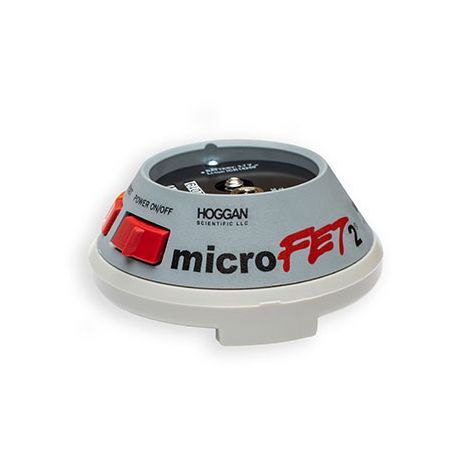

MicroFET2 Handheld Digital Muscle Dynamometer
