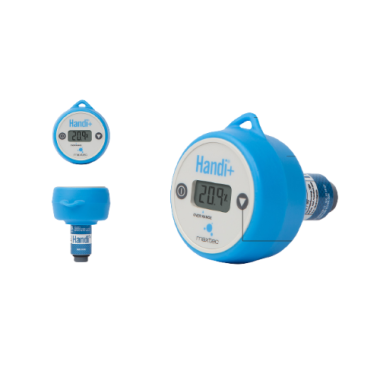

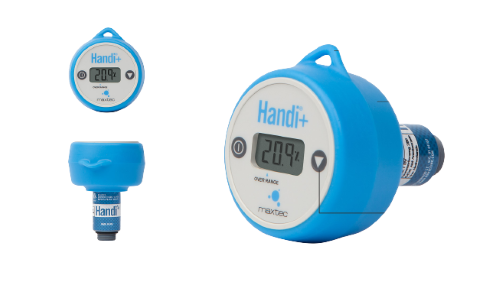

Maxtec Handi+ Oxygen Analyzer (R218P12)
Maxtec
- Authorized Distributor
PRODUCT HIGHLIGHTS
- Improved one-touch calibration button
- Overmold protects the analyzer device
- Includes a Maxtec 24-month warranty
- Built-in auto-off preserves battery life
- 3-digit LCD displays oxygen percentage
- Small and portable
- Fast Delivery
- Easy Returns
MPN :
White and Blue - Each - #R218P12
List Price: $281.02
You Save: $30.91 (11%)
$250.11
Description
Who Uses This Product? Handi+ Oxygen Analyzer is used by medical professionals in hospitals, clinics, and homecare use this O2 analyzer to spot-check the oxygen concentration on a portable oxygen device or respiratory care system.
Why They Love It: This oxygen analyzer is compact, simple to operate, and easy to read. Once it is powered, it's ready to test, with no warm-up time required. The LCD interface has two buttons for easy operation, with a built-in automatic shutoff feature that extends the device's battery life.
Handi+ HandHeld Oxygen Analyzer (Maxtec R218P12) Overview
The Maxtec Handi+ Handheld Oxygen Analyzer is a handy tool used by medical professionals and technicians responsible for testing oxygen concentration. It's vital to patient care to ensure the patient receives adequate supplemental oxygen. This compact device is handheld or attaches to a lanyard, making routine spot-checks fast and convenient. The Handi oxygen analyzer readings are digital for quick and easy interpretation. The program notifies when calibration is necessary and features a one-touch calibration button to complete this step.
Vitality Medical offers a variety of respiratory therapy supplies.

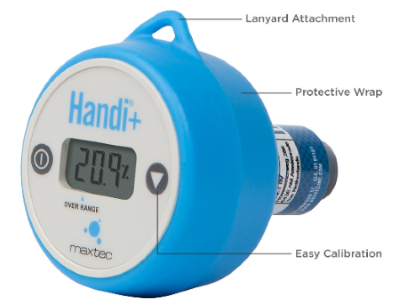

Handi+ Analyzer Features and Benefits
- Lanyard Attachment
- Small Size for Easy Portability
- One-Touch Calibration Button With Calibration Reminder
- Low Battery Indicator
- Ready To Use, No Warm-Up Time
- Highly Accurate
- Battery Operated
- Instantly Shuts Off
- Molded for Protection Against Electrical Shock
Handi+ On-the-Go Oxygen Analyzer
The oxygen analyzer is lightweight and portable to take the hassle out of oxygen concentration readings. An optional lanyard hook adds to the convenient Handi+ design. It's also battery-powered, making it easy to use within the clinic or take along for home healthcare visits.
Self-Test Program Detects Errors
The software does the work of finding errors. The self-test built-in programming detects faulty calibrations and checks the calibrations, oxygen sensor failures, and low operating voltage.
Easy-To-Read LCD With 2-Button Interface
The Handi O2 Analyzer's simple approach to getting oxygen readings starts with its easy-to-use interface. One button powers the unit on and off, while the other arrow button calibrates the device as needed. The analyzer automatically determines the calibration gas in the room with the calibration button and displays either 20.9 for room air or 100 for high grade. Weekly calibration is recommended and is easy to perform by holding down the arrow for three seconds to manually force a new calibration. This step is repeated when the screen displays an error code indicating the sensor is too low or high.
Frequently Asked Questions (FAQ)
After calibrating the analyzer to 20.9%, why does the display change as much as +/- 1%?
This variation is standard and is within the normal operating tolerance of +/- when temperature and pressure are constant.
After calibrating it to 99.9%, I am getting a 04 error. What does this mean?
This error means that the unit is at the end of its life.
How do I clean or disinfect the Handi+?
Clean the surface with a premoistened germicidal wipe with at least 65% isopropyl alcohol.
Can the Handi+ undergo sterilization?
No, do not sterilize using steam, ethylene oxide, or radiation.
Product Specifications and Information
- Manufacturer: Maxtec
- Product Number: R218P12
- Color: White and Blue
- Weight: 3 Ounces

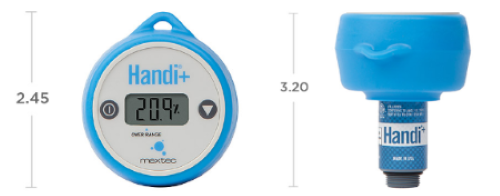

- Dimensions
- Display Height: 2.45 Inches
- Depth: 3.2 Inches
- Measurement Range: 0 to 99.9% Oxygen
- Display Resolution: 0.1% Oxygen
- Operating Temperature Range: 59° to 104° Fahrenheit (15° to 40° Celcius)
- Operating Humidity Range: 0 to 95%
- Accuracy: +/-3%
- Sensor Type: Galvanic Fuel Sensor
- Sensor Operating Life: 24 Months Under Normal Operating Conditions
- Expected Operational Life: 18 Months (Three Hours Use per Day)
- Storage Temperature: 59° to 122° Fahrenheit (15° to 50° Celcius)
- Battery Type: Lithium Coin-Cell CR2450 Battery
- Warranty: 2 Years
- Classification: Class II Medical Device
- Mode of Operation: Continuous
- Application: Oxygen Analyzer
Product Manuals and Important Documents
Datasheet provides a diagram with the device functions and measurements.
Specification Sheet details the analyzer specifications, including operating temperature range, accuracy, and operating life.
FDA Filing provides the regulation and establishment number for premarket submission.
User Manual provides component identification, calibrating instructions, operating instructions, and calibration errors and codes.
Additional Information
| Manufacturer | Maxtec |
|---|
