Needle-Free Extension Set With Multiple Port and Clamp Options

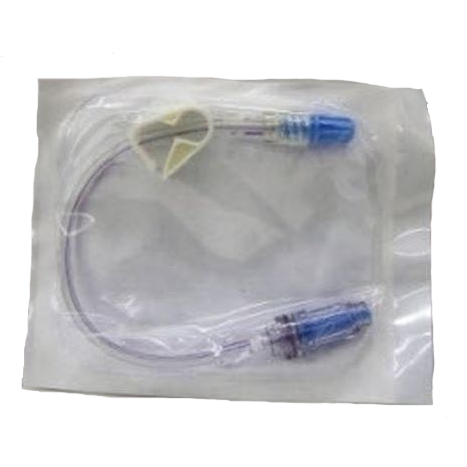

MaxPlus Extension Set supports efficient fluid management through a secure, needle-free connection system. Designed to connect to an existing IV line, this set enables medication or solution administration without requiring an additional vascular access point.
Each configuration is sterile and designed for single use. Selected models include removable or fixed slide clamps, spin male luer locks, and pressure-rated needle-free ports for safe and controlled fluid delivery. Several SKUs, such as MP9220-C and MP9232-C, offer multiple ports to streamline multidrug therapy while minimizing disconnection risks.
Built for standard or minibore applications, these sets accommodate clinical needs across various care settings. The device's closed system reduces touch contamination, while the needle-free connector supports compatibility with syringe-based access without using a cassette. Care teams can isolate individual ports as needed by adjusting integrated clamps.
Features and Benefits
- Sterile, closed needle-free system
- Reduces the need for secondary IV lines
- Multiple clamp and connector options
- Supports single or dual-port delivery
- Compatible with syringe access
- Designed for standard and minibore tubing
Specifications
- Manufacturer: CareFusion
- Brand: MaxPlus Clear
- Application: Needle-free extension set
- Connector Type: Spin male luer lock or fixed male luer
- Ports: 1 or 2 needle-free injection ports
- Clamp Type: Removable slide, fixed slide, or pinch clamp
- Priming Volume: 0.51 mL to 1.5 mL
- Sterility: Sterile, single use
- Bore: Standard or minibore
- Filter: Without filter
Available Configurations
- MP5301-C: 8.5-inch tubing, 0.8 mL, pinch clamp, male spin lock connector
- MP5303-C: 7-inch tubing, 0.7 mL, pinch clamp, pressure rated, purple-striped
- MP5313-C: 8.5-inch tubing, 0.59 mL, slide clamp, pressure rated, purple-striped minibore

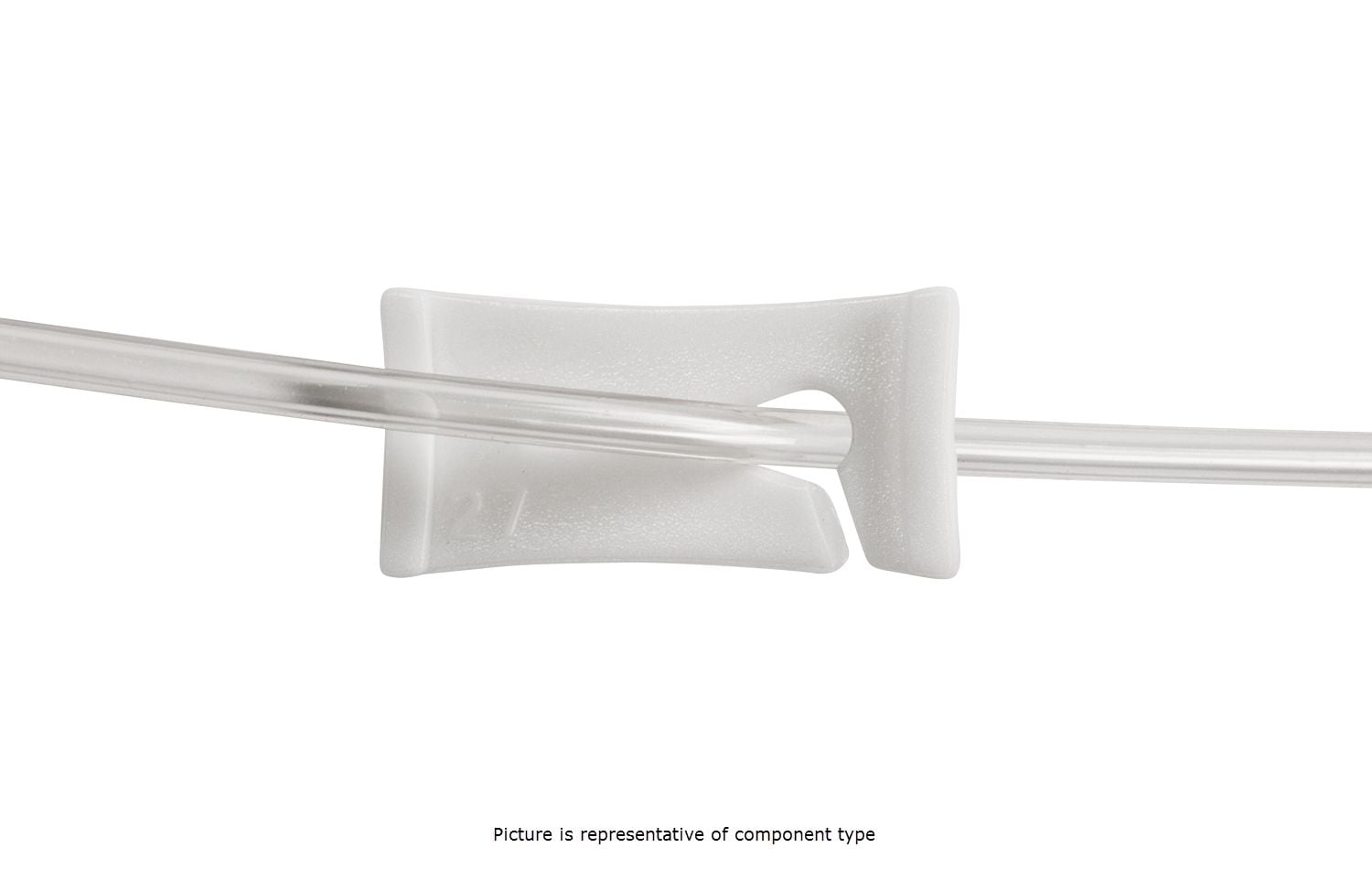

- MP9001: 7-inch tubing, 0.51 mL, removable slide clamp, minibore
- MP9014-C: 14-inch tubing, 0.75 mL, removable slide clamp, minibore
- MP9220-C: 7-inch tubing, 1.5 mL, 3 ports, 3 removable slide clamps

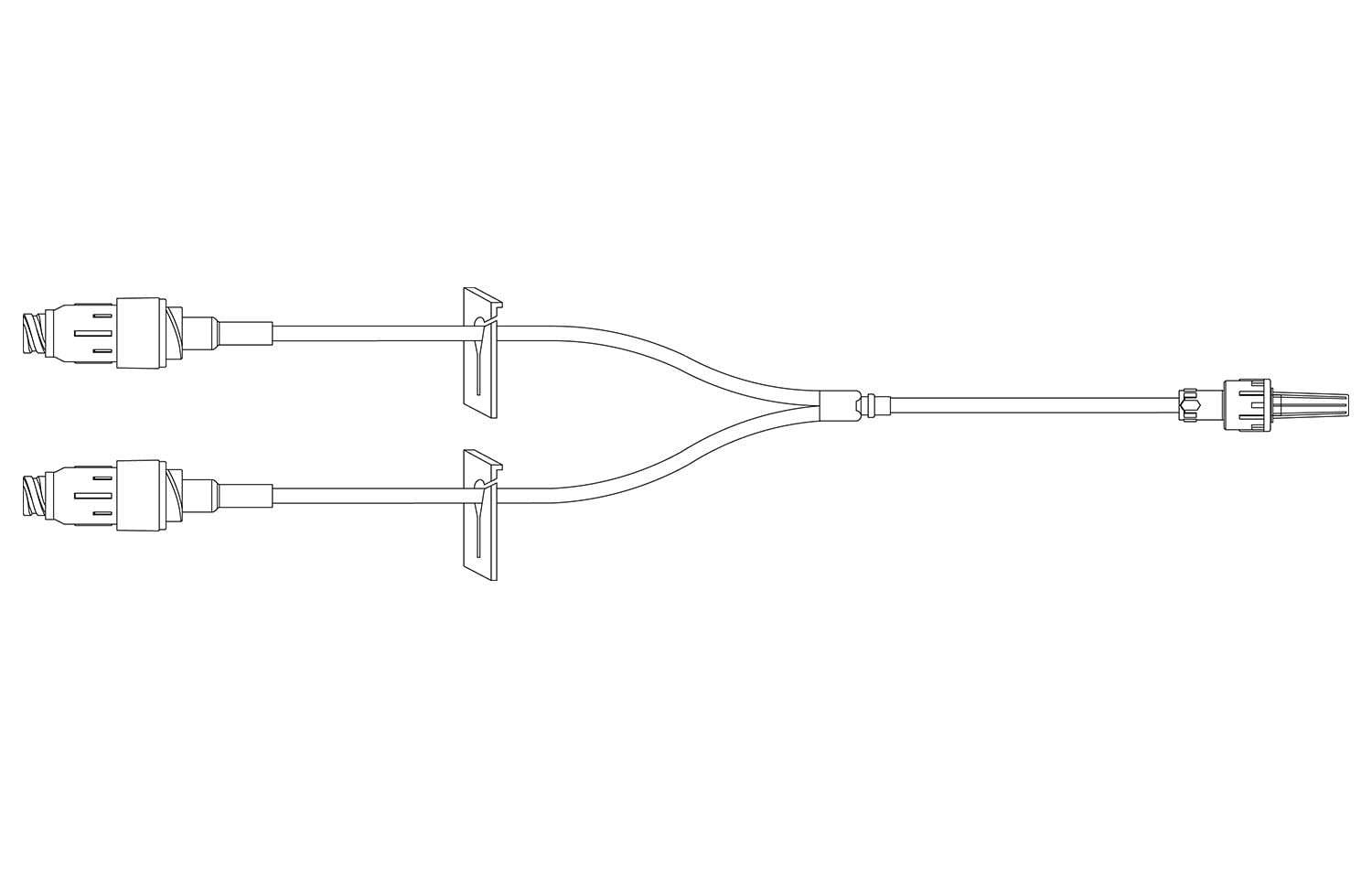

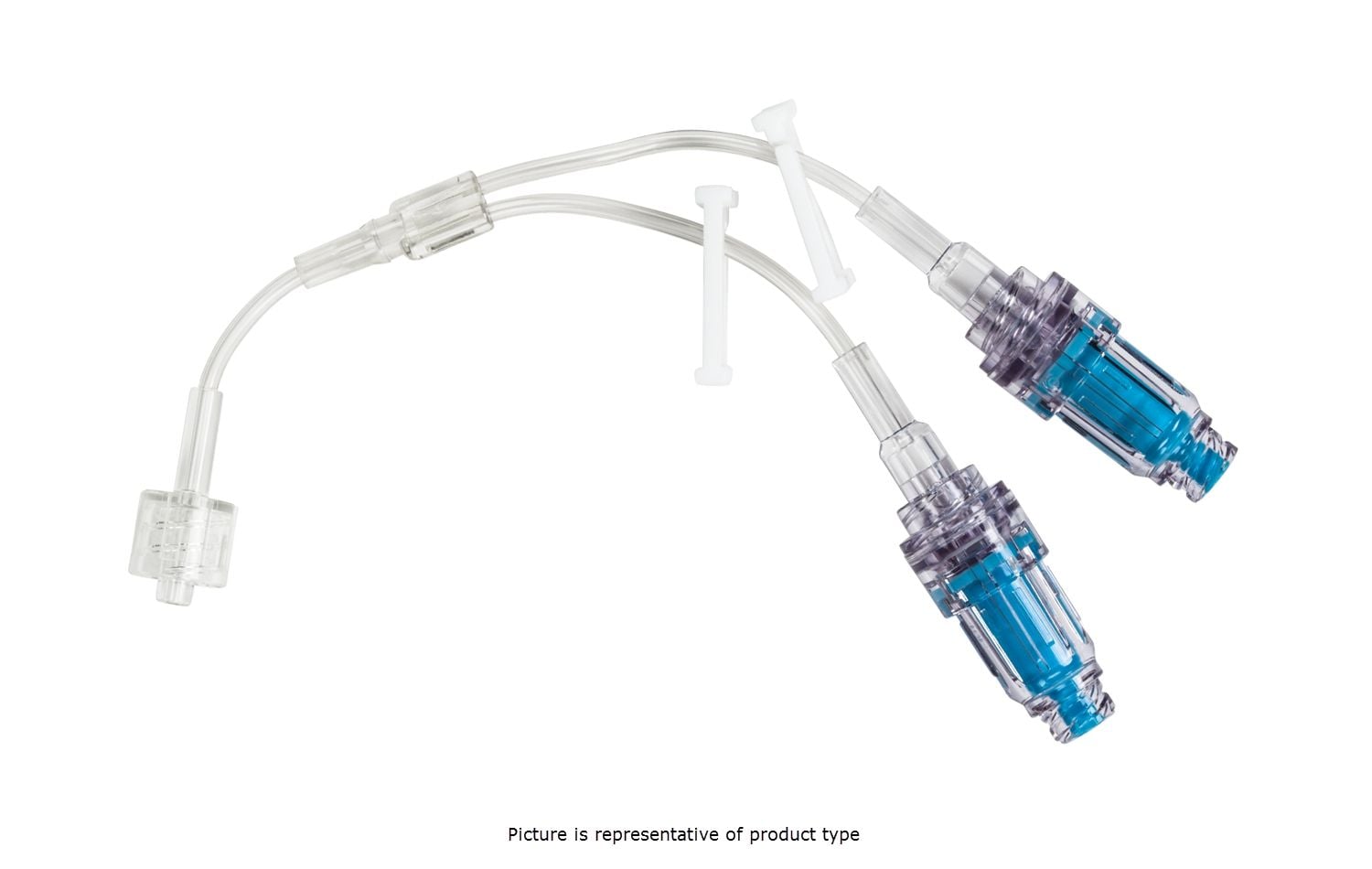

- MP9232-C: 6-inch tubing, 1.2 mL, 2 ports, 2 slide clamps, male luer
