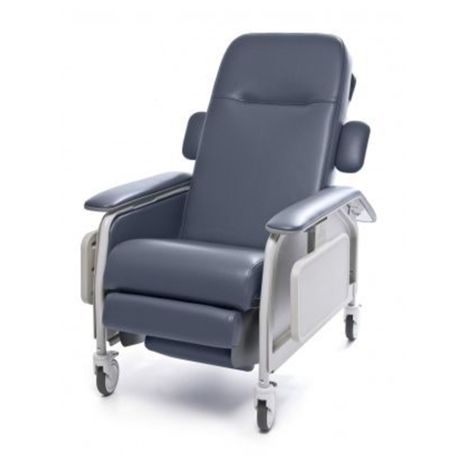

Lumex Clinical Care Geri Chair Recliner

This item is made to order and cannot be canceled or returned once it is ordered.

Lumex Clinical Care Geri Chair Recliners, manufactured by Graham Field , are ideal for seniors and patients in clinical, rest home, or private settings. This clinical geri chair version has three recline positions to maximize comfort and relaxation in addition to a fourth Trendelenburg position. The Trendelenburg position places the patient in a fully reclined supine position with their legs slightly elevated. This elevated Trendelenburg position purports to have a number of medical applications. Ergonomically designed, the recliner seat provides just the right amount of support for both increased circulation and comfort. Wheels make this easily transportable and perfect for patient transfers.

The upright position is a standard sitting position most appropriate for patient transfers and general treatment and therapy. The second recline position is most comfortable and relaxing for activities such as watching TV, reading and resting. These reclined positions are excellent for patient comfort during blood draws, dialysis, or other care. The third full recline position is ideal for patient transfers to beds, for sleep, and reading. The last Trendelenburg position may only be activated by a caregiver and uses gravity to increase blood flow to the upper body.

Lumex recliners are custom-made for each individual order. The lead time to ship will vary. Please see below for the current production lead time. ***Assembly Required***.

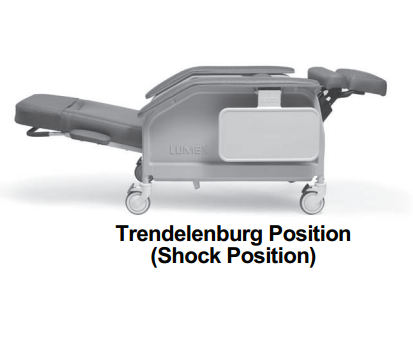

How to Achieve Trendelenburg Positioning

1. Stand behind the chair
2. Locate the bar behind the headrest
3. Press the lever
4. While holding the lever, pull the bar down until you get to the desired position.

How to Remove Stains

• For eye shadow and mascara, grease, and wax-based materials, chocolate, lotions, and felt tip pens, wipe with a damp cloth and then use a 1 to 1 mix of liquid soap and water. Rinse and dry.
• For red lipstick, spray a concentrated cleaner directly onto the spot. Wipe the lipstick off, and then rinse and dry.
• For bodily fluids, feces, oil-based substances, and tar and asphalt, use a mixture of equal parts ammonia and water, or use a one part bleach to four-part water mix. Rinse and dry.
• For all other difficult-to-remove stains, pour lighter fluid onto the spot. Rinse and pat dry. Instead, you can also use a solution of one part water and one part isopropyl alcohol. If that does not work, use undiluted isopropyl alcohol. Rinse and pat dry. *Use one soft cotton cloth to apply the solution. Rub in circles at least ten times. Use a second soft cotton cloth to pat dry. Check your results.

How to Clean Upholstery

• For common dirtiness, use warm water and a mild detergent.
• For more difficult to remove dirt, gently scrub with a soft-bristle brush, using warm water and a mild detergent.
• For ground-in dirt, use a powdered detergent.
• For gum and other sticky substances, scrape off with care, remove the stain with kerosene or lighter fluid.
• For nail polish or polish remover, blot at once.
• For ballpoint pen, use a white cloth with water or mineral oil to pat area.
• For paint, polish, or heel marks, use a white cloth with turpentine or naphtha. Do no use paint remover, thinner, or liquid brush cleaners.

Care and Maintenance

1. vInspect all parts for wear and tear. Replace broken or damaged items.
2. Start with the casters. Make sure there is no damage and that the locking mechanisms are working. Wipe with a clean cloth.
3. Verify that the bolts are tight and that the casters are not loose.
4. Make sure that the lock on the recliner mechanism functions.
5. Clean the lock.
6. Place the recliner into all positions, making sure that it functions smoothly. *Have an assistant sit in the chair during this last check.
7. Wax the vinyl periodically to improve longevity.
8. *You can use a 10% (or less) bleach solution to clean.

How to Remove the Side Panels

1. Push the two buttons on the sides of the frame (near the bottom).
2. Pull away from the frame.
3. Push down.

How to Install the Side Panels

1. Locate the tabs that are under the arms of the chair.
2. Verify the alignment of the side panel.
3. The top edge of the panels should be behind the locking tabs.
4. Push the side panel into the sides of the frame.
5. Verify that both buttons are sticking into the side panel.

How to Adjust Positions - Users

1. Grasp the arms of the chair and push back into the recliner.
2. Stop when you reach the desired position.
3. To raise the back of the recline, grab the arms of the chair, lean forward, and pull.

How to Adjust Positions - Caregiver

1. Stand beside the chair.
2. Grab an arm of the chair with one hand.
3. Push on the bar behind the headrest until you reach the desired position.
4. To raise the back of the chair, stand beside the chair, and grab an arm.
5. Pull up on the bar behind the headrest until the chair reaches the desired position.

Product Features and Benefits

• Four Adjustable Positions to Fit Patient Needs Including the Trendelenburg Position
• Fire-Retardant for Peace of Mind
• Ergonomically Designed for Maximum Comfort, Relaxation and Circulation
• Seat, Footrest and Headrest Provide Full Body Support
• Varied Foam Density for Consistent Support
• Easily Cleaned Upholstery and Frame
• Easy Transport Handle on Chair Back with Grip
• 4 Tente Swivel Casters with Wheel Locks for Easy Transport
• Suited for Individuals up to 290 Pounds Evenly Distributed

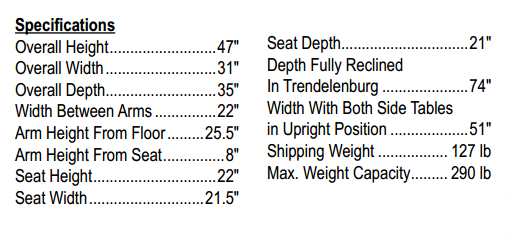

Product Specifications

• Overall Width: 31 Inches
• Overall Height: 47 Inches
• Overall Depth: 35 Inches
• Width Between Arms: 22 Inches
• Arm Height from Floor: 25.5 Inches
• Arm Height from Seat: 8 Inches
• Seat Height: 22 Inches
• Seat Width: 21.5 Inches
• Seat Depth: 21 Inches
• Depth Fully Reclined in Trendelenburg: 74 Inches
• Weight Capacity: 290 lbs.

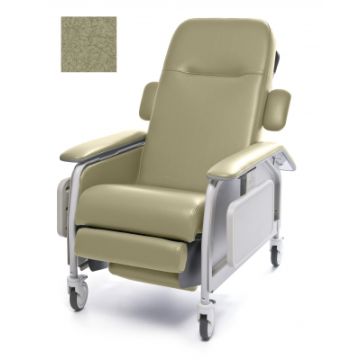

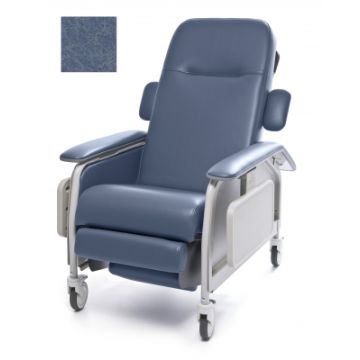

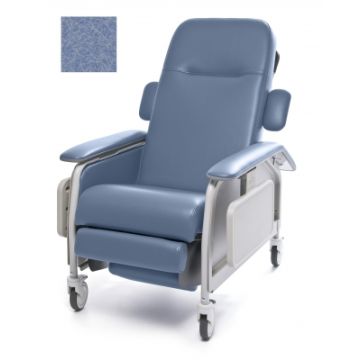

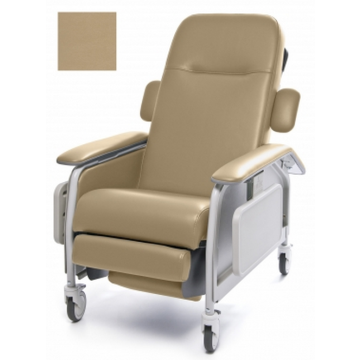

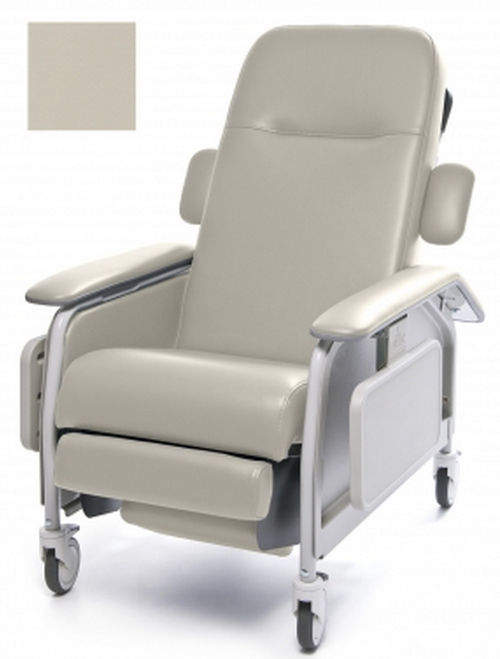

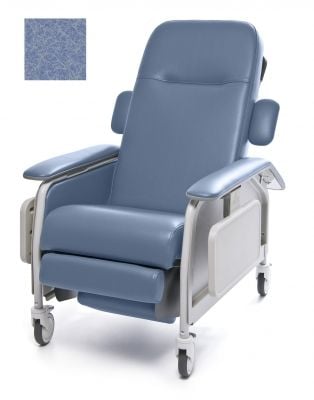

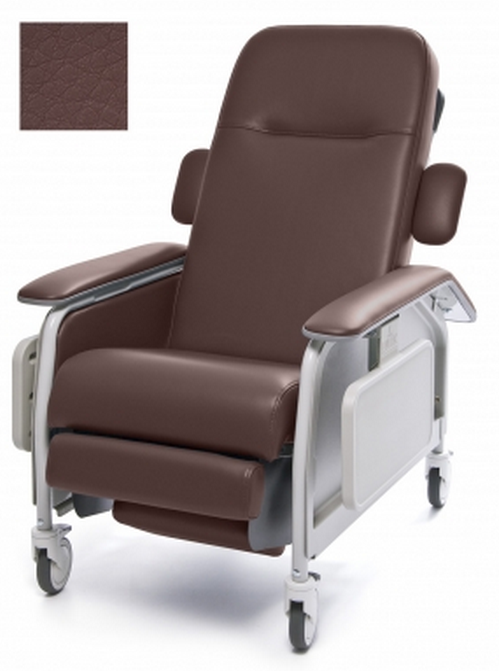

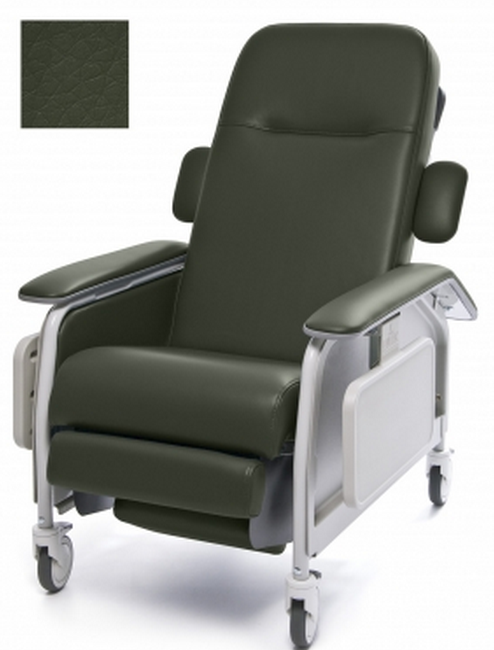

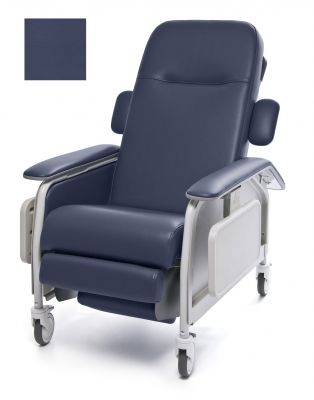

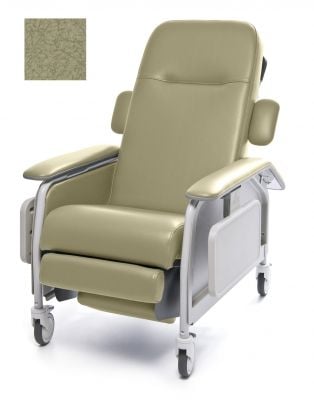

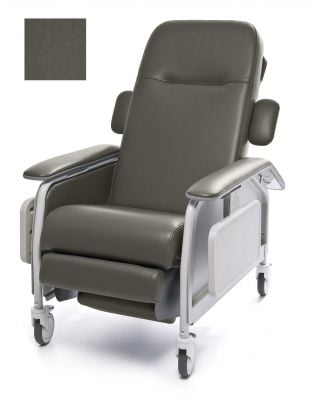

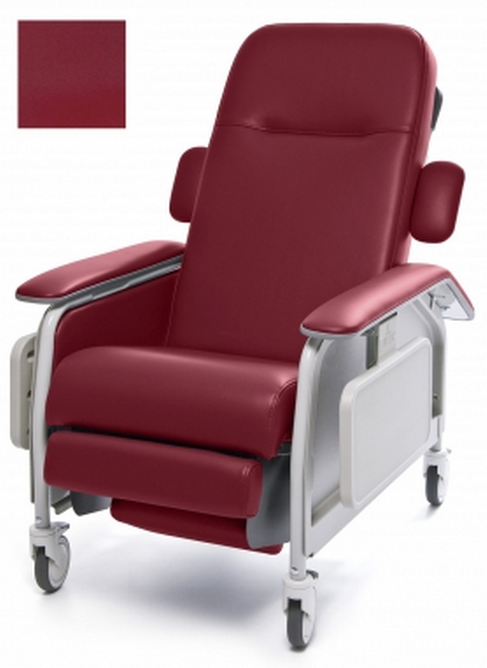

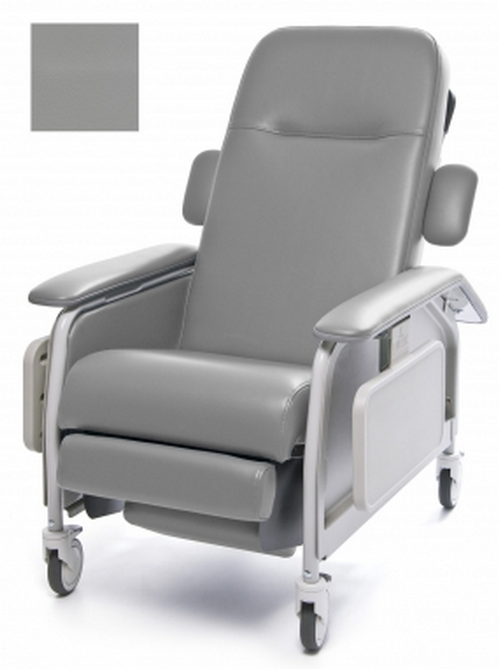

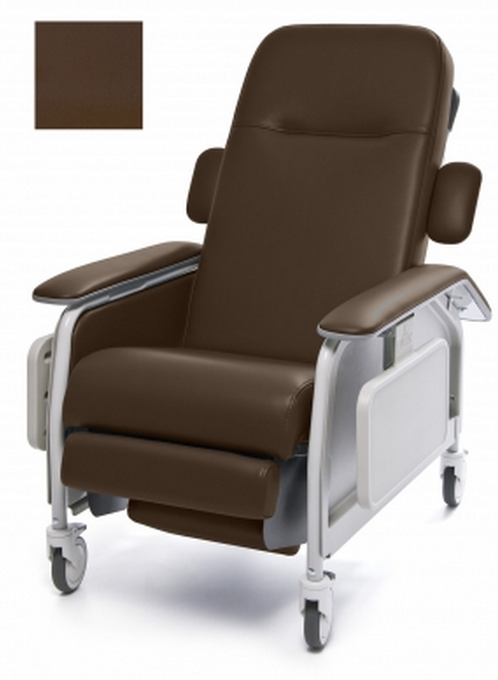

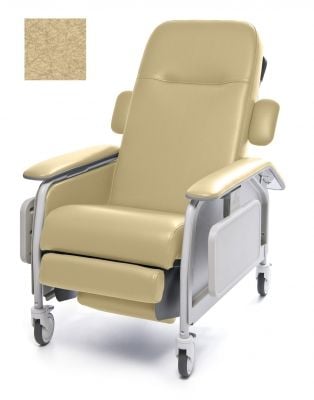

• Colors: Vintage Gold, Warm Taupe, Blue Ridge, Imperial Blue, Royal Blue, Dolce Sand, Burgundy, Moss, Dolce Jet, Indigo, Meteor, Chestnut, Dove, Taupe, Oatmeal, Concrete, Berry, Cobblestone, Gypsum, Ice Blue, Wineberry, Cypress, Blue Jade, Steel Blue.
• Fire-Retardant Grade Meets California Fire Code Requirements
• Made in the USA
• Upholstery Warranty: Limited 1 Year
• Frame Warranty: Limited Lifetime
• Manufacturer: Graham Field
• Product Numbers: FR577RG401, FR577RG409, FR577RG427, FR577RG432, FR577RG454, FR577RG6705, FR577RG6714, FR577RG6717, FR577RG6724, FR577RG6725, FR577RG6727, FR577RG8516, FR577RG8567, FR577RG8584, FR577RG8602, FR577RG8604, FR577RG8615, FR577RG9201, FR577RG9205, FR577RG9207, FR577RG9208, FR577RG9210, FR577RG9212, FR577RG9214.

Clinical Care Geri Chair Recliner Additional Information

• Clinical Care Geri Chair Recliner Brochure protrays the features and benefits of the medical recliner.
• Geri Chair Recliners displays Hip Chairs, Geri-Chairs, Recliners, and Patient Room Seating selections.
• Clinical Care Geri Chair Recliner FR565WG Color Patterns are displayed with color codes.
• FR565WG Clinical Care Recliners Operation Manual contains assembly instructions and care instructions.
• Clinical Care Recliners FR565WG Maintenance Guide outlines maintenance intervals, stain removal and vinyl protection.
• Geri Chair Recliner Specifications provides dimensions and weight capacity for Lumex Geri Chair Recliners.
• Lumex FR565WG Geri Chair Transport letter regarding light use of this recliner for transporting patients room to room.
• Clinical Care 577RG Replacement Parts provides parts list, schematic and part numbers.
• Lumex Clinical Care Geri Chair Recliner Warranty details warranty information from Graham Field.

Meets California Technical Bulletin 133 Standards
