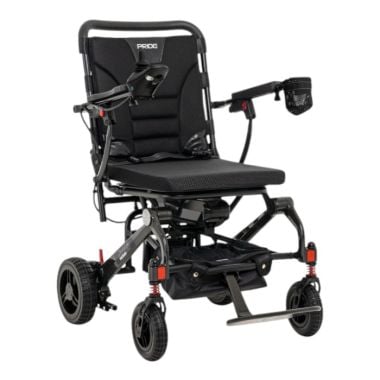

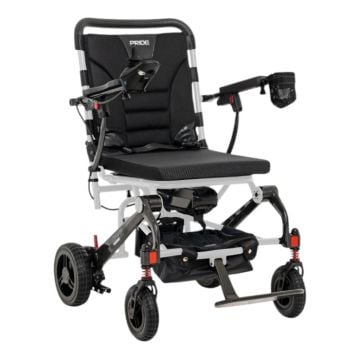

Jazzy Carbon Power Chair

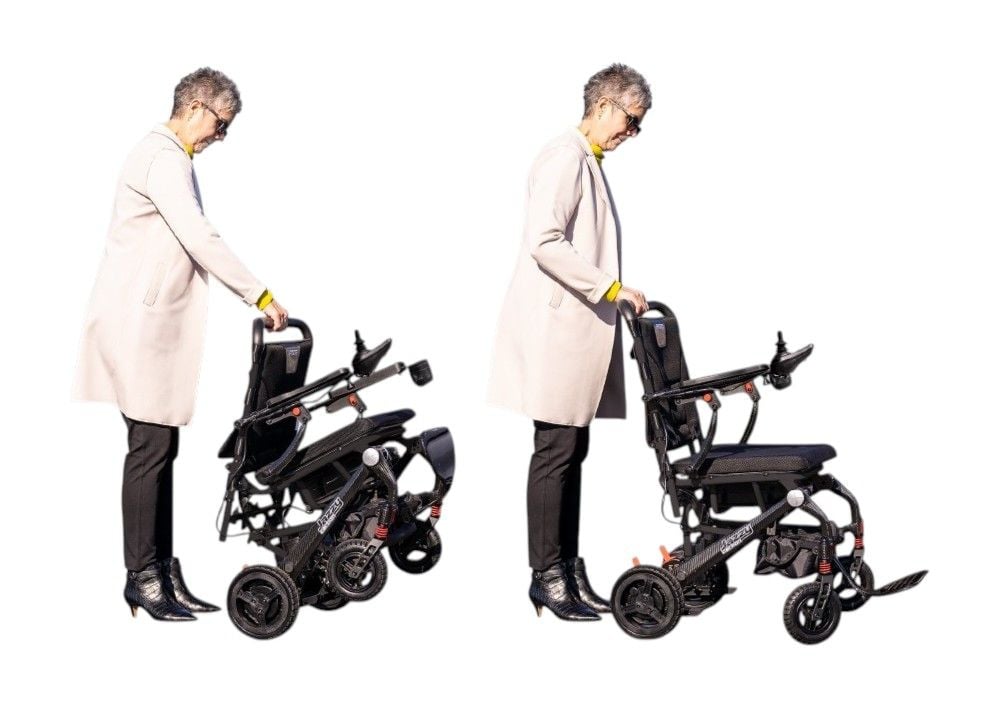

The Jazzy Carbon is a folding power chair with an ultra-lightweight carbon fiber frame and a compact base that folds and unfolds in a few easy steps for transport and storage. A lithium-ion battery powers the chair while keeping carry and stow handling more manageable.

Jazzy Carbon Power Chair includes an airline-compliant lithium battery and a removable joystick with a built-in USB charger for device charging. An airline-compliant lithium battery and quick-fold handling separate this travel power chair from bulkier power wheelchairs.

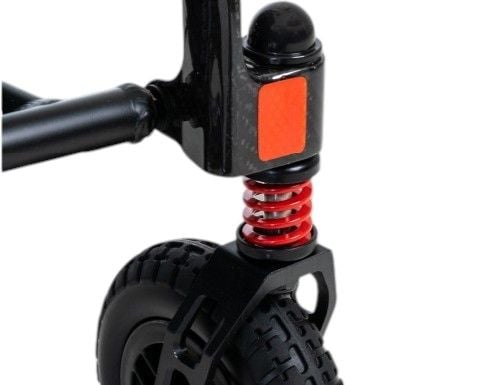

A front suspension system smooths the ride over terrain changes. A padded seat back with a storage pocket and a soft, removable seat cushion adds comfort, while free-wheel levers disengage the brake for caregiver pushing. Under-seat storage and a backrest storage pouch keep essentials organized.

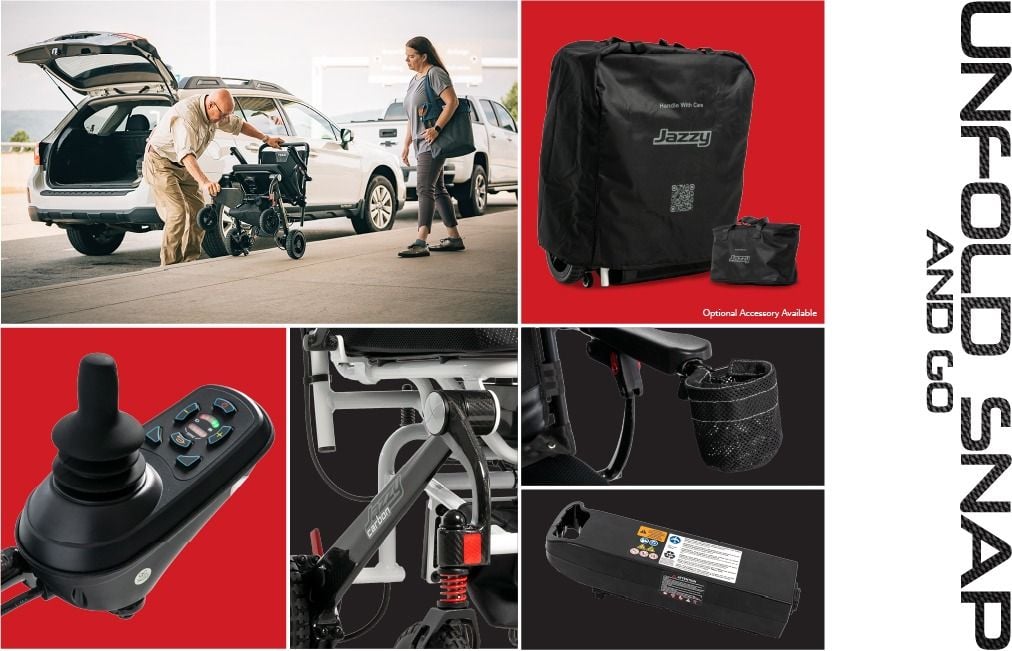

Features and Benefits

• Compact Base Folds In Steps
• Carbon Fiber Frame Portability
• Airline Compliant Lithium Battery
• Removable Joystick With USB Charger
• Front Suspension Provides A Smoother Ride
• Padded Back With Storage Pocket
• Free Wheel Levers Disengage Brake
• Under Seat Storage Included

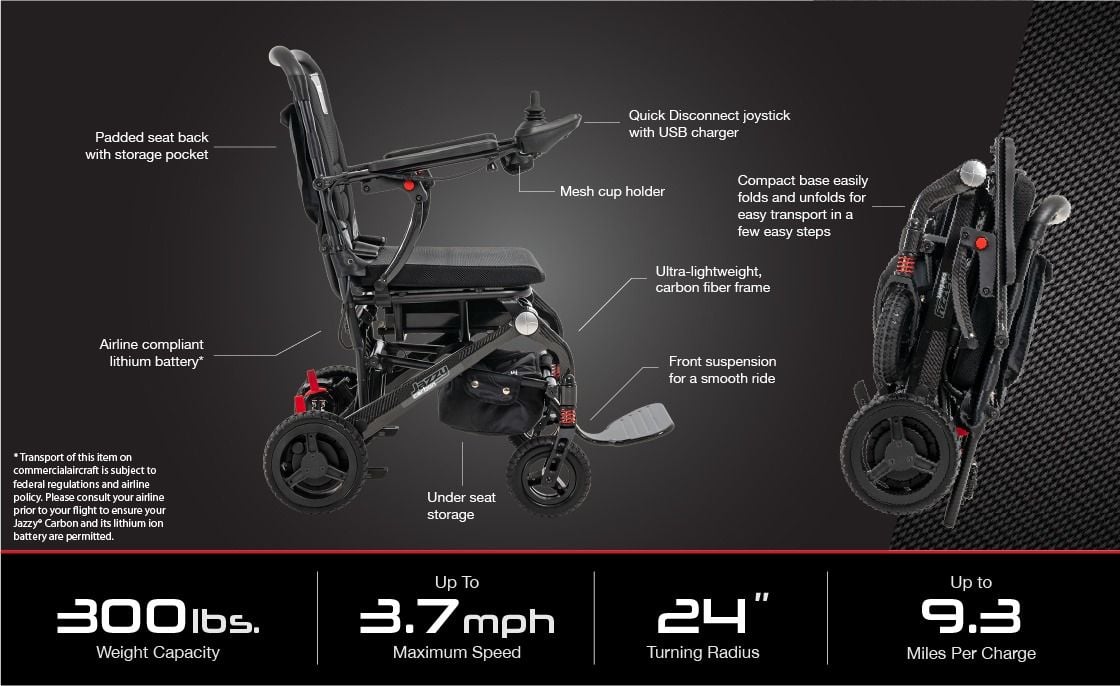

Specifications

• Manufacturer: Pride Mobility
• Overall Dimensions:
• Length: 37 Inches
• Width: 24 Inches

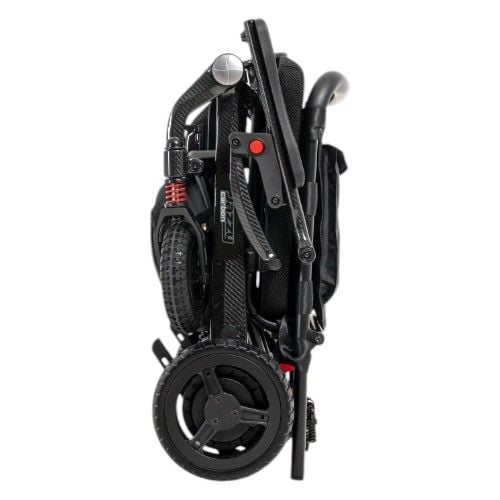

• Folded Dimensions:
• Height: 28.3 Inches
• Width: 24 Inches
• Depth: 12.2 Inches
• Per Charge Range: Up to 9.3 Miles
• Total Weight: 43.6 Pounds (With Batteries)
• Weight Capacity: 300 Pounds
• Battery:
• Requirements: 24V 12AH (288WH) Lithium-Ion
• Charger: 2 Amp, Lithium-Ion Off-Board
• Turning Radius: 24 Inches
• Maximum Speed: 3.7 Miles Per Hour
• Ground Clearance: 2 Inches
• Seat-to-Ground Height: 19 Inches
• Seat-to-Foot Platform Height: 14.5 Inches
• Seat-to-Floor Range: 20.25 Inches with Standard Cushion / 18.75 Inches Without Cushion
• Wheels:
• Drive Wheels: 8.5 Inches Solid
• Front Wheels: 7 Inches

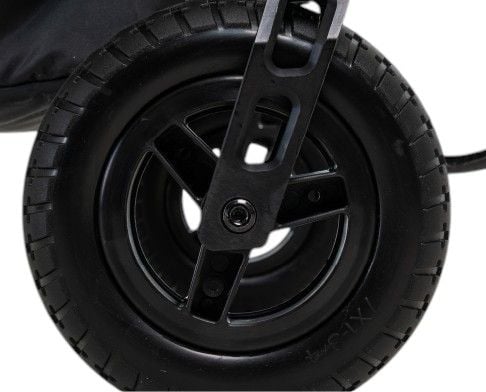

• Rear Wheels: 8.5 Inches
• Component Weights:
• Base: 39.6 Pounds
• Battery: 4 Pounds
• HCPCS Code: K0899
• Application: Power Travel Chair
• Warranty:
• Frame: Lifetime Limited
• Electrical Control/Lever System: 1-Year Limited
• Motor/Drive System: 1-Year Limited
• Bearing Sleeve and Battery: 1-Year Limited
