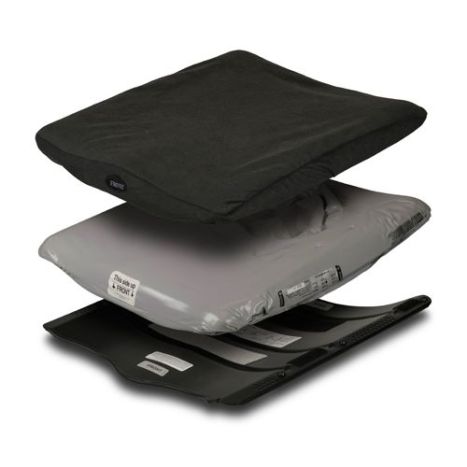

JAY Duo Cushion from Sunrise Medical is a wheelchair cushion system that replaces sling-style upholstery and lowers the overall seat height. This two-part uses a contoured solid base pan on the seat rails to create a level surface, which can make transfers easier and support more stable positioning than a fabric sling seat.
The Duo foam cushion layer attaches to the base with hook-and-loop strips. Mild contouring at the pelvis and thighs supports alignment, and an integrated JAY Flow fluid insert sits under bony areas to help distribute sitting pressure. The fluid can be gently kneaded if firmer pockets form so it returns to a more even consistency.
A stretch suede outer cover protects the cushion components and is removable for washing. Monthly inspection and cleaning are recommended to help maintain performance. The cover is machine washable in warm water and may be hung to dry or tumble dried on low heat. The foam and base pan should not be submerged; instead, surfaces can be wiped with a damp cloth. Two stretch suede covers are supplied so one can remain on the cushion while the other is laundered.
The Duo cushion is available with two base pan options: a standard pan and a narrow pan. The narrow pan is often used with Quickie wheelchairs and requires separate seat rail insert strips to match the frame width and support the pan.
Features and Benefits
- Lower seat height to support transfers and functional reach
- Contoured foam for pelvic and thigh positioning
- JAY Flow fluid insert to help distribute pressure over bony areas
- Stretch suede outer cover that removes for cleaning
- Second cover included for rotation during laundering
- Standard and narrow base pan options for different wheelchair frames
Product Specifications
- Manufacturer: Sunrise Medical
- Quantity: each
- Widths: 16-20 inches
- Depths: 16–18 inches
- Height: approximately 2.5 inches
- Weight: approximately 5.8 lb
- Weight capacity: 250 lb
- Base: contoured solid aluminum seat pan
- Insert strips: sizes for 16–20 inch seat depths
- Inner cover: not applicable
- Outer cover: stretch suede
- Color: black
- HCPCS code: E2603 (cushion), K0108 (seat rail insert strips)
- Warranty: 24 months (manufacturer limitations apply)
- Item numbers (Duo with standard pan base): 705, 706, 776, 778, 700-MJ, 701-MJ, 726, 709
- Item numbers (Duo with narrow pan base): 705Q, 706Q, 776Q, 778Q, 700-Q, 701-Q, 726Q, 709Q
- Item numbers (insert strips): 580026, 580027, 580028, 580029, 580030
