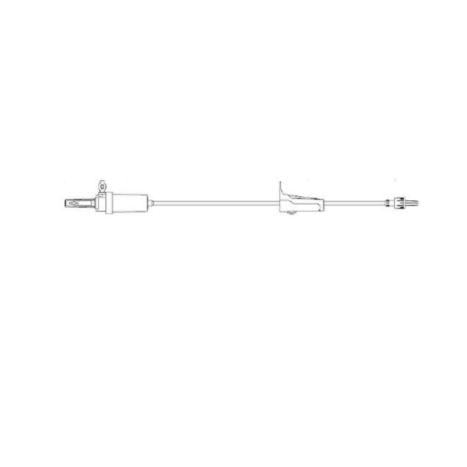

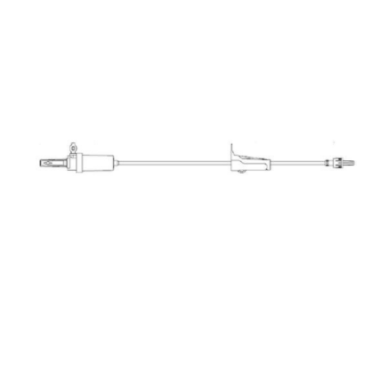

Zyno Medical Primary Administration IV Set for Z-800 Infusion Pump

The Zyno Medical B2 Primary IV Administration Set for Z-800 Series Infusion Pump provides continuous or intermittent transmission of medication or fluids to the patient. This primary administration set is 105 inches long and has a sterile fluid path with a priming volume of 18 mL and drip rate of 20 drops/mL. It's designed with a universal spike with spike tip protector. While the IV is in place the roller clamp regulates the rate of the IV infusion and the slider clamp will completely stop the flow as needed. It's designed with a standardized male luer lock adapter to minimize mis-connections and leak-free connections with an additional needless injection port.

Zyno Medical B2-70070 IV Administration Set are available in a case of 50. You may also be interested in purchasing other IV Supplies manufactured by Zyno Medical such as Secondary Administration Sets that are also compatible with the Z-800 series infusion pump.

Features and Benefits:

• Controls IV Fluid Transmission
• Sterile Fluid Path
• Non-DEHP and Latex-Free
• Universal Spike, Spike Protector and Drip Chamber
• Male Luer-Lock Adapter and Spike Protectors
• Needless Injection Site

Product Specifications:

• Manufacturer: Zyno Medical
• Product Number: B2-70070
• Quantity: Case of 50
• Priming Volume: 18 mL
• Drip Rate: 20 Drops/mL
• Length: 105 Inches
• DEHP-Free: Yes
• Latex-Free: Yes
• Non-Pyrogenic: Yes
• Connector Type: Male Luer Lock
• Port Type: (1) Needless Injection
• Style: Universal Spike, Vented
• Application: Single-Use Primary Administration Set to use with Z-800 Pump
• Compatible w/ Infusion Pumps: Z-800F, Z-800W and Z-800WF
• Sterile Path: Yes
