Invacare Manual Hydraulic Patient Lift Device - 9805 Series | 450lb Capacity

Invacare - Authorized Distributor

Product Highlights

  • Construction is heavy duty steel for long service life
  • Offset mast and boom style for better reach and more leverage
  • Uses 5-inch caster wheels for excellent portability
  • Total is weight is less than 70 pounds
  • Fast Delivery
  • Easy Returns
MPN :
Beige - Each - #9805P
List Price: $629.51 You Save: $69.25 (11%)
$560.26

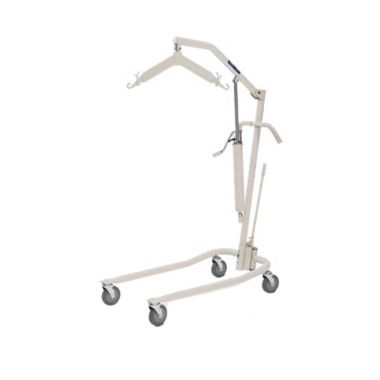

Invacare 9805P, Beige Color

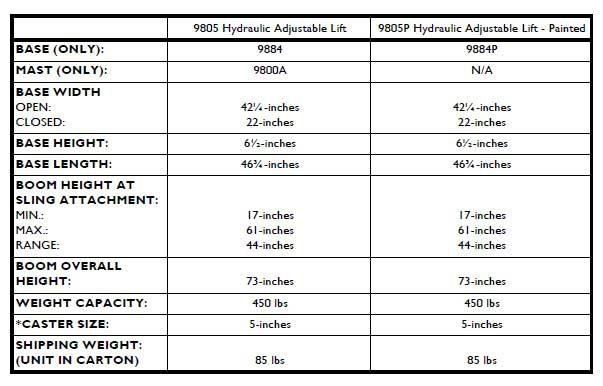

Invacare 9805P, Beige Color Detailed Product Features and Benefits Product Indvidual Parts for Easy Transportation Product Specifications and Comparison Invacare Logo

Description

Invacare 9805P (beige color) and Invcare 9805 (steel) Patient Lifts are a portable patient lift used for hospital mobility. This medical lift is constructed with steel for durability and strength. Manufactured by Invacare, this portable patient lift is available in two options--Chrome or Painted. The color of the painted model is beige to blend well with hospital and homecare settings. Although the construction is steel, it is lightweight at less than 70 pounds. It can be easily disassembled and reassembled for easy transport by automobile. Equipped with low friction, 5-inch caster wheels makes this patient transport device easy to move room to room. Its design helps healthcare providers and attendants avoid lower back injuries during patient transfers. The Hydraulic Lift feature an offset mast and boom style to provide a better lift path and full range of travel.



Chrome and Beige Lift Images



Invacare Portable Hydraulic Patient Lift For Mobility Features and Benefits

  • Lightweight, portable patient lift.
  • Helps prevent patient injuries and caregiver injuries during patient transfers.
  • Comes with a padded swivel bar.
  • Adaptable to many types of patient slings.
  • Pump handle rotates from side to side for added convenience.
  • Low-friction caster wheels.
  • Easy to disassemble and reassemble.
  • 360 degree patient rotation.
  • Similar in function with a Hoyer Lift.



Invacare Painted Portable Hydraulic Patient Lift Features and Information with Images



Assembly Instructions

  • Do not over-tighten the hardware
  • Until lift is fully assembled, do not run lift
  • Remove all parts from packaging

Base, Mast and Boom Assembly

  • There is a notch at the base of the mast that should be aligned with tabs on the base socket
  • Insert mast into socket
  • Turn to ensure notch is locked in place- if it doesn't turn, it means it has locked in place
  • Securely tighten the locking screw into the bottom of the base
  • Bolt and locknut will need to be removed from the top of the mast's mounting bracket
  • Align the holes of the boom and mast. Insert the bolt through the holes and secure in place
  • *Boom should be able to easily pivot even with everything securely tightened. If bolt is not aligned properly, it will seem to need excessive force





Handle of Base Shifter Attachment

  • Place handle of base shifter into cam lock assembly
  • The holes of each piece should line up, adjust as needed
  • Tighten the thumbscrew keeping both pieces in place

Swivel Bar Attachment

  • Push the pin and washers completely up through the swivel bar from the base
  • Align holes of both the swivel bar and boom arm, securing with the provided shoulder screw
Swivel Bar Attachment

How to Operate the Lift

  • Do not exceed weight limit of 450 lbs
  • Take care to ensure the comfort of the patient as much as possible
  • Make sure you will not need to transfer over uneven surfaces
  • Legs of the lift must be opened as wide as possible before lifting
  • To raise the lift, the control valve needs to be closed (facing the pump handle). This allows the pump to move up and down, raising the lift
  • To lower the patient, the control handle must be open (away from the pump handle), which allows the lift to lower. The downward motion can be slowed by leaving the control handle in varying increments towards the closed position

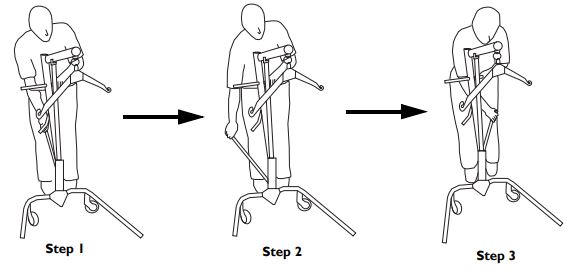

Leg Adjustment
Base Stabilization

Care and Maintenance

  • Inspect hooks and mounting brackets every 3 months and replace immediately when they become worn
  • Do not attempt to open pump- if there is an issue with the pump, contact the manufacturer
  • If an excess of oil accumulations around the piston, wipe away the oil with a tissue
  • Swivel bar and eye of boom should be checked after one year and every 6 months after- parts must be replaced with signs of wear
  • Check casters and axle bolts every 6 months
  • Once per year, use auto lubricant to lightly grease the casters for smoothly rolling wheels
  • Other pivot points should also receive lubricant, including the mounting bracket for the swivel bar, boom, and mast; as well as the boom and base to mast mount

Warnings and Precautions

  • Initial set up should be completed by a qualified technician
  • Make sure you have read and understand the manual before operating the lift
  • Use only Invacare products and accessories
  • Not for transportation over distance
  • Do not exceed weight limit of 450 lbs
  • Casters should remain unlocked during lifting in order to stabilize
  • Do not attempt to operate the lift if only partially assembled
  • Transfers should be made only with approval from a physician, nurse or trained medical assistant
  • Lifts should be practiced with a capable individual and with proper supervision before operating lift
  • Legs must be open as wide as possible for stability while raising
  • Shifter handle must be vertical and lock pin properly seated before use
  • Patient's arms should be inside the sling at all times
  • After raising patient a few inches, double check attachment of the sling at all points
  • Before lowering to a wheelchair, ensure wheels of the chair are in locked position

Manuals and Documents



logotype



Product Videos

Full Body Lifts - Full Video (23:39 minutes)


Full Body Lifts - Introduction (8:16 minutes)


Wheelchair to Bed Instructions (5:47 minutes)


Additional Information

More Information
Manufacturer Invacare
Proposition 65 warning for Californians WARNING: CANCER AND REPRODUCTIVE HARM - www.P65Warnings.ca.gov
