Interlink Needleless IV Access Cannula

Interlink® Needleless IV Access System provides reliability, durability and performance for medical IV flush and IV push applications. Designed to accommodate all types of IV Therapy, this IV Access System is the leader in needleless IV access technology. The Interlink Needleless IV from BD Becton Dickinson offers consistent, safe and reliable IV catheter service for patients. The Interlink Needleless IV Access System is designed to accommodate various types of IV therapy and various forms of drug delivery. The Interlink System is designed to accommodate various forms of code drugs, so that the right drug can be delivered to the right patient, at the right time. Over time, the Interlink Needleless IV Access System has provided proven reliability and durability. Testing has proven that the Interlink injection site offers consistent, reliable resealing. Even with repeated use, resealing is consistently reliable when the BD Blunt Plastic Cannula or Interlink Cannula is employed. Clinical testing shows that the Interlink injection site can withstand up to 200 punctures without exhibiting leakage when using the BD Blunt Plastic Cannula, and can accommodate practices that include code drugs and IV insulin delivery.

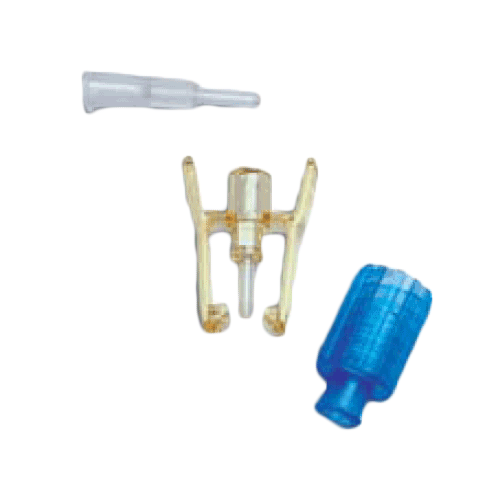

Interlink Needleless IV Access System consists of three components: Blunt Plastic Cannula, Twinpak™ Cannula, and Interlink Lever Lock Cannula.

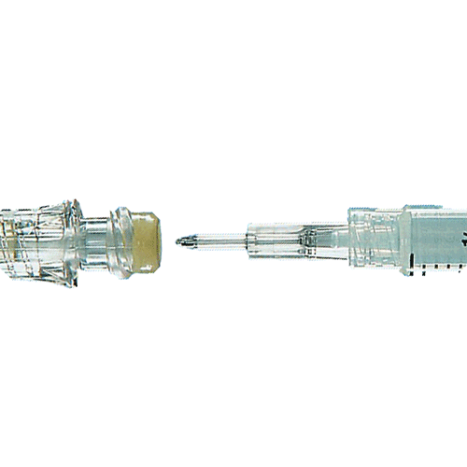

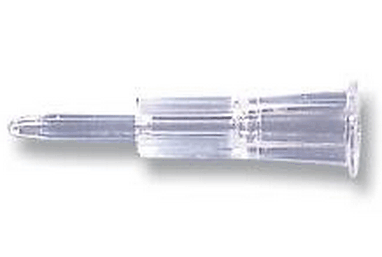

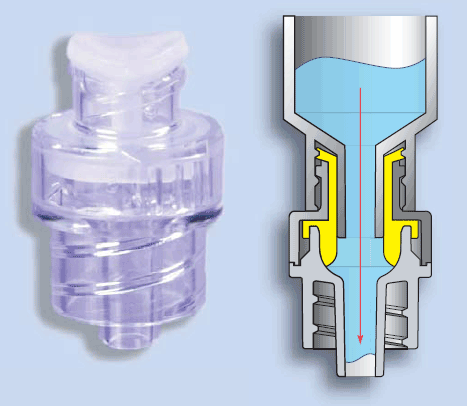

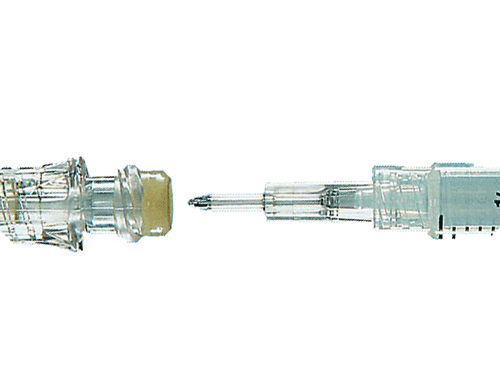

Blunt Plastic Cannula is an integral component of the Interlink System. Its dual-port design allows for consistent and efficient turbulent flushing. This technology-driven turbulence allows healthcare workers to rely on BD engineering, removing the pressure of time-consuming, technique-generated turbulent flushing. Becton Dickinson Blunt Plastic Cannula is a universal cannula and can be used with all types of split-septum IV injection sites and vials designed for needleless access. Blunt Plastic Cannula provides simplified access to the Interlink injection site with smoother insertion, reduced penetration force, and greater fluid dispersion. Designed for improved performance, the Blunt Plastic Cannula enhances the Interlink IV Access System. A study conducted by Becton Dickinson demonstrates the new Blunt Plastic Cannula flushes pre–slit injection sites more effectively than competitive cannula. Flushing effectiveness was assessed by measuring removal of red blood cells from the injection sites.

Twinpak Dual Cannula is also a universal IV access device, offering two methods of performance over traditional stand-alone devices. It features two cannula in one shield; one red hub cannula for syringe filling and one clear, blunt plastic cannula for safe split-septum access. The BD Twinpak helps to streamline IV workflow and is designed to reduce the number of individual pieces. Twinpak Dual Cannula saves time and reduces costs.

BD Interlink Needleless IV Access System Features & Benefits

• Center–Point design with tapered tip reduces insertion forces by 30% from Interlink Syringe Cannula.
• Clear material for enhanced visualization.
• Dual Side Ports that create turbulence for thorough flushing of injection sites.
• Universal compatibility with Baxter Interlink, Abbott LifeShield, and McGaw SafeLine injection sites as well as vials designed for needleless access.
• Offers consistently low levels of negative fluid displacement or catheter reflux, ensuring catheter pathways are kept clear.
• Blunt Plastic Cannula flushes pre-slit injection sites more effectively than competitive cannulas.
• No significant hemolysis was exhibited during blood drawing practices when using the Interlink System with the BD Blunt Plastic Cannula.

BD Becton Dickinson Interlink Needleless IV Access Specifications

• BD Interlink Needleless IB Access Product Numbers: 303345, 303346, 303347, 303348, 303365, 303366, 303367, 303369, 303370, 303380, 303390, 303391, 303392, 303393, 303401, 303403, 303405.
• Blunt Plastic Cannula
• Cannula Size Options: 17 Gauge,
• Syringe Size Options: 3 mL, 5 mL, 10 mL.
• Connector Type: Interlink.
• Application: IV Flush, IV Push.
• Safety Feature: Needleless system.
• Sterile (Cobalt Radiation).
• Latex free.
• Brand: BD Interlink.
• Manufacturer: Becton Dickinson.
• HCPCS Code: A4649.
• Twinpak Dual Cannula
• Cannula Size: 17 Gauge Blunt Plastic.
• Needle Size: 20 Gauge Steel Cannula Fill Needle.
• Syringe Size Options: 3 mL, 5 mL, 10 mL.
• Connector Type: Interlink.
• Application: IV Flush, IV Push.
• Safety Feature: Needleless system.
• Sterile (Cobalt Radiation).
• Latex free.
• Brand: BD Interlink.
• Manufacturer: Becton Dickinson.
• HCPCS Code: A4649.
• Interlink Locking Cannula
• Cannula Size: 15 Gauge.
• Connector Type: Interlink.
• Cannula Type Options: Y Lock, Syringe (bare), Vial Cannula, Threaded Lock, Lever Lock.
• Application: IV Connection.
• Safety Feature: Needleless system.
• Sterile (Cobalt Radiation).
• Latex free.
• Brand: BD Interlink.
• Manufacturer: Becton Dickinson.
• HCPCS Code: A4649.
