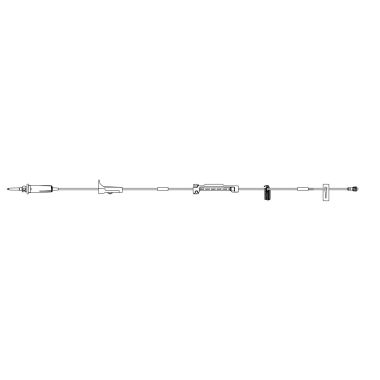

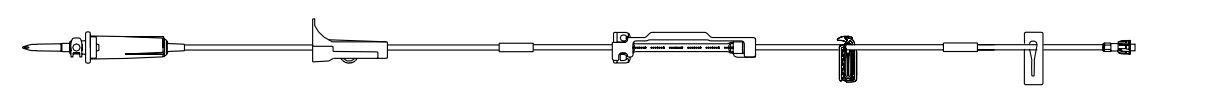

B. Braun Infusomat Space Pump Sets without Injection Sites

The B. Braun Infusomat Space Pump IV Administration Set is an administration set for use with an Infusomat pump machine. The administration IV line set has features and abilities that make it unique in its own category. With a universal spike, the administration set can be used with a variety of infusion and IV bags. The universal access spike fits most solution bags on the market and allows it to be used across most platforms with minimal cause for changing.

The Braun Infusomat Space Pump IV Set with Roller Clamp and Spin-Lock allows for complete precision control of the rate of flow of medication being administered. The roller clamp allows a steady flow of medication with the opportunity to adjust accordingly to the patient's medication requirements. The Spin-Lock connector keeps the administration set secured in place without risk of accidental disconnection, which can have devastating results. An included side clamp stops the flow of medication by sliding the clamp from the large opening to the more narrow end.

The Braun 10 Foot Space Pump IV Administration Set is long enough to accommodate most patients with their pump machines. The additional length of the administration set means there is a priming volume you need to note. The included priming volume for this administration set is 22 milliliters. Properly measuring for priming volume allows the patient to receive the correct medication dosage and account for the lapse in the administration set.

Product Features and Benefits

• Universal Spike
• Includes a Roller Clamp for Controlled Flow
• To Be Used with Pump Machine
• 122-Inch Tubing
• 22-Milliliter Priming Volume
• Spin-Lock Connection
• Not Made with DEHP or Natural Rubber Latex

Product Specifications

• Manufacturer: B. Braun
• Brand: Infusomat Space Pump
• Product Number: 362035
• Tubing Length: 122 Inches
• Priming Volume: 22 Milliliters
• Connector Type: Spin-Lock Connector
• Drip Rate: 15 Drops
• Flow Control Type: Roller Clamp, Slide Clamp
• Port Type: Without Injection Sites
• Style: Universal Spike, Free-Flow Protection Clamp
• Administration Method: Pump
• Application: Pump Set

Additional Documents

•    Product Quick Reference Sheet
