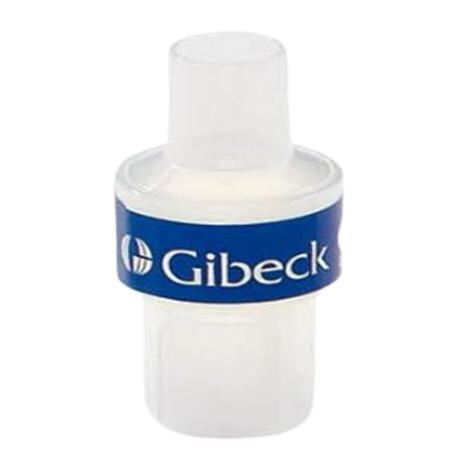

Gibeck Humid-Vent 1 HME - Straight without Port

Gibeck Humid-Vent 1 HME (Teleflex 11112), without CO2 port, is the original heat and moisture exchanger by Teleflex Medical for the purpose of administering anesthesia for mechanically ventilated patients with a tracheostomy tube. This Heat & Moisture Exchanger is also used in emergency care and in ICUs when a patient's upper airway is bypassed by a trach tube. The design is straight and offers low resistance to flow and is recommended for tidal volumes between 50 to 600 mL. It's bacteriostatic with only 10 mL of dead space to prevent infection while offering high humidification. This humidification keeps the airway moist while keeping secretions thick in order to not obstruct the trach tube.

Standard Humid-Vent 1 Heat & Moisture Exchangers are available individually or in a case of 50.

Features and Benefits

• Low Dead Space
• Hygroscopic, Bacteriostatic Microwell Paper
• Keeps Airway Moist and Mucus Secretions Thick
• Straight, Low Resistance to Flow
• Bacteriostatic to Prevent Infection in Airway

Gibeck Humid-Vent Filter Compact Bench Testing

Teleflex filters have undergone bench testing with third-party laboratories for their bacterial and viral filtration efficiency. No Teleflex filters have been tested for their filtration efficiency against the novel coronavirus. The viruses and other paragens that the filter has been vaildated for are:

• Serratia Marcescens (bacteria size .8 microns)
• Staphylococcus Aureus (bacteria size .8 microns)
• Myobacterium Tuberculosis (bacteria size .3-.6 microns)
• Phi X 174 Phage (virus size .027 microns)
• Virus sizes smaller than HIV and Hepatitis C
• Bacterial Efficiency 99.9999 percent, Viral Efficiency 99.99 percent

Product Specifications

• Manufacturer: Teleflex Medical
• Brand: Gibeck
• Product Number: 11112
• Quantity: Each, Case of 50
• Connection: Without Port
• Dead Space: 10 mL
• Tidal Volume: 50-600 mL
• Moisture Output: 30.5, Vt = 0.2L
• Resistance: 0.3, 20 LPM
• Weight: 9.4 Grams
• Latex-Free: Yes
• Sterile: No
• Application: Heat and Moisture Exchanger
• HCPCS Code: A4483

Manuals and Documents

•    Catalog Page
•    Brochure
