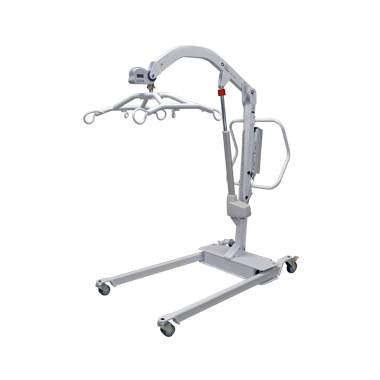

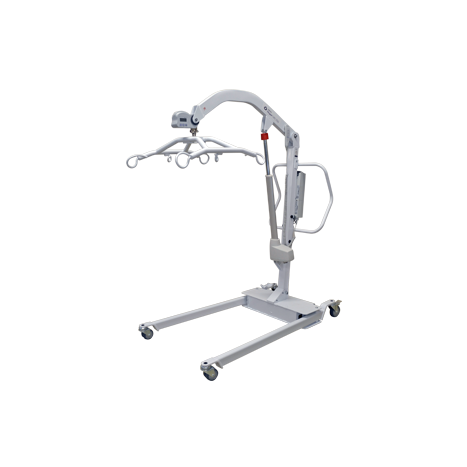

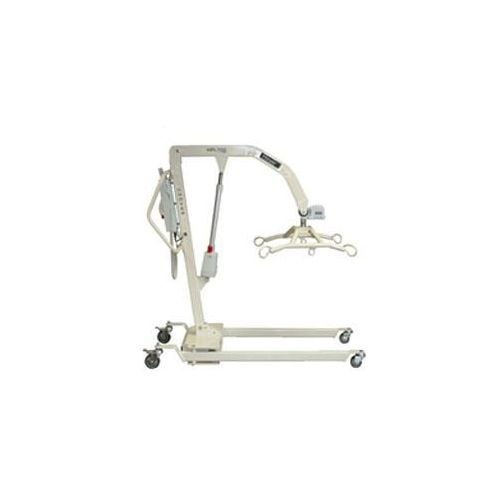

Hoyer Classics HPL700 Patient Lift, by Joerns Healthcare, is a uniquely designed electronically operated bariatric patient lift designed for the safe lifting of heavier patients. It is both sturdy and robust, with a safe working load rating of 700 lbs. The HPL700 has been designed to be configured with or without a weigh scale. The weigh scale is seamlessly integrated with a digital display on both sides and user-friendly controls.
Hoyer Classics HPL700 Patient Lift features a 6-point cradle sling with a large, open cradle that results in less discomfort to the patient caused by pinching and squeezing. The powered base allows legs to be opened and closed to enable access around armchairs, wheelchairs and similar obstacles without bending or twisting. The HPL700 comes standard with two batteries and a charging station that offers both visual and audible low-battery indications, as well as an optional scale that allows the caregiver to adjust the position of the display for easier viewing. Simple, intuitive controls provide the resident's weight in pounds or kilograms.
Vitality Medical carries other patient lifts, such as the Heavy Duty Bariatric Electric Patient Lift with Six Point Cradle by Drive Medical.
Features and Benefits:
- 6-Point Cradle Design Minimizes Bariatric Patient Discomfort.
- Powered Base Allows For Easy Opening and Closing of Legs.
- Power Source Includes Two Batteries and a Charging Station.
- Optional Scale Allows the Caregiver to Adjust the Position of the Display For Easier Viewing.
- Oversized Handles Offer Various Grip Choices While Encouraging Proper Body Mechanics.
- Floor Pick-Up Capability.
- Emergency Stop, Power Manual Lowering.
- Utilizes HoyerPro Bariatric Sling.
- 700 lb. Patient Capacity.
Product Specifications:
- Manufacturer: Joerns Healthcare
- Safe Working Load: 700 lbs
- Maximum Overall Length: 56 Inches
- Minimum Overall Length: 55 Inches
- Maximum Overall Height: 81 Inches
- Minimum Overall Height: 57.75 Inches
- Height at Maximum Reach: 46.5 Inches
- Reach at Maximum Height: 28.5 Inches
- Reach at Minimum Height: 27 Inches
- Maximum Reach: 37.75 Inches
- Turning Radius: 62 Inches
- Legs Open - External Width: 46.25 Inches
- Legs Open - Internal Width: 42.25 Inches
- Legs Closed - External Width: 27.5 Inches
- Legs Closed - Internal Width: 23.5 Inches
- Overall Height of Legs: 4.5 Inches
- Ground Clearance: 0.625 Inches
- Front Twin Casters: 3 Inches
- Rear Braked Castes: 4 Inches
- Product Number: HPL700
