Who Uses This Product? Pediatric healthcare professionals when examining newborns, infants, and toddlers.
Why Give It a Try? This Health O Meter pediatric mechanical beam scale with seat 1524kl ensures the child is safe and secure while obtaining precise weight measurements.
Â

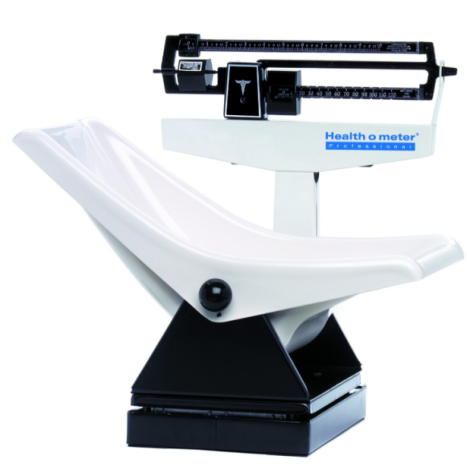

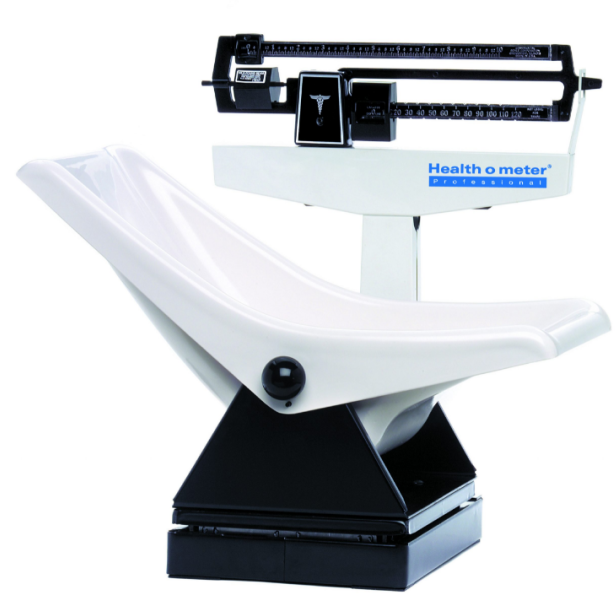

Health O Meter Mechanical Scale Pediatric Version 1524KL Overview
Health O Meter 1524KL Mechanical Scale Pediatric Version has a contoured seat scale to securely cradle the infant while obtaining their weight. The comfortable scale pediatric seat is mounted to a sturdy heavy-duty steel base, adding safety and reducing movement while the child is weighed. This mechanical scale, by Health O Meter comes factory calibrated for accuracy. The rotating poise bar captures the weight in pounds or kilograms and slides easily, making it easy to operate the scale with one hand while having the other hand close to the baby. The Health O Meter Pediatric Scale 1524kl is made with ABS plastic so that it's sanitary and easy to clean in between each patient. Health O Meter also carries a wide variety of other scales.
Â
Scale Contents
Â
- Pillar/Beam
- Heavy-Duty Steel Base
- Child Seat and Bracket
- Screws, Nuts, Wrench
Product Features and Benefits
- Engraved Numerals Are Easy To Read
- Precise Weight Measurements
- Designed to Withstand Frequent Use
- Seat Limits Infant Movement
- Easy-To-Clean ABS Plastic Seat
- Durable Steel Base
- 2-Year Warranty
- Factory Calibrated
- Easy To Assemble
Â
Frequently Asked Questions (FAQs)
The Health O Meter Mechanical Pediatric Scale is warranted from material defects or workmanship making the scale not function properly.
It does not cover normal wear and tear, misuse, damage due to transit, and unauthorized alterations.
If the Health O Meter scale 1524kl is jolted out of place, loosen the lock screw at the bottom of the base and use the hexagon socket wrench to increase or decrease the weight. One sixteenth-inch movement will change the weight 1/4 pound per 30 pounds.
Acrylonitrile butadiene styrene (ABS) is impact-resistant and strong to hold up to regular use. The baby scale is also chemical resistant to clean and sanitize regularly.
Â
Product Specifications
- Manufacturer: Health O Meter
- Product Number: 1524KL
- Overall Dimensions
- Width: 24 1/2 Inches
- Height: 22 1/2 Inches
- Depth: 21 Inches
- Seat Dimensions
- Width: 24 1/2 Inches
- Height: 18 1/2 Inches
- Depth: 14 Inches
- Weight Capacity: 130 Pounds, 65 Kilograms
- Graduation: 1 Ounce
- Weight Measurement: Pounds, Kilograms
- Product Weight: 36 Pounds
- Shipping Weight: 39.5 Pounds
- Operation: Mechanical Scale
- Materials: Acrylonitrile Butadiene Styrene, Alloy Steel
- Warranty: 2 Years
Â
Cautions
- Make sure the scale is on a level surface when weighing patient.
- The scale should not have significant rocking. Check the leveling if this occurs.
- Do not leave a child unattended.
Â
Manuals and Documents
Instruction Manual contains assembly and operating instructions.
