Who Uses the Easy On-PC Spirometry System? Healthcare professionals who perform spirometry testing on patients and want high-quality, easily readable, accurate results.
Why They Love It: The Easy On digital spirometer offers simple EMR connections via USB to test and transmit data and results to patient records. The software works with Windows OS to generate customized reports for viewing tests, parameters, tables, or graphs.
Resources
EasyOne Connect Software Download
30 Day Returns
- 30 day return policy
- Items must be unopened
For more info view the return policy
Fast Shipping & Handling Most orders are processed and shipped within 24 hours!

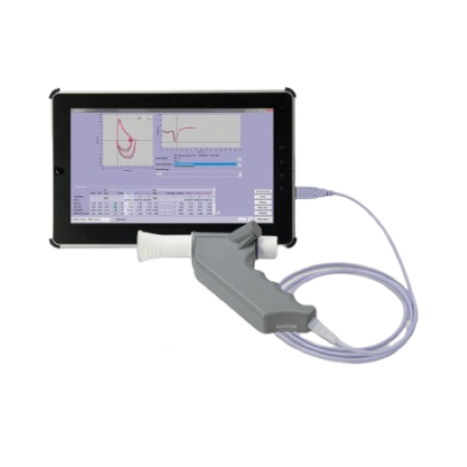

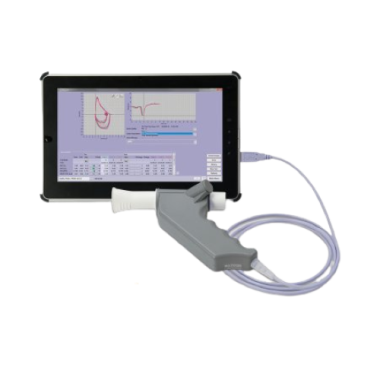

Easy On-PC Spirometry System Overview
The Easy On-PC System is a clinically proven solution for accurate, reliable spirometry test results. With patented TrueFlow technology and no need for calibration, Easy On tests offer fast readings with interactive software displays to deliver real-time graphs and animated incentive screens to encourage patients to achieve their best results. Easy-On is shock and vibration resistant and works in a diverse range of environments. The durable mouthpiece uses disposable spirettes for convenient, sanitary testing.
Vitality Medical offers a variety of spirometers Spirometry Supplies. Get reliable results and buy an Easy On-PC System today!
Key Features
Long-Lasting, Rechargeable Batteries
The system's reliable and rechargeable batteries last for up to 400 spirometry tests.
High-Quality Mouthpiece
The uniquely designed mouthpiece uses disposable spirette attachments and a standard USB connection, compatible with virtually any device.
Animated Displays
Real-time animated graphs and incentive screens enhance the user experience.

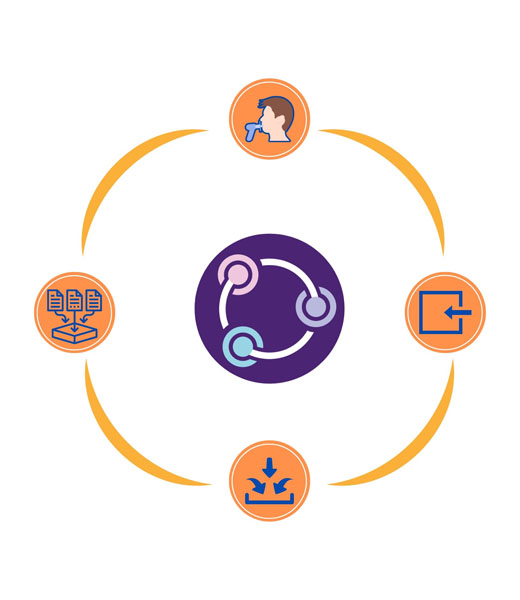

Powered by EasyOne Connect
EasyOne software includes highly advanced spirometry functionality, importing options, large selections of predicted sets, and result interpretation.
Product Information
Additional Features
- Simplified Testing for Easy Interpretation
- Flexible Settings Permit Individualized, Custom Solutions
- Meets Worldwide Compliance Standards, Assuring Highest Quality
- Disposable Spirettes to Avoid Contamination Between Patients
- Automated Quality Feedback and Interpretation for Fast, Reliable, and Dependable Results
- Windows OS Compatible To Use System With PC, Laptop, or Tablet
TrueFlow Technology
TrueFlow Technology lacks analog components like turbines and bodyplethysmographs, which effectively eliminates flow measurement problems associated with analog instruments. It is the only technology proven to not require calibration throughout its lifetime. The basic measurement principle of this revolutionary technology uses ultrasound signals sent diagonally across the flow path; the signal that goes with the flow is accelerated, while the signal going against the flow is decelerated. The difference between the two transit times represents the speed of the flow, and environmental factors cancel each other out in the process. The flow tube and spirette, manufactured under high, strict quality control standards, are critical to the system, as they define the surface area of the flow. More detailed information can be found on the ndd technology page.
Product Specifications
- Manufacturer: McKesson
- Product Number: 796
- Brand: McKesson LUMEON Easy On-PC
- Application: Spirometer System
- Display Type: Digital
- Flow Rate: <1.5 cm H20 L/s @ 14 L/s
- Indicator: No
- Mouthpiece: Disposable
- User: Adult/Child
- Latex Indicator: Not Made With Natural Rubber Latex
- Valve Type: One Way
- Country of Origin: Switzerland
- Battery: Lithium-Ion Rechargeable
Additional Resources
Product Details
Software Specifications
System Requirements
- Hard Disk Capacity: Installation/ System - 1 GB, Data - up to 4 GB
- RAM: 2 GB
- Operating System: Windows 7 SP1, Windows 8 and 8.1(32 and 64 bit), Windows 10 (32 and 64 Bit), Windows 11
Standards & Recommendations
- Quality, Medical Devices & Electrical: EN ISO 13485, EN ISO 14971, EN 62366, EN 62304, EN ISO 26782, EN ISO 23747, IEC 60601-1, IEC 60601-1-2, ISO 10993-1
- FDA: 510(k) market clearance
- MDR (EU) 2017/745 93/42/EEC: CE marked
- Associations & Institutions: ATS/ERS 2019 and 2005, NIOSH/ OSHA, SSA Disability
Technical
- Printing Options: Direct to printer or over network via EasyOne Connect
- Data Management: EasyOne Connect
- Interface: HL7, XML, GDT
- Age Range: Spirometry > 4 years
- Device Classification: Type BF applied part
- Operating Conditions: Temp 0 - 40 °C/32 - 104 °F, Rel. Humidity 5 - 95 %, Atmospheric Pressure 620 - 1060 hPA
Flow/Volume Sensor
- Type: Ultrasonic Transit Time
- Flow Range: ± 16 l/s
- Flow Resolution: 4 ml/s
- Flow Accuracy (Except PEF): ± 2% or 0.020 l/s
- Volume Resolution: 1 ml
- Volume Accuracy: ± 2% or 0.050 l
- PEF Accuracy: ± 5% or 0.200 l/s
- MVV Accuracy: ± 5% or 5 l/min
- Resistance: ~ 0.3 cm H2O/l/s at 16 l/s
- Sample Rate: 400 Hz
Frequently Asked Questions
Is a PC, laptop, or tablet included with the system?
No, a laptop, PC, or tablet must be purchased separately. The device specifications can be found in the Requirements PC/Laptop section under Specifications on the Easy on-PC page.
Can patient data and test results be accessed across multiple devices within a clinic?
Yes, EasyOne Connect offers an optional centralized patient database feature, enabling seamless access to patient orders and results across all instances of the software, irrespective of physical location. Customers can leverage their on-premise SQL servers or MS Azure environments to ensure data accessibility and consistency.
Do I need to calibrate the Easy On-PC Spirometer?
No. All EasyOne products are designed to not require calibration. ndd’s patented TrueFlow technology is the only technology proven to remain stable over its lifetime. A number of independent papers have been published that confirm this long-term stability.
For organizations like NIOSH/OSHA or Social Security/Disability, where calibration checks are required, ndd offers a 3-Liter calibration syringe. A calibration check (cal-check) is not to be confused with calibration. A cal-check simply validates that the device is within calibration limits. Unlike calibration, a cal-check does not adjust the calibration values.
Can I connect the spirometer to my EMR system?
Yes, ndd’s products are all completely HL7 compatible through EasyOne Connect, the free companion PC software, enabling connectivity to virtually all EMRs. If your EMR system is not yet supported, ndd Medical Technologies is happy to help configure an interface for your particular EMR system. They are constantly working to expand their library of dedicated integrations. For more information on connectivity with your particular EMR system, contact ndd support or submit an EMR integration request.
