Drive Medical Oxygen Regulator CGA540

The Drive Oxygen Regulator CGA 540 with easy-to-operate single selector knob, features a protective contents gauge and built-in pressure relief valve for optimum user safety. It's designed to fit a CGA 540 valve — a commonly used valve type for medical oxygen cylinder tanks. Users of CGA 870 Oxygen Regulator will enjoy a lightweight, durable design with the added bonus of an attractive green finish.

Oxygen Flow Control Regulators are designed to administer oxygen to patients who need increased O2 levels to improve their breathing. Oxygen Flow Control Regulators lower oxygen pressure from a cylinder to levels that are safe for patients to use. Drive Medical Regulators are built to precise standards and undergo rigorous inspection before shipment. This regulator meets or exceeds accuracy standards as set by ASTM, American National and CGA, and is UL approved. Drive Medical is confident in the quality of materials and workmanship of their products, and as a result, provide their regulators with a 3-year warranty.

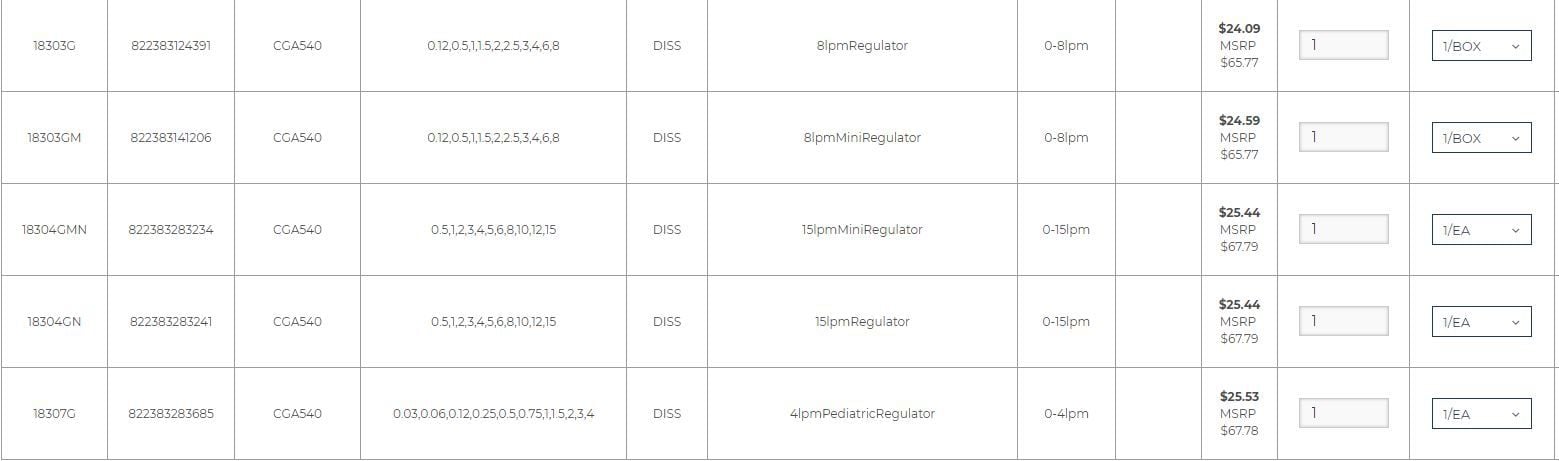

The CGA 540 4 LPM Pediatric Regulator (18307G) is specially designed for pediatric use. It offers flow increments (0.03,0.06,0.12,0.25,0.5,0.75,1,1.5,2,3,4) up to 4 liters of oxygen per minute. This regulator uses a DISS outlet.

The CGA 540 8 LPM Regulator (18303G) offers flow increments (0.12,0.5,1,1.5,2,2.5,3,4,6,8) up to 8 liters of oxygen per minute and uses a DISS outlet.

The CGA 540 8 LPM Mini Regulator (18303GM) provides the same features as the larger model, but in a compact body that will more easily fit into a portable carry bag. It offers flow increments (0.12,0.5,1,1.5,2,2.5,3,4,6,8) up to 8 liters of oxygen per minute and uses a DISS outlet.

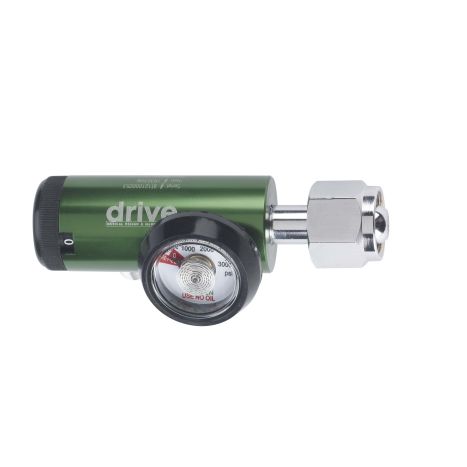

The CGA 540 15 LPM Regulator (18304GN) offers 11 flow increments (0.5,1,2,3,4,5,6,8,10,12,15)up to 15 liters of oxygen per minute. This regulator uses a DISS outlet.

The CGA 540 15 LPM Mini Regulator (18304GMN) provides the same features as its larger counterpart but in a smaller size that easily fits into a carry bag for increased portability. This regulator also uses a DISS outlet.

For an Oxygen Regulator with a Barb outlet try, Drive Medical Oxygen Regulator CGA 870.

Features and Benefits

• Easy-to-Use Single Selector Knob
• Protective Contents Gauge and Built-in Pressure Relief Valve
• Lightweight, Durable Design
• Uderwriters Laboratories Safety Approved (UL)
• Sleek Green Finish

Specifications

• Manufacturer: Drive Medical
• Item Numbers: 18303G, 18303GM, 18304GMN, 18304GN, 18307G
• Outlet Type: DISS
• Inlet Pressure : 300 - 3,000 PSI
• Outlet Pressure: 50 PSI
• UL Approved
• Meets or Exceeds Accuracy Standards as Set by ASTM, American National and CGA
• Warranty: 3 Years
• Application: Regulates Oxygen Pressure from a Cylinder

Manuals and Documents

•    Product Specifications

•    Product Brochure
