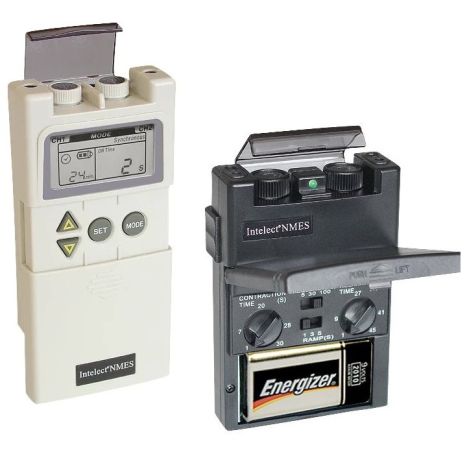

Intelect NMES Digital Electrotherapy Unit - 77717

The Intelect NMES Digital Unit is a portable electrotherapy device that delivers neuromuscular electrical stimulation for muscle re-education, strength recovery, and rehabilitation therapy.

This unit supports post-operative recovery and injury rehabilitation by promoting muscle contractions that help prevent atrophy, improve tone, and restore function. The Chattanooga 77717 Digital NMES Unit features customizable treatment settings, a large LCD screen, and program memory to track and repeat therapy sessions. Designed for home or clinical use, it offers effective NMES therapy for pain management, muscle training, and functional recovery.

• Allows for Treatment of Two Areas Simultaneously
• Comes With Standard, Preset NMES Protocols
• Modify Intensity, Frequency, and Pulse Width for Customization Based on Patient Needs
• Ensures Mobility Without Being Tied to an Electrical Outlet
• Helps Reduce Chronic or Acute Muscle Pain by Stimulating Nerves and Muscles
• Compact and Lightweight for Clinic or Home Use, Increasing Treatment Compliance
• Dual-channel output treats two sites at once
• Compatible with reusable adhesive electrodes
• Includes treatment timer with auto shutoff
• Battery-powered for mobile use in any setting

• Manufacturer: Chattanooga
• Brand: Intelect
• Application: Electrotherapy system
• Device Type: Digital NMES
• Portable: Yes
• Channels: 2-channel, isolated
• Pulse Amplitude: 0 to 80 mA per channel (adjustable, 500 ohm load)
• Waveform: Asymmetric, biphasic square pulse
• Pulse Width: 50–300 μs (adjustable)
• Pulse Frequency: 2–120 Hz (adjustable)
• Stimulation Modes: Synchronous, constant, alternate
• Display: LCD screen with digital controls
• Timer: 5–90 minutes or continuous
• Dimensions: 1.2 × 2.3 × 4 inches
• Weight: 4.4 ounces
• Power Source: 9V battery (rechargeable option available)
• Latex Indicator: Not made with natural rubber latex
• HCPCS Code: E0762
• UNSPSC Code: 42141807
• Country of Origin: Taiwan
• Safety Standards: EN 60601-1, EN 60601-2, EN 60601-1-2, EN 60601-2-10

• Standard or Digital NMES Unit
• Leadwires
• 9-volt battery
• DURA-STICK® self-adhesive electrodes
• Carrying case

• Relaxation of muscle spasms
• Prevention or slowing of disuse atrophy
• Increasing circulation
• Muscle re-education
• Maintaining or improving range of motion
• Symptomatic relief or management of chronic, intractable pain
• Post-traumatic acute pain relief
• Post-surgical acute pain relief

Brochure
