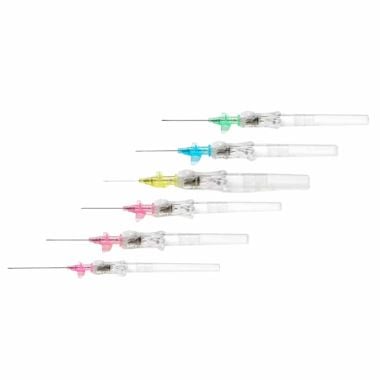

BD Insyte Autoguard Winged Shielded IV Catheter - 18, 20, 22, 24 Gauge

The BD Insyte Autoguard Winged Shielded Peripheral IV Catheter is safety-engineered with clinician-activated push-button needle shielding. It is made with BD Vialon catheter material and is available in 18, 20, 22, and 24G and 0.75-1.88 inch needle lengths.

Except for 18G, the IV Catheters feature Instaflash technology with a notched needle to provide visual confirmation of vessel entry. After insertion, push-button activation retracts and encapsulates the needle into a safety barrel to help reduce needlestick risk.

Wings on the hub facilitate taping the IV catheter to the patient's arm, helping to keep it in place during treatment.

Features and Benefits

• Autoguard needle encapsulation helps reduce the risk of needlestick injury
• Instaflash indicates successful vessel entry
• Wings facilitate taping down the IV catheter
• Color-coded hubs help caregivers quickly identify gauge sizes

Specifications

• Manufacturer: BD Becton Dickinson
• Brand: BD Insyte Autoguard
• Product Numbers: 381544, 381533, 381534, 381537, 381523, 381512
• Application: Winged Peripheral IV Catheter
• Hub Colors: Green, Pink, Blue, Yellow
• Gauge Sizes: 18, 20, 22, 24
• Length Options: 0.75, 1, 1.16, and 1.88 Inches
• Hub Type: Winged Hub
• Blood Control: No
• Ports: None
• Safety Activation: Push Button Safety
• Vessel Entry Confirmation: Instaflash Needle (20, 22, and 24G)
• X-Ray Compatibility: Radiopaque
• Disposable: Yes
• Sterility: Sterile
• Sterilization Method: ETO
• High Pressure Rating: 300 psi
• Shelf Life: 3 Years
• Country of Origin: United States
• UNSPSC Code: 42221512

Materials

• Catheter: BD Vialon Polyurethane Biomaterial
• Hub: Plastic
• Needle: Stainless Steel

Dimensions

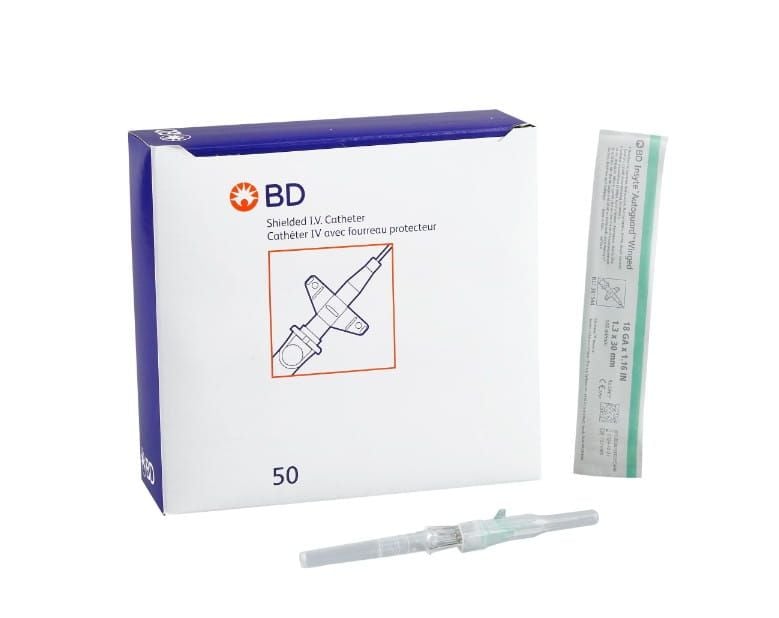

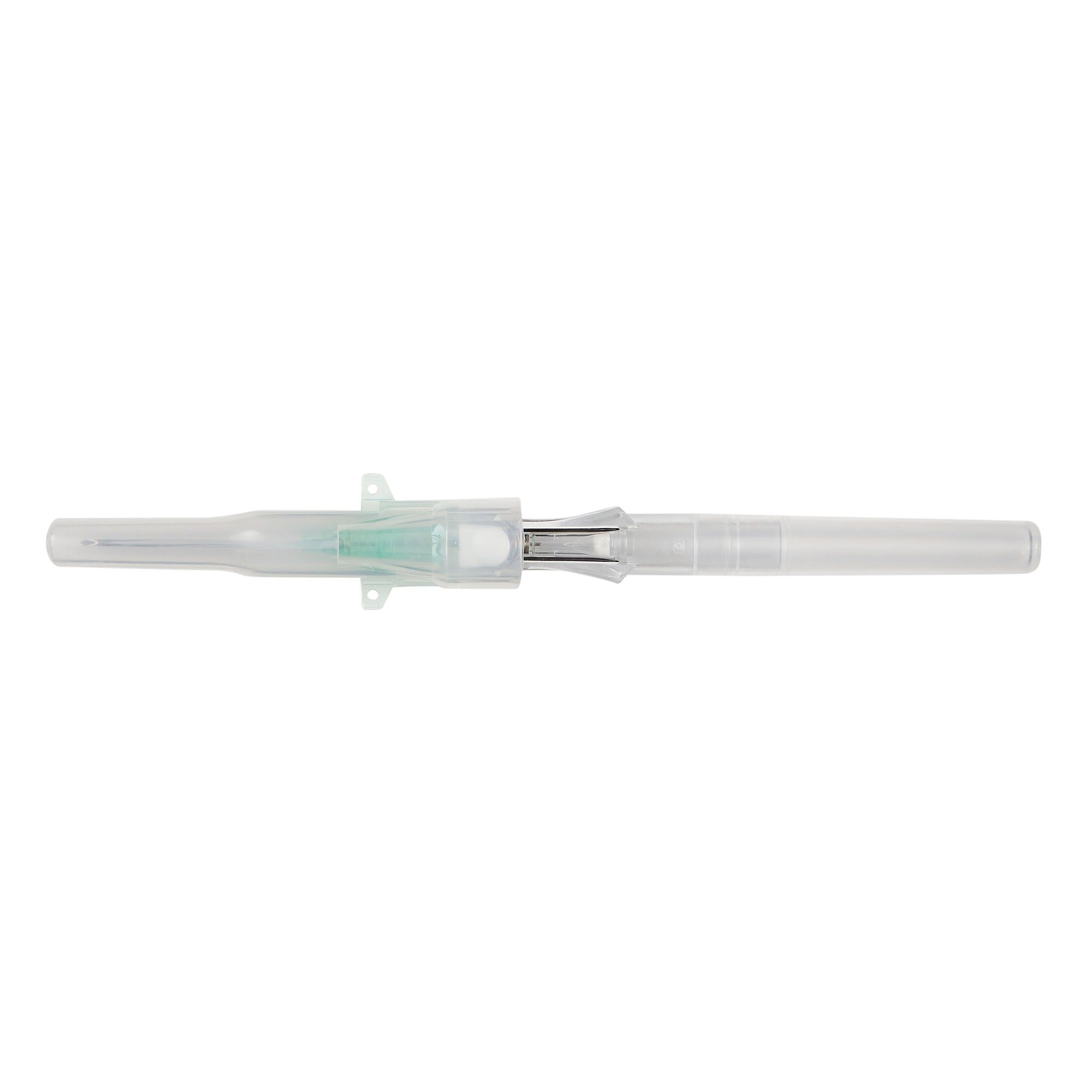

381544

• Gauge: 18 (1.3 mm)
• Length: 1.16 Inches (30 mm)
• Inner Diameter (I.D.): 0.978 mm
• Outer Diameter (O.D.): 1.308 mm
• Flow Rate: 105 mL/Min
• Hub Color: Green

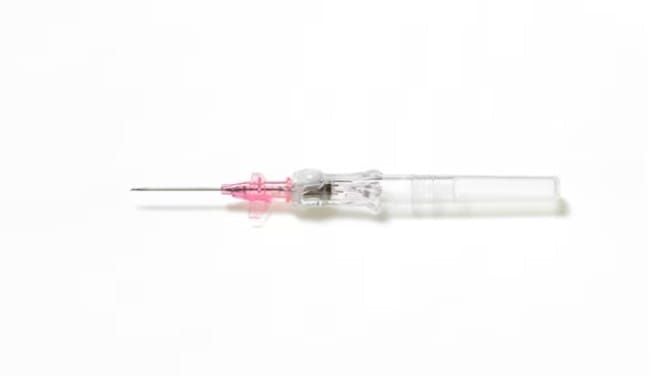

381533

• Gauge: 20 (1.1 mm)
• Length: 1 Inch (25 mm)
• Inner Diameter (I.D.): 0.8 mm
• Outer Diameter (O.D.): 1.08 mm
• Flow Rate: 65 mL/Min
• Hub Color: Pink
• Needle Point Style: Notched Instaflash Needle

381534

• Gauge: 20 (1.1 mm)
• Length: 1.6 Inches (30 mm)
• Inner Diameter (I.D.): 0.8 mm
• Outer Diameter (O.D.): 1.08 mm
• Flow Rate: 60 mL/min
• Hub Color: Pink
• Needle Point Style: Notched Instaflash Needle

381537

• Gauge: 20 (1.1 mm)
• Length: 1.88 Inches (48 mm)
• Inner Diameter (I.D.): 0.8 mm
• Outer Diameter (O.D.): 1.08 mm
• Flow Rate: 55 mL/min
• Hub Color: Pink
• Needle Point Style: Notched Instaflash Needle

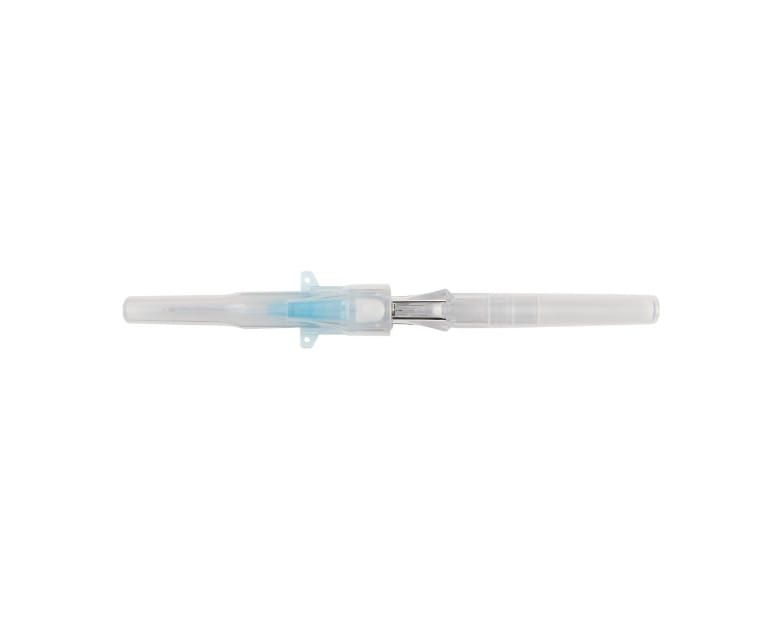

381523

• Gauge: 22 (0.9 mm)
• Length: 1 Inch (25 mm)
• Inner Diameter (I.D.): 0.648 mm
• Outer Diameter (O.D.): 0.876 mm
• Flow Rate: 35 mL/min
• Hub Color: Blue
• Needle Point Style: Notched Instaflash Needle

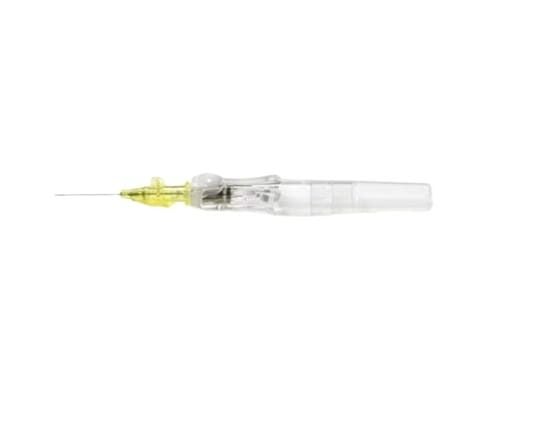

381512

• Gauge: 24 (0.7 mm)
• Length: 0.75 Inches (19 mm)
• Inner Diameter (I.D.): 0.521 mm
• Outer Diameter (O.D.): 0.699 mm
• Flow Rate: 20 mL/min
• Hub Color: Yellow
• Needle Point Style: Notched Instaflash Needle

Catalog
