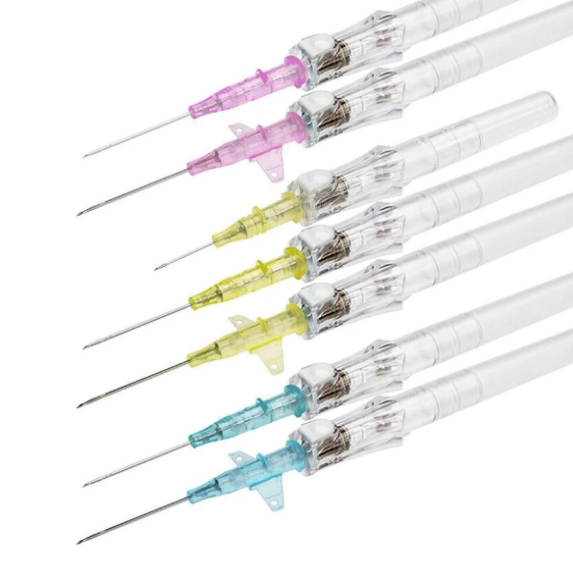

BD IV Catheter Overview
The BD Insyte Autoguard™ Shielded IV Catheter with BD Vialon™ Catheter Material 14 G x 1.77 in. is an Autoguard Shielded Non-Blood Control IV Catheter engineered for peripheral venous access in both routine and urgent care settings. Designed with a notched needle tip and Instaflash™ visual confirmation, this catheter helps clinicians verify vein entry on the first attempt, reducing delays and discomfort. Its proprietary BD Vialon™ catheter material softens within the vessel, promoting longer dwell times and minimizing the risk of phlebitis.
The BD Insyte Autoguard Shielded IV Catheter incorporates a push-button safety mechanism that activates a built-in shield to help prevent needlestick injuries immediately after insertion. Available in both winged and non-winged configurations, it supports secure stabilization and adaptable placement across patient types. The catheter’s radiopaque design supports post-insertion imaging, while a 300 psi pressure rating makes it compatible with power injection procedures. The BD Insyte Autoguard IV Catheter is a strong choice for clinicians seeking a disposable IV catheter that supports infection control, pressure management, and safe handling across care environments.
Features and Benefits
- Softens in Vein for Comfort
- Push-Button Safety Shielding
- Non-Blood Control Design
- Compatible With Power Injectors
- Winged and Non-Winged Options
- 300 psi Pressure Tolerance
- Improved Ease of Penetration
- Radiopaque for Clear X-Ray Imaging
- Instaflash™ Promotes First-Stick Success
Specifications
- Manufacturer: Becton Dickinson
- Brand: Insyte™ Autoguard™
- Country of Origin: Unknown
- Application: Peripheral IV Catheter
- Blood Control: Non Blood Control
- Catheter Length: 0.75 Inch / 1 Inch / 1.16 Inch / 1.66 Inch / 1.77 Inch / 1.88 Inch
- Catheter Material: BD Vialon
- Color Code: Orange / Gray / Green / Pink / Blue / Yellow
- Flow Rate: 330 mL/min / 220 mL/min / 105 mL/min / 95 mL/min / 65 mL/min / 55 mL/min / 35 mL/min / 20 mL/min
- Gauge: 14 Gauge / 16 Gauge / 18 Gauge / 20 Gauge / 22 Gauge / 24 Gauge
- HCPCS: C1769 / A4222 / A4351 / C1751
- Hub Material: Plastic Hub
- Hub Type: Straight Hub / Winged Hub
- Needle Material: Stainless Steel
- Needle Point Style: Notched Needle
- Number of Ports: Without Port
- Port Type: Without Port
- Pressure Rating: Not Pressure Rated / 300 psi
- Safety Activation: Push Button Safety
- Safety Feature: Shielding
- Sterility: Sterile
- Tubing Diameter: 1.740 mm ID / 1.359 mm ID / 0.978 mm ID / 0.800 mm ID / 0.648 mm ID / 0.521 mm ID
- UNSPSC Code: 42221512 / 42221504
- Usage: Disposable
- Vessel Entry Confirmation: Without Visual Confirm / Instaflash™ Needle
- X-Ray Compatibility: Radiopaque
Comparison Table
| SKU | Catheter Length | Color | Flow Rate | Gauge | Hub Type | Tubing Diameter |
|---|---|---|---|---|---|---|
| 381467 | 1.77 Inch | Orange | 330 mL / min | 14 | Straight | 1.740 mm ID |
| 381454 | 1.16 Inch | Gray | 220 mL / min | 16 | Straight | 1.359 mm ID |
| 381444 | 1.16 Inch | Green | 105 mL / min | 18 | Straight | 0.978 mm ID |
| 381544 | 1.66 Inch | Green | 105 mL / min | 18 | Winged | 0.978 mm ID |
| 381447 | 1.88 Inch | Green | 95 mL / min | 18 | Straight | 0.978 mm ID |
| 381433 | 1 Inch | Pink | 65 mL / min | 20 | Straight | 0.800 mm ID |
| 381533 | 1 Inch | Pink | 65 mL / min | 20 | Winged | 0.800 mm ID |
| 381434 | 1.16 Inch | Pink | 60 mL / min | 20 | Straight | 0.800 mm ID |
| 381534 | 1.16 Inch | Pink | 60 mL / min | 20 | Winged | 0.800 mm ID |
| 381537 | 1.88 Inch | Pink | 55 mL / min | 20 | Winged | 0.978 mm ID |
| 381423 | 1 Inch | Blue | 35 mL / min | 22 | Straight | 0.648 mm ID |
| 381523 | 1 Inch | Blue | 35 mL / min | 22 | Winged | 0.800 mm ID |
| 381412 | 0.75 Inch | Yellow | 20 mL / min | 24 | Straight | 0.521 mm ID |
| 381512 | 0.75 Inch | Yellow | 20 mL / min | 24 | Winged | 0.648 mm ID |
