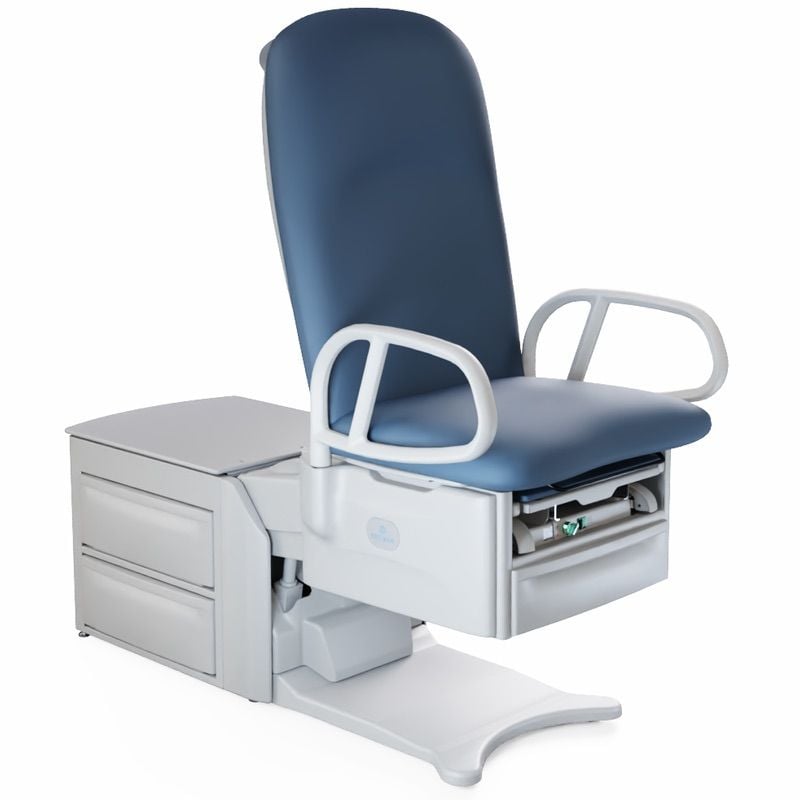

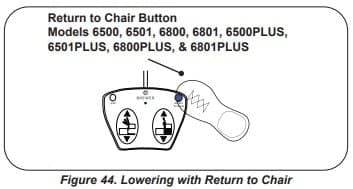

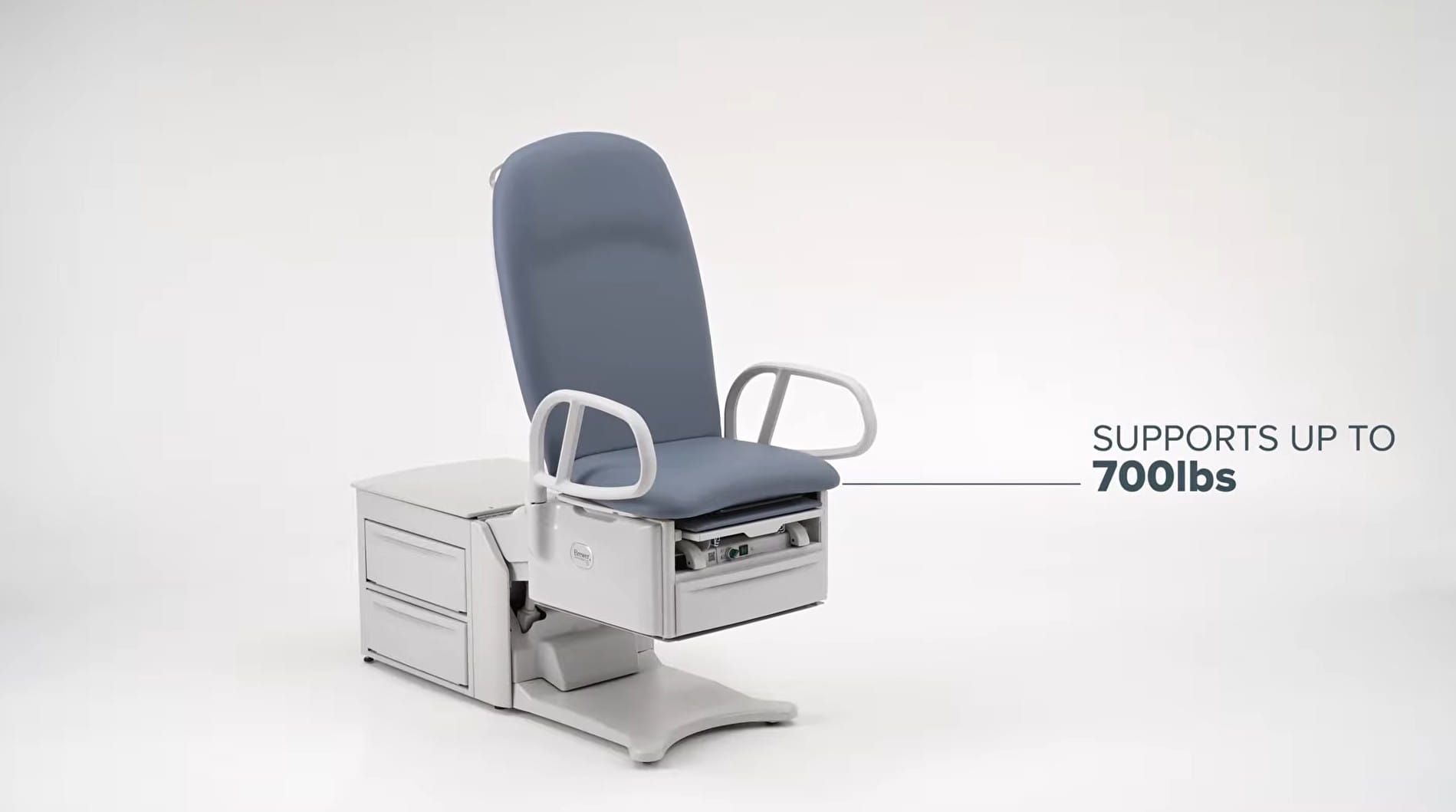

The Access® High-Low PLUS Power Exam Table is an ADA-compliant, powered-height, powered-back medical exam table with a 700-pound capacity, patient-assist features, a work surface, integrated storage, and a return-to-chair operation. It is useful for medical practices and facilities needing a higher-capacity table for general examinations, patient positioning, and lateral transfers.

The table is available in several colors and 2 different models: the standard and the women’s health package. Both models have a 700-pound weight capacity and feature ComfortGrip handles, adjustable stirrups, a Mayo work surface, and 5 cubic feet of storage. The standard table range is 18–37 inches, with a 60-inch surface extending to 78 inches. The 6801PLUS adds pelvic tilt, a heated drawer, and an electrical outlet.

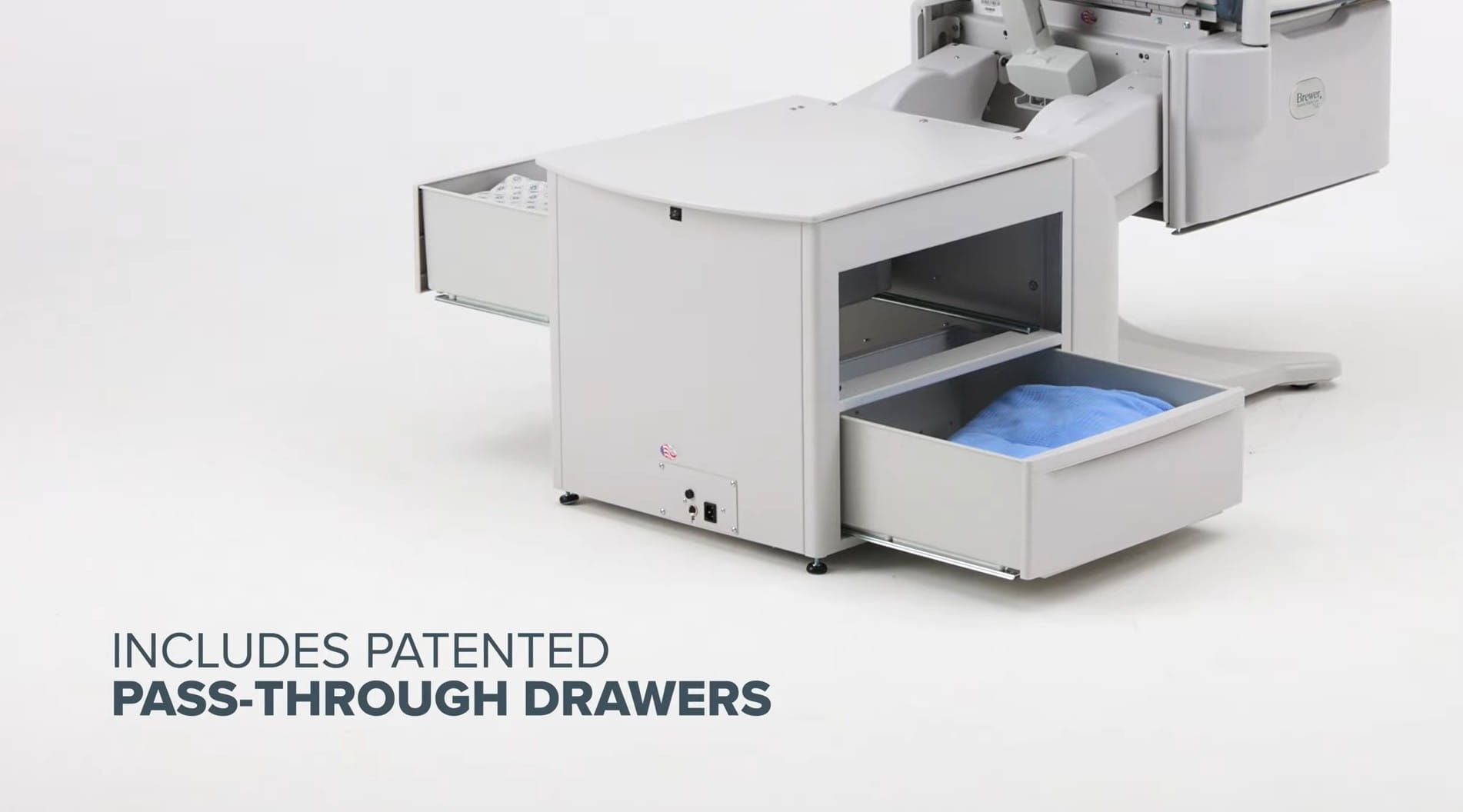

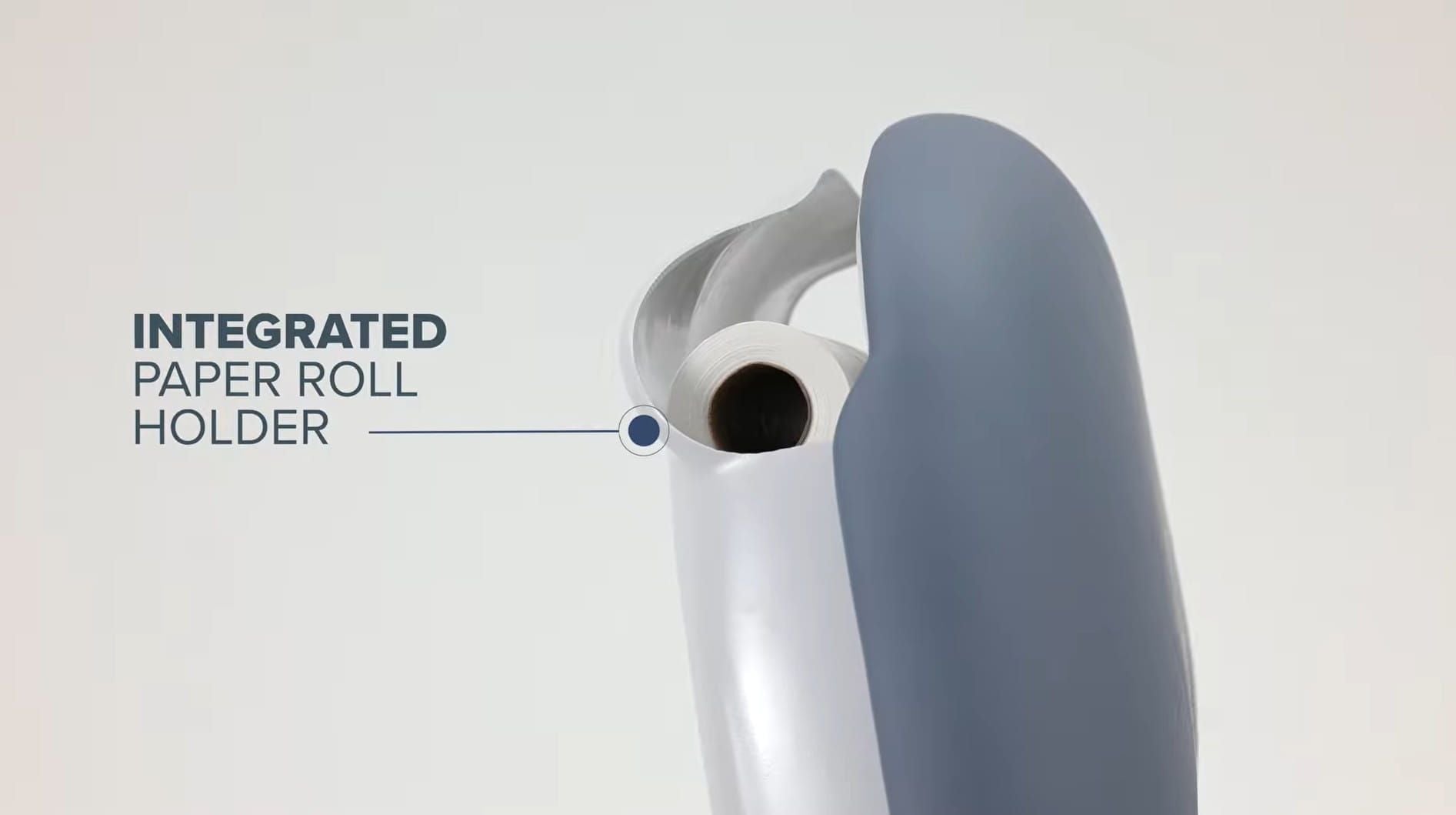

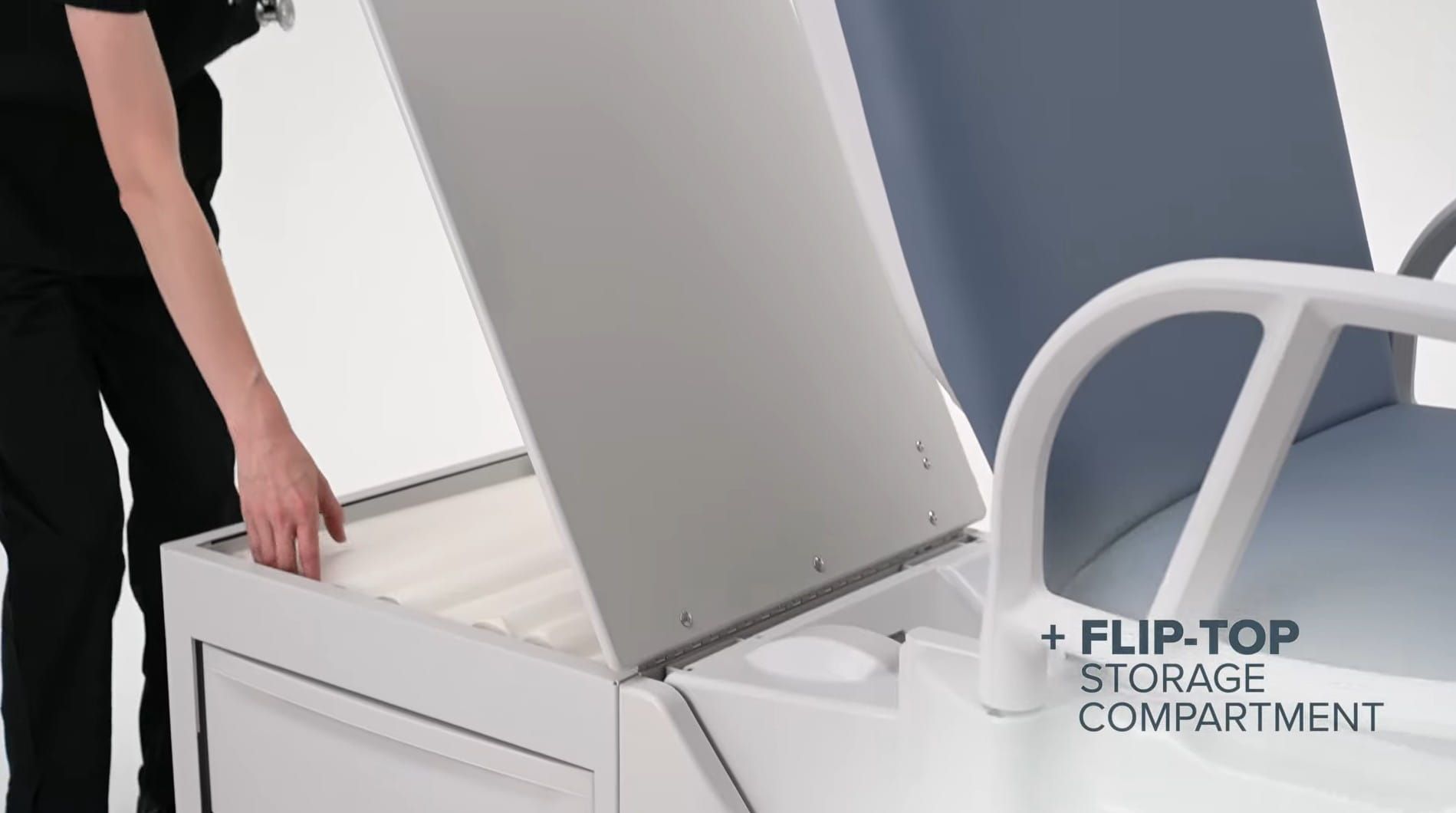

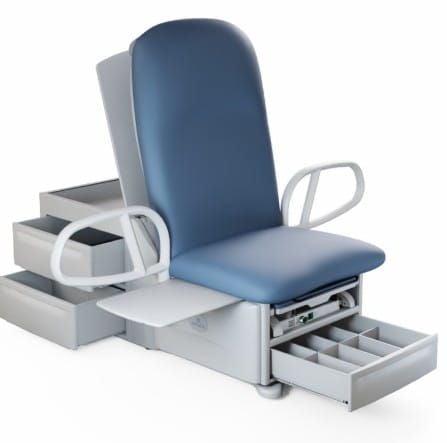

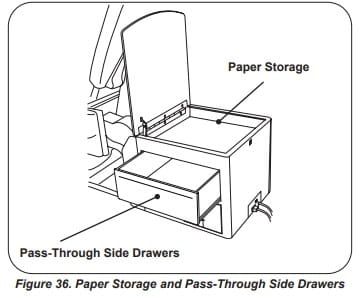

The Signature Storage Hub includes pass-through drawers and a flip-top paper-roll compartment.

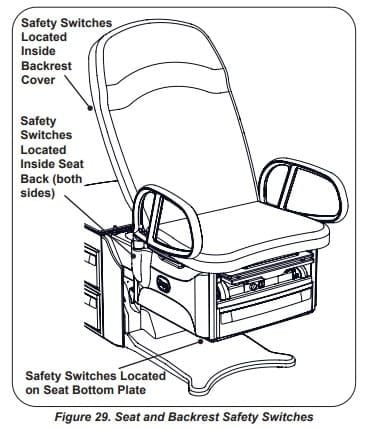

An anti-tamper control helps keep the patient and the medical professional safe from accidental table movement.

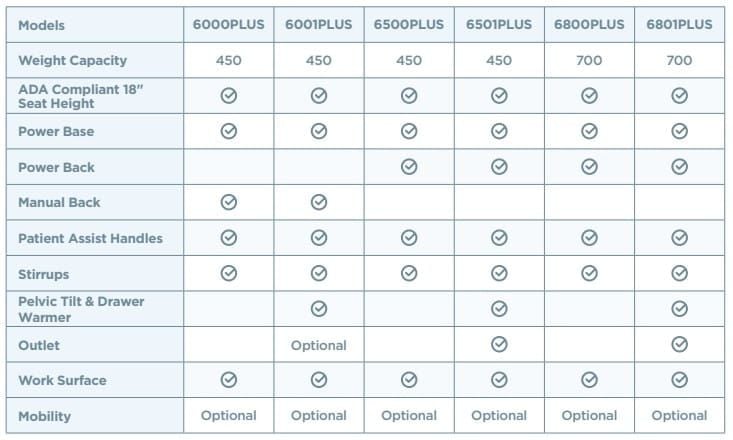

Standard vs Women’s Health Package Models

Standard (6800PLUS Model)

Power base
Power back
Patient assist handles

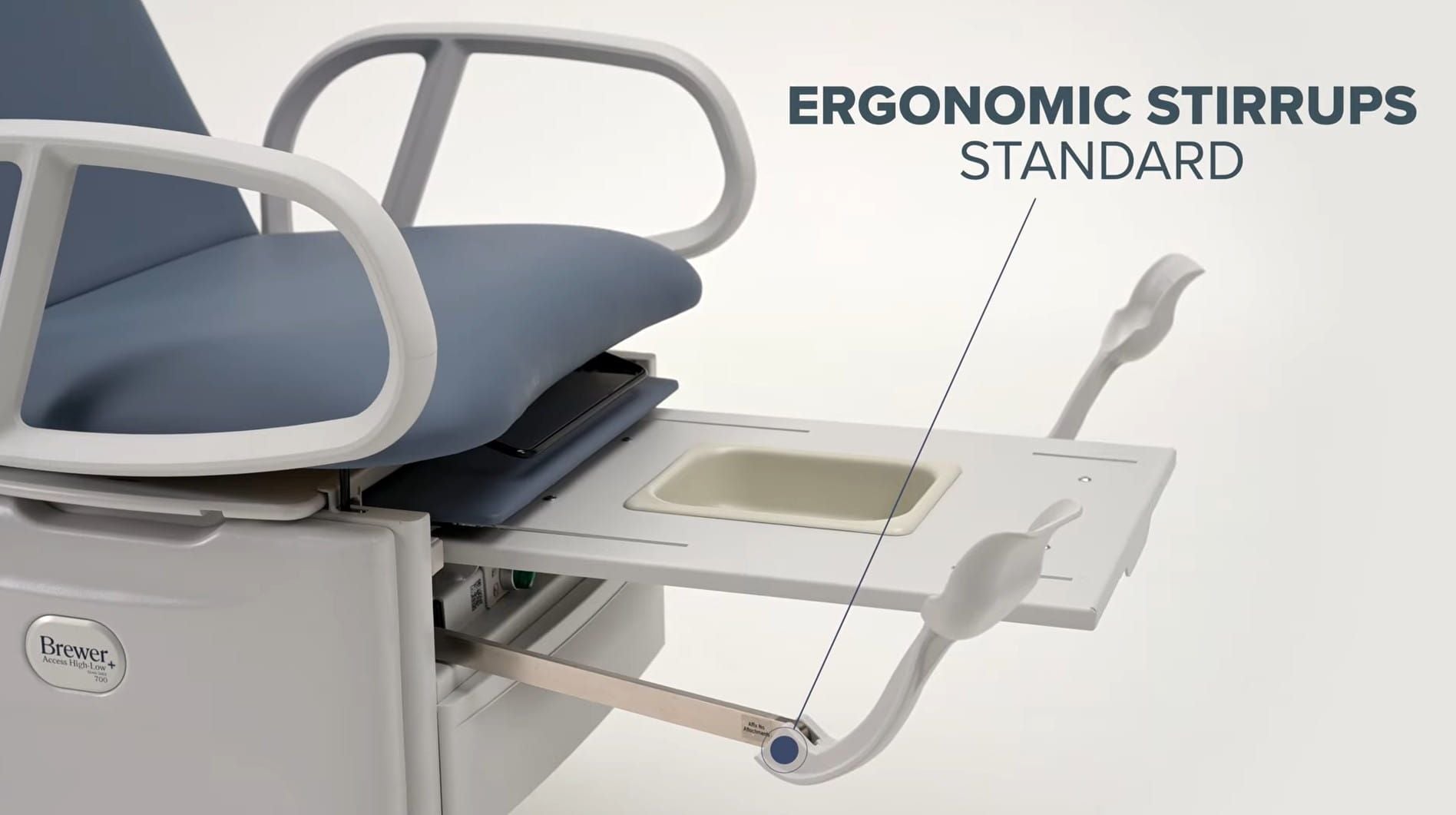

Stirrups
Work surface

Women’s Health Package (6801PLUS Model)

Power base
Power back
Patient assist handles
Stirrups
Work surface
Pelvic tilt
Drawer warmer
Outlet

Maintenance and Safety Information

Wipe away light soiling on the upholstery with a 10% dish soap solution and a damp cloth. If needed, use a soft bristle brush. For tougher stains, try a 10% bleach and 90% water solution.

Disinfect the upholstery with diluted cleaning solutions such as:

Isopropyl alcohol
Diisobutylphenoxyethoxyethyl dimethyl benzyl ammonium chloride and isopropanol
Dimethyl ethylbenzyl ammonium chlorides and dimethyl benzyl ammonium chlorides
Sodium hypochlorite
Hydrogen peroxide

See the maintenance brochure below for additional cleaning information.

Features and Benefits

SafeGlide leg extensions accommodate taller patients

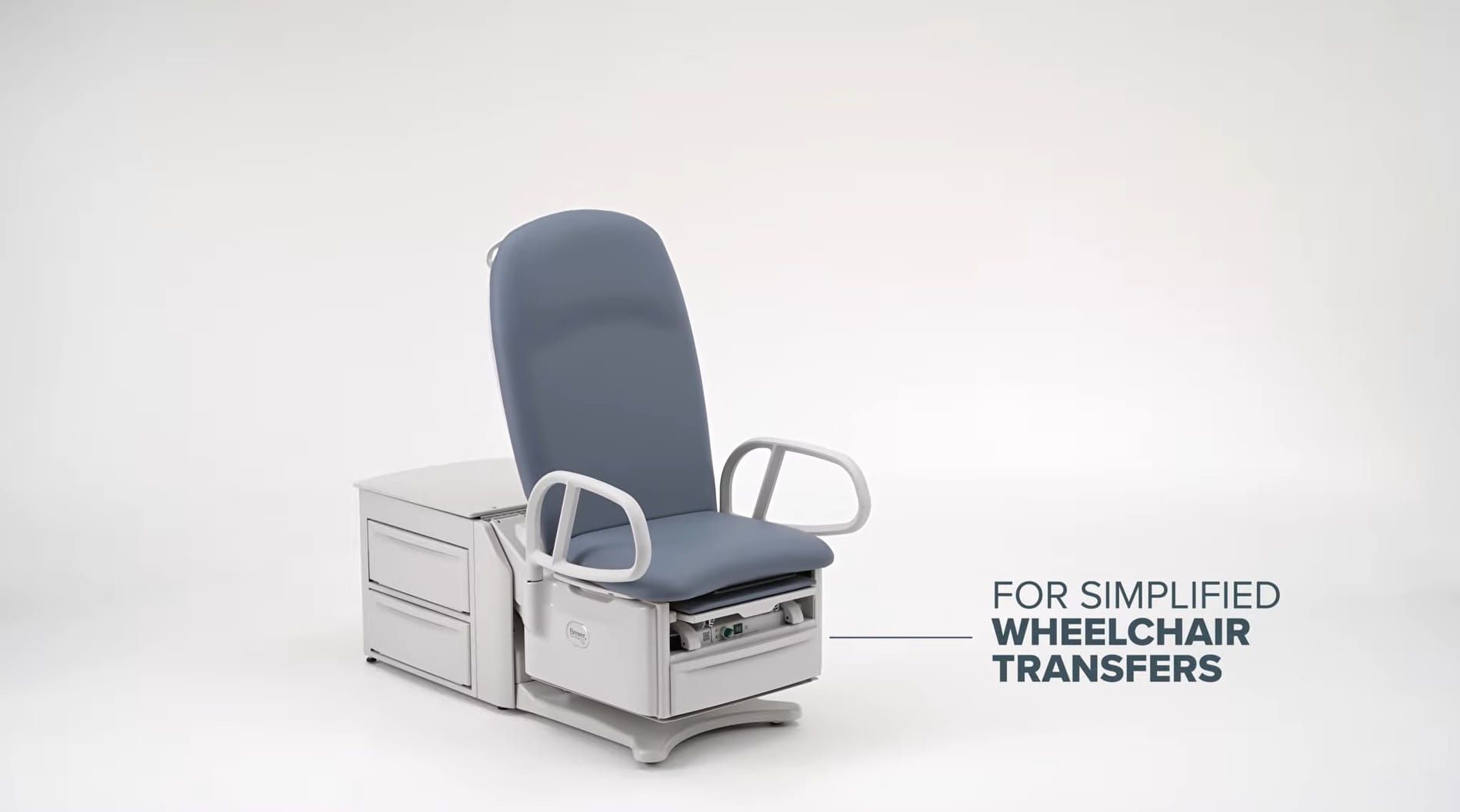

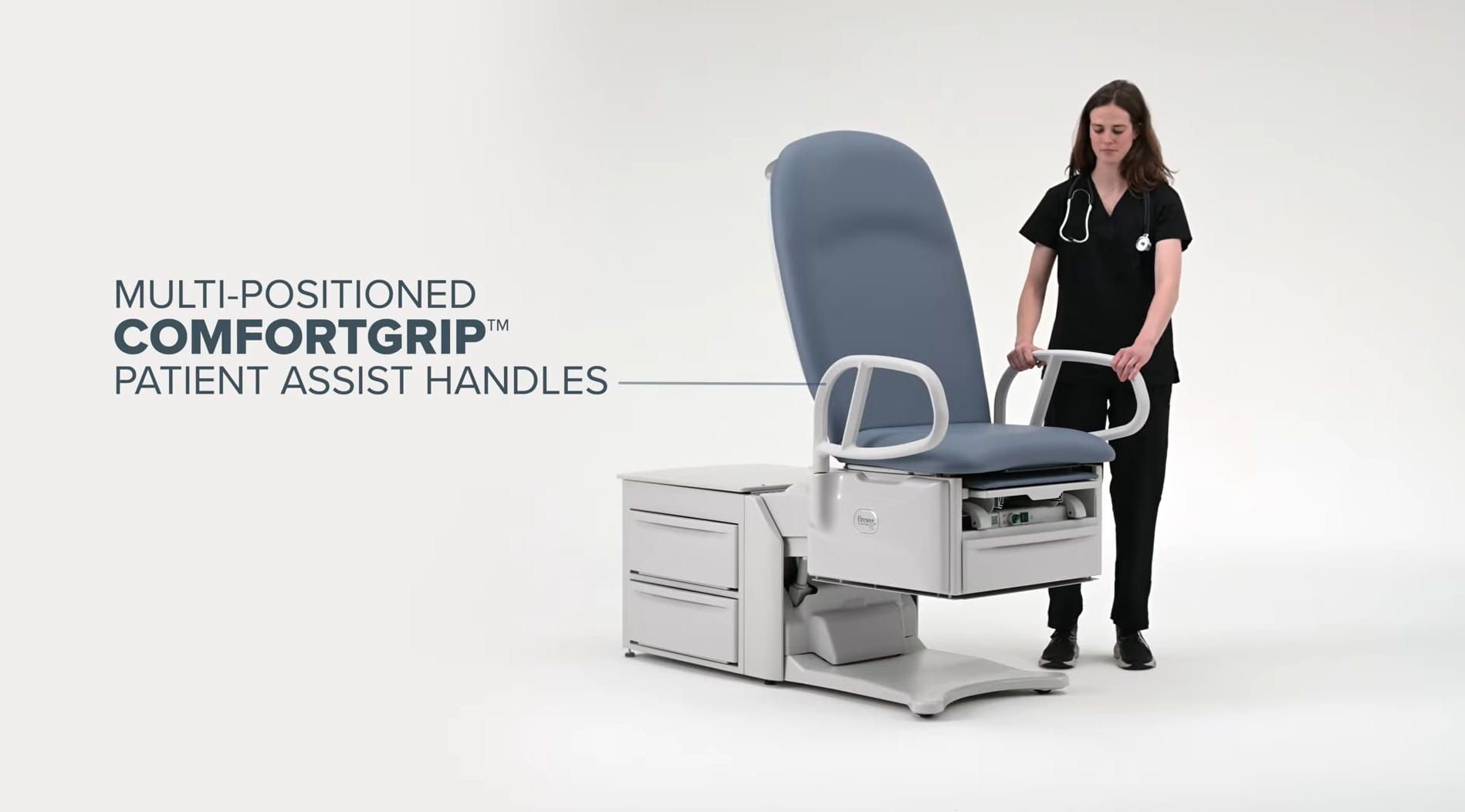

ComfortGrip patient assist handles facilitate transfers and provide additional support

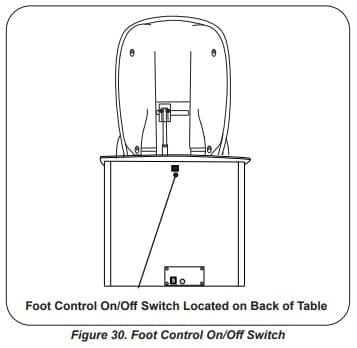

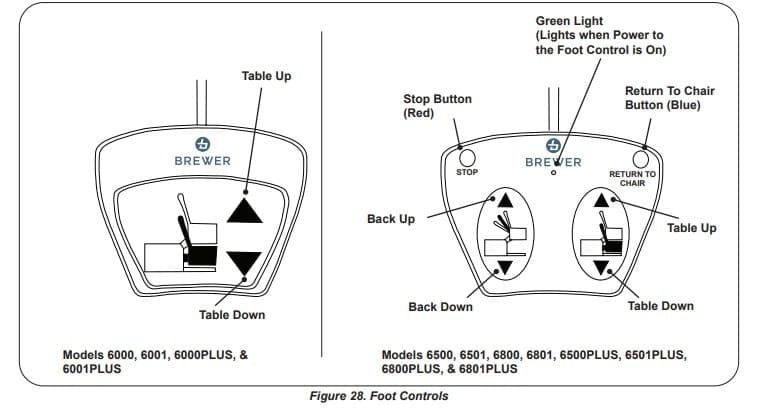

Tamper-resistant on/off switch reduces the risk of unintentional table adjustments
5 cubic feet of storage space for physician convenience

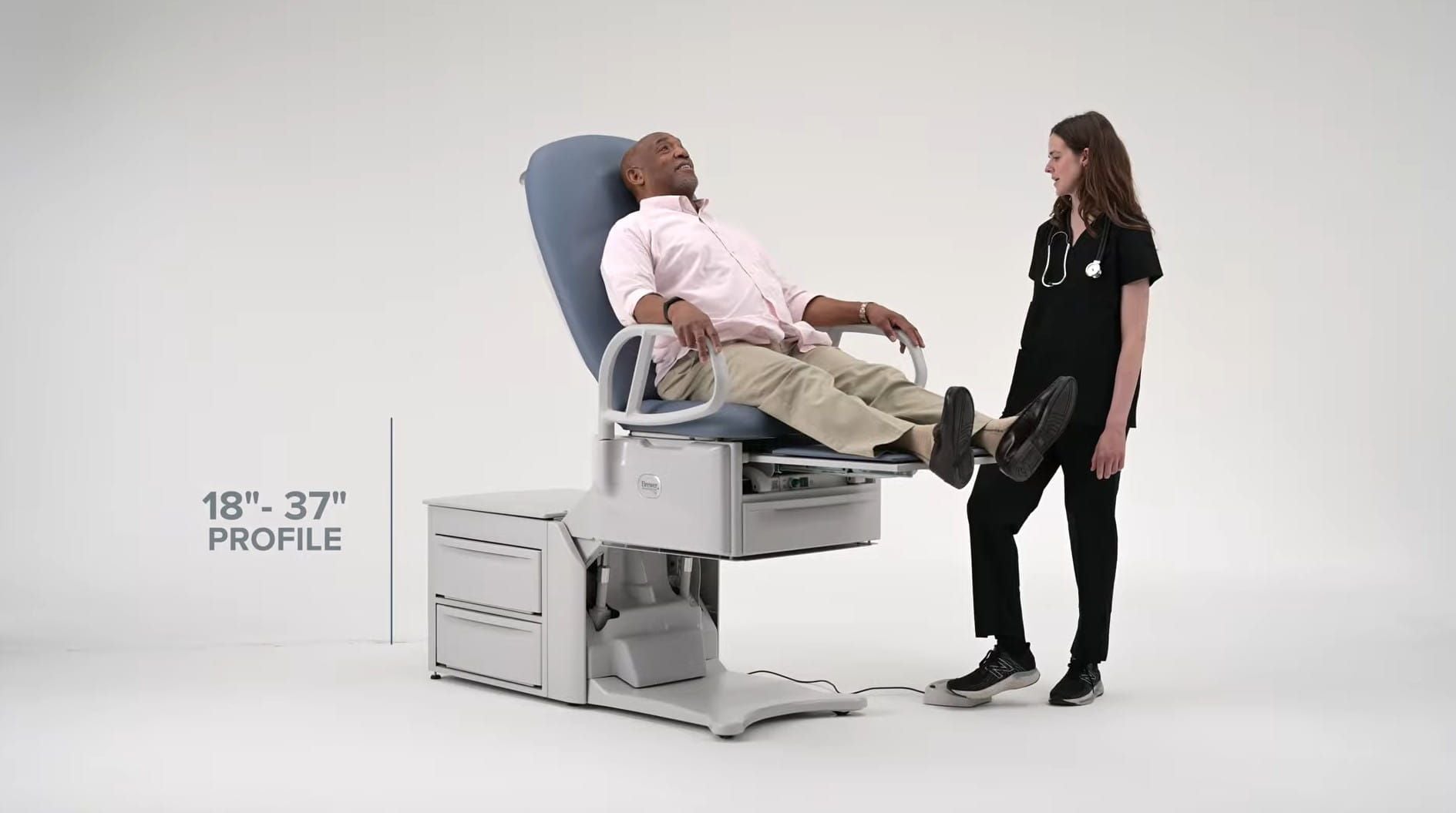

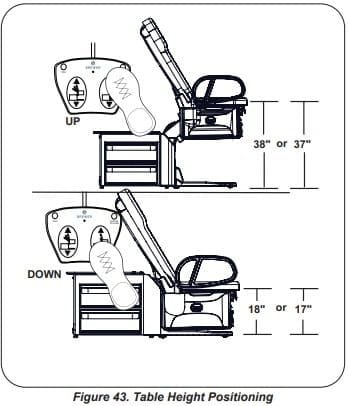

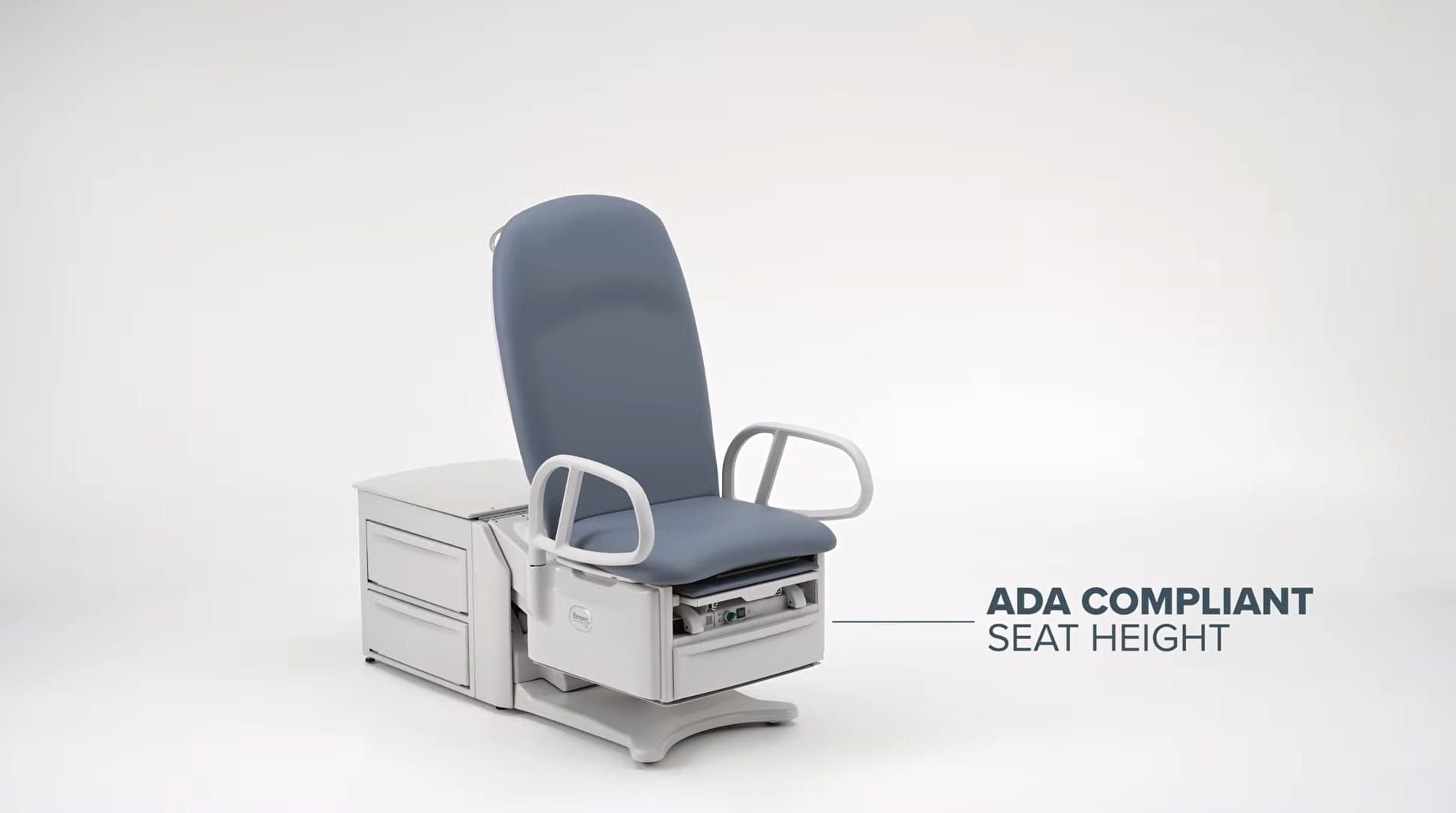

18- to 37-inch adjustable table height is ADA compliant

Specifications

Manufacturer: Brewer
Brand: Access®
Product Numbers: 6800PLUS, 6801PLUS

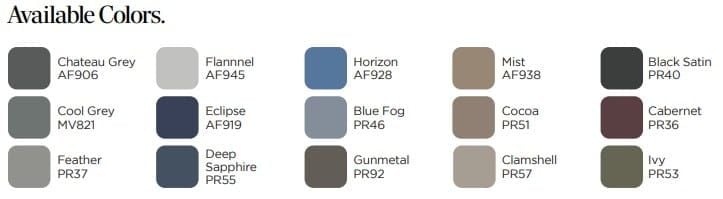

Colors: Black Satin, Blue Fog, Cabernet, Chateau Grey, Clamshell, Cocoa, Cool Grey, Eclipse, Feather, Flannel, Gunmetal, Horizon, Ivy, Mist, Deep Sapphire
Application: Exam Table
Pelvic Tilt Range (6801PLUS Only): 0-6 Degrees
Recline Range: 0-80 Degrees
Voltage: 115VAC, 60 Hz
Standard Fuse Rating: 250V/1.0 Amp
Women’s Health Package Fuse Rating: 250V/3.0 Amp
Power Cord Length: 70 Inches (177.8 Centimeters)
Operating Temperature: 41-104 Degrees Fahrenheit (5-40 Degrees Celsius)
Operating Humidity: 10-80%

Dimensions

Front Drawer

Length: 19.75 Inches (50.2 Centimeters)
Width: 19.25 Inches (48.9 Centimeters)
Depth: 4 Inches (10.1 Centimeters)

Side Drawers (Each)

Length: 22.5 Inches (57.2 Centimeters)
Width: 20.25 Inches (51.4 Centimeters)
Depth: 8 Inches (20.3 Centimeters)

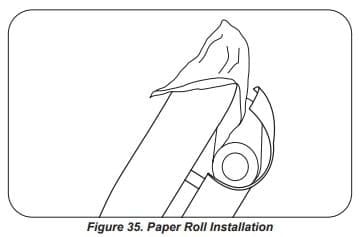

Paper Roll Storage Capacity

Length: 23 Inches (58.4 Centimeters)
Width: 23.25 Inches (49.1 Centimeters)
Depth: 3.25 Inches (8.3 Centimeters)
Compatible Roll Sizes: 18 Inches (45.7 Centimeters) and 21 Inches (53.34 Centimeters)
