Nebulizer machines are often quite varied with their level of output and options. The 50 PSI Compressor by Drive Medical is a robust compressor that delivers nebulization aerosol at a variable strength rate. It can also provide straight humidification for the user. This ultra-powerful machine is the workhorse among Drive Medical Nebulizer Compressors and will provide years worth of respiratory therapy.
The 50 PSI Compressor is designed for efficient, continuous high-pressure delivery. It will provide humidification, while also having the ability to deliver high-pressure nebulization of viscous medications -- output pressures with what clinical studies have indicated are required for optimal particle size (2 microns or less). The compressor is also quiet due to the uniquely designed WOB-L piston. It has a regulator with five settings to adjust the PSI output -- from 0-50 PSI.
This machine is lightweight despite the powerful compressor it houses. It is durable and easy to clean and has a removable door that protects the internal components. It is holds a one-year limited warranty through Drive Medical.
According to Drive Medical's user manual, this nebulizer compressor is compatible with the following medical devices:
- Hand-Held Nebulizer System
- Heated Nebulizer
- Dual Action Humidifier/Nebulizer
- Pediatric Mist Tent
- High Output Pneumatic Nebulizer
- Deluxe Nebulizer with Oxygen Diluter
- Child/Adult Mist Tent
Initial Position and Installation
- Choose an area near a standard power outlet.
- Place the unit out from the wall, controls facing the user for easy access.
- Verify that the unit is off.
- Plug the power cord into the outlet.
- Make sure that all connections are tight, without any leaks.
- Place the unit outside of any mist tents, below the discharge end of the tubing.

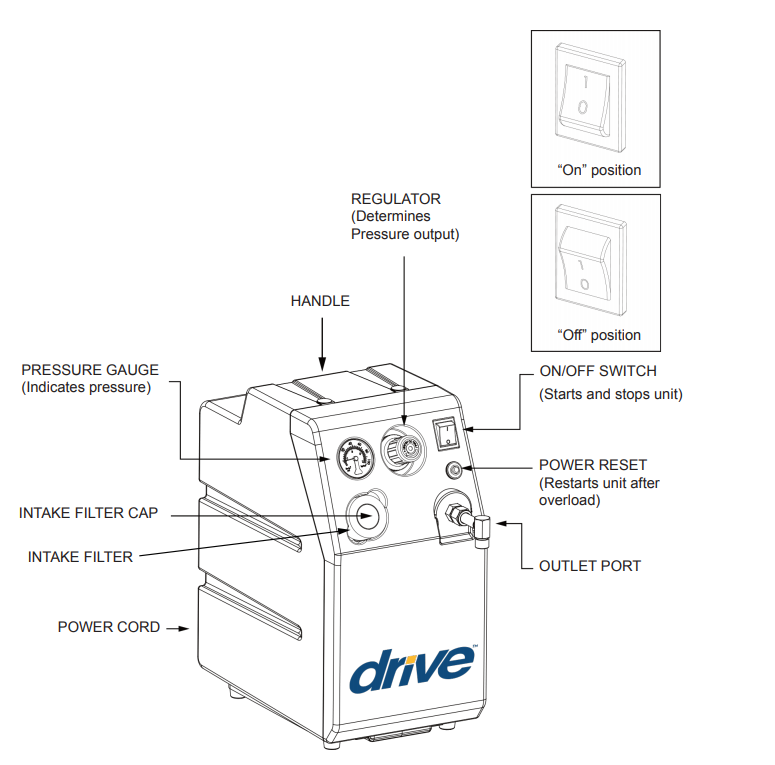

Operation
- Switch the power on using the On/Off button.
- Connect the attachments you will be using.
- Alter the pressure of the compressor to match what you need.
- Verify the pressure level.
Safety Precautions
- Always use a grounded power outlet.
- Unplug the unit to disconnect from power.
- Do not use the unit with ventilators.
- Dispose worn-out or damaged units according to regulations.
- Keep away from aerosols.
Cleaning and Maintenance
- Always disconnect from the power before performing maintenance.
- Change out the intake filter (do not wash used filters).

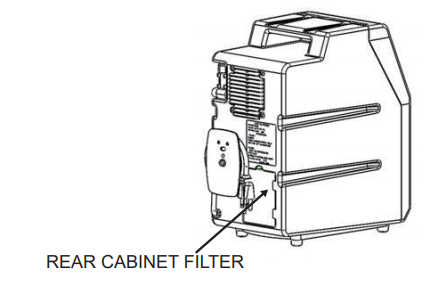

- Change out the cabinet filter.
- Use a clean cloth to disinfect the cabinet as needed.
- Caution: Do not submerge in water. Water will damage the vacuum pump.
Product Features and Benefits
- Easy-to-Read Pressure Gauge
- Optimizes Medication Delivery by Aerosolizing to a Particle Size of 2 Microns or Less
- Ultra-Powerful Compressor Is for Both Humidification and High-Flow, High-Pressure Nebulization of Viscous Medication
- Easy to Operate With Intuitive Controls
- Easy to Clean
- Comes With a Removable Access Door That Protects the Internal Components

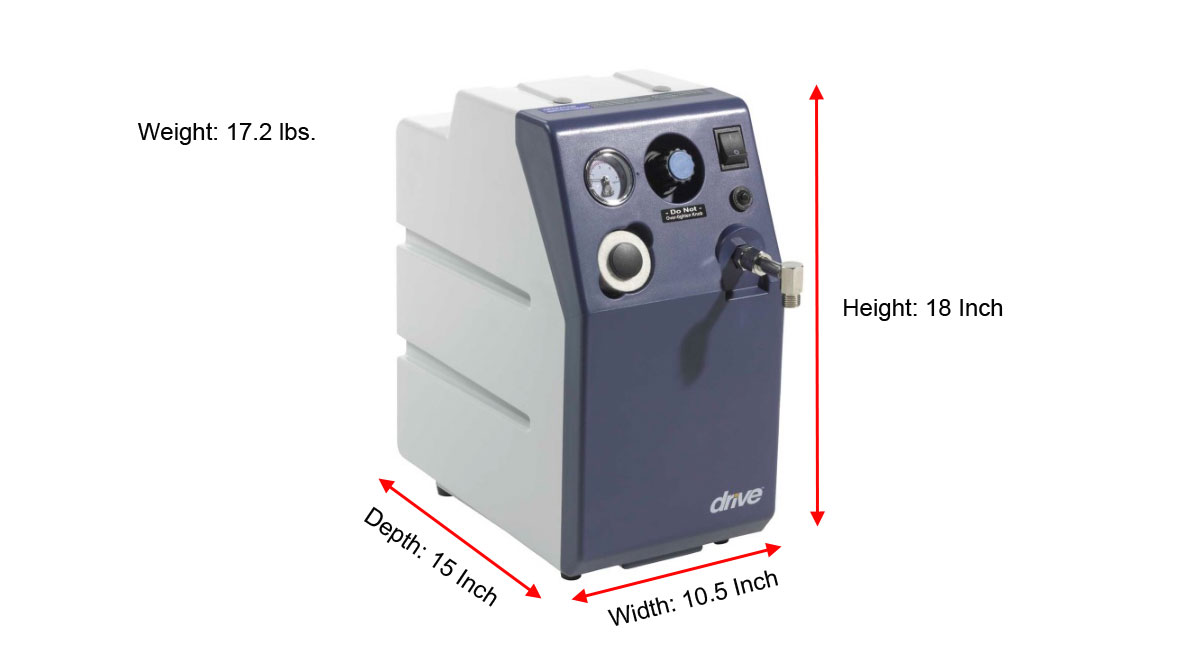

Product Dimensions
Product Specifications
- Manufacturer: Drive Medical
- Product Number: 18450
- Width: 10.5 Inches
- Depth: 15 Inches
- Height: 18 Inches
- Weight: 17.2 Pounds
- Flowrate Pressure Range: 0 to 50 PSI
- Power Consumption: 170 W at 0 PSI
- Sound: >60 dBA
- Electrical Requirements: 115 VAC and 60 Hz (Standard U.S. Home Electrical Outlets)
- Operating Relative Humidity: 95 Percent
- Operating Temperature Range: 50 Degrees Fahrenheit to 104 Degrees Fahrenheit
- HCPCS Code: E0565
- Application: Nebulizer
- Warranty: 1 Year Limited
Manuals and Documents
Product Catalog Page contains features and benefits.- Product User Manual provides setup and operating instructions.
