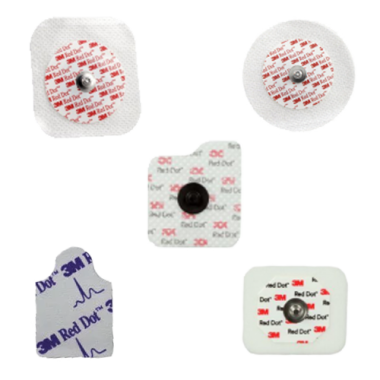

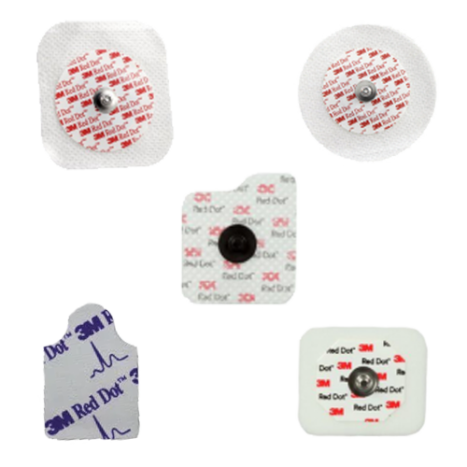

3M Red Dot Patient Monitoring Electrodes Overview
3M Red Dot ECG Electrodes are a leading brand in cardiac monitoring with specialty electrodes to meet the unique monitoring needs of patients. The 3M brand standardizes electrodes for a variety of uses based on the electrode's backing material and adhesive to ensure quality and consistent electrocardiogram traces. With proper skin preparation, the 3M Red Dot Monitoring Electrodes are recommended for short- or long-term use and can remain in place for three to five days, depending on the electrode and the patient's skin.
Available Electrode Types

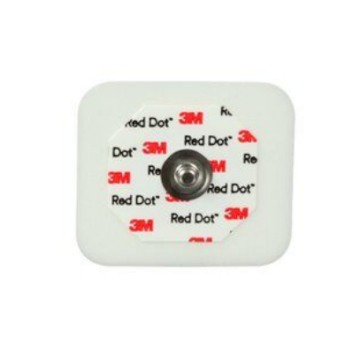

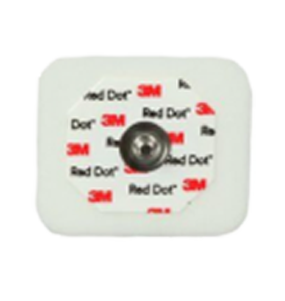

Foam-Tape Backing (2560, 2570)
The foam-tape backing with its proprietary sticky gel creates a high-foam performance electrode that can be worn for up to five days. The foam is a diaphoretic, or fluid-resistant, for patients who sweat. The sticky gel holds instantly and has high-performance conductivity. For these reasons, it is highly utilized. The 3M 2570 differs from the 3M 2560 electrode in that it has a radiolucent stud allowing it to remain in place for x-rays and the built-in blue abrader pad is on the back to prepare the site for improved adhesion.
Suggested Applications:
- Especially Suited for Operating and Emergency Rooms, Catheter Lab, ICU, and Paramedics
- Electrocardiogram Monitoring
- Applications Requiring High Adhesion

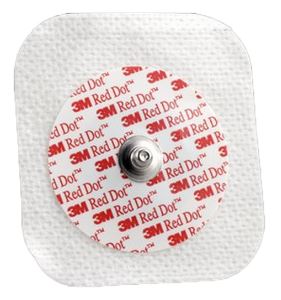

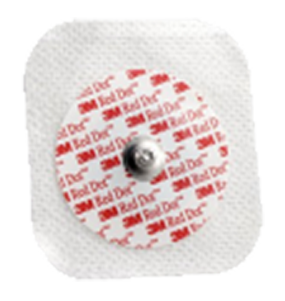

Soft Cloth Backing (2231)
3M 2231 Red Dot ECG Electrode is designed with a soft cloth backing that releases perspiration for normal and diaphoretic skin to ensure trace quality in moist conditions. The adhesive is a solid gel with low chloride to minimize skin irritation. It can remain in place for up to three days.
Suggested Applications
- General Electrocardiogram Monitoring, Primarily with Diaphoretic, Skin Moisture Issues
- ICU/CCU, Stress, Cardiac, Telemetry, and Holter Monitoring
Non-Woven Backing (2660-3)
3M 2660-3 Red Dot Electrode is a repositional electrode that's cloth-like and fluid-resistant without it being cloth. Its nonwoven backing and sticky gel allow for moving and relocating the electrode if necessary while keeping the lower impedance quality. It's also designed with a radiolucent snap so it can be safely worn during an x-ray and remain in place for three days.
Suggested Applications
- Operating and Emergency Rooms
- Paramedics
- Cardiology - ICU, CCU, Cath Lab, Echo, Stress, Holter, Telemetry

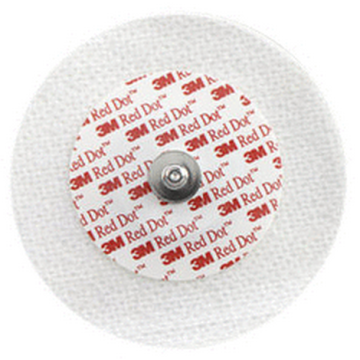

Micropore Paper Tape Backing (2248-50)
The 3M 2248-50 Red Dot Electrode is a pediatric monitoring electrode. The fleece backing with Micropore Paper Tape increases patient comfort since it's flexible and breathable. A solid gel with low chloride is another way it reduces skin irritation for pediatric patients and will hold up to wearing up to three days.
Suggested Applications
- Pediatric Units
- Pediatric PICU
- Stepdown and Observation

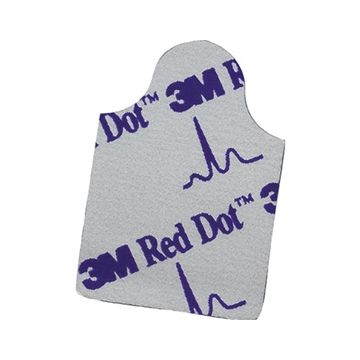

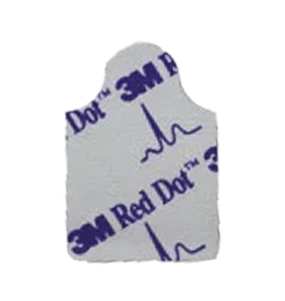

Semi-Stiff Resting Tab (2360)
The 3M 2360 EKG Resting Tab is for a short term critical diagnostic application. Its extra-large tab-style design creates easy application and removal. It also features the most aggressive pressure-sensitive conductive adhesive to ensure contact with the skin to achieve high-quality trace pickup. The semi-stiff backing also minimizes electrode lift. It's radiolucent for patients needing radiological imaging.
Suggested Applications
- 12-Lead EKG Resting Diagnostic Testing
ECG Electrode Features and Benefits
- Trusted Brand
- Provides Standardization of Care
- Avalialbe for adult and pediatric patients
- Easy to apply and remove without skin irritation
- Can Remain in Place for Three Days
- Multiple size options for wide variety of applications
- High-quality adhesive for secure placement
- Skin-friendly material
- Latex-free to accommodate latex allergies
- Provides Consistent, High-Quality Electrocardiogram Traces
Product Specifications
- Manufacturer: 3M
- Brand: Red Dot
- Product Numbers: 2231, 2248-50, 2360, 2560, 2570, 2660-3
- Wear-Time: 3 Days, 5 Days (2560, 2570)
- User: Adult, Pediatric
- X-Ray Compatibility: Radiolucent/Nonradiolucent
- Latex-Free Indicator: Not Made With Natural Rubber Latex
- Application: Electrotherapy Electrodes
Frequently Asked Questions (FAQs)
How long do these electrodes last?
The electrodes come with a SureSeal Cap to ensure product freshness for 30 days outside the bag and up to 60 days if the bag is double folded.
How often should the electrode be replaced?
The electrodes are designed to be left in place for three days as long as the skin doesn't show signs of breakdown.
Why is skin abrading recommended before attaching the electrode?
Skin abrading prepares the skin to ensure the best adhesion and and high-quality trace readings.
Application and Removed Instructions?
Application
- Clean the skin site with soap and water.
- If necessary, abrade the skin if there is excessive hair.
- Apply the electrode and firmly rub the finger around the outside of the label to activate the adhesive.
Removal
- Loosen one side by grasping the full width of the electrode and then gently pulling back in the direction of the hair growth.
- Keep the electrode close to the skin surface as possible while lifting and supporting the skin by placing another finger adjacent to that region.
