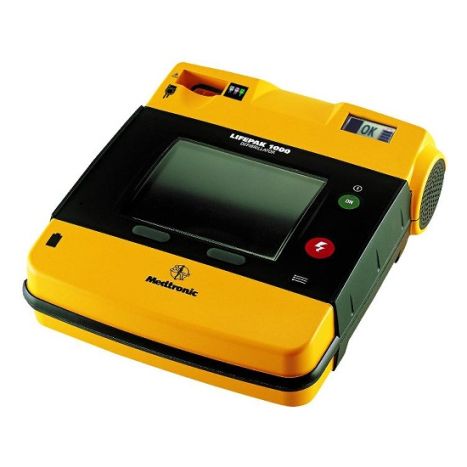

LIFEPAK 1000 Defibrillator with ECG Display 99425-000025

The LIFEPAK 1000 Defibrillator with ECG Display is an industry-leading automatic external defibrillator. The device is very durably constructed and has been drop tested. It can also be stored in a vehicle without any risk of causing damage to the defibrillator. This particular model of the LIFEPAK 1000 is ECG capable with a 3-lead ECG function when needed. The device has a shock counter that digitally records and displays when shocks have been delivered and can transfer this data to a computer. The LIFEPAK 1000 is unique because it is capable of delivering shocks that equal up to 360 joules. Studies have shown that some victims who do not respond to a shock at 200 joules are more likely to respond to a shock at 360 joules. When in use, the LIFEPAK 1000 will first determine whether a shock is necessary or if CPR should continue. If the shock is deemed necessary, the AED will begin to administer a 200-joule level shock and gradually escalate the power level.

The LIFEPAK 1000 comes with cprMAX technology that allows the rescuer to continue administering CPR while the AED is charging. This will minimize the number of CPR interruptions. The CPR Countdown Timer clearly instructs the rescuer on how long each CPR interval should be. The device has clear, loud voice prompting and graphics that make it easy for anyone to follow the instructions. The interface can also be programmed to adhere to a team's CPR protocol. The electrodes that are included with the AED are compatible with all other types of LIFEPAK AEDs.

LIFEPAK 1000 Defibrillator Features and Benefits

• Durably constructed, has been drop tested
• Can be stored in a vehicle without being damaged
• ECG Capable: 3-lead ECG function available when needed
• Shock counter digitally records and shows delivered shocks
• Capable of escalating to 360 joules, if necessary
• Flexible energy that increases after a lower energy was unsuccessful
• cprMAX technology enables rescuer to continue CPR while AED is charging
• CPR Countdown Timer directs rescuer concerning length of hands-on time for each round of CPR
• Large LCD screen that is easy to read
• Electrodes compatible with all other types of LIFEPAK AEDs
• Can be programmed to adhere to team's CPR protocol, can be set at 15, 30, 45, 60, 90, 120 and 180 seconds
• User-friendly interface uses voice prompting and graphics to clearly instruct rescuer

Product Specifications

• Reference Number: 99425-000023
• Height: 3.4 Inches
• Width: 9.2 Inches
• Depth: 10.9 Inches
• Weight: 7.1 Pounds
• ECG Waveform Sweep Speed: 25 mm/second
• Energy Sequence: 150-360 joules
• Charge Time: 200 joules in less than 7 seconds, 360 joules in less than 12 seconds
• Infant/Child Reduced Energy Electrodes: Reduces selected energy by factor of 4
• Safety Classification: Internally powered equipment IEC 60601-1
• Device Modes:
• AED: Provides instructions for basic users
• Manual: Provides instructions for advanced users
• Setup: user can configure device
• Data Transfer: user can transfer patient data
• Auto Test: Tests hardware and software daily
• Display size: 4.7 inches long, 3.5 inches wide
• Battery: Lithium Manganese Dioxide, 12.0V, 4.5 amp-hours
• Capacity: 1030 minutes of operating time with new battery
• Battery Weight: 1 lb
• New Battery Power: 5 years
• Battery stored for 5 years: 48 months standby life
• Low Battery Indication: After 30 shocks or 75 minutes of operating time
