John Bunn Neb-u-Lite LX2 Nebulizer Compressor

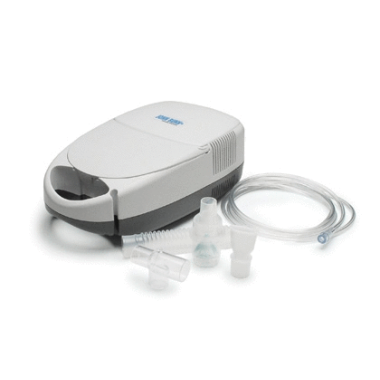

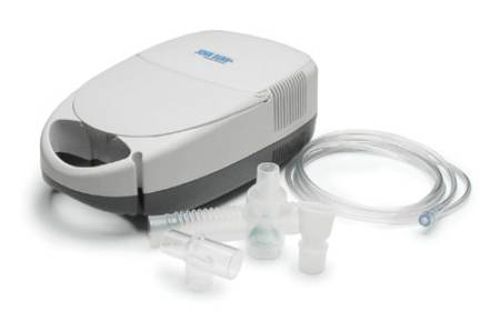

Neb-u-Lite LX2 Nebulizer Compressor Overview

The Nebu-u-Lite LX2 Nebulizer Compressor is designed to efficiently deliver aerosol mist medications to the lungs. Compressed air travels to the nebulizer, forcing the medicated mist into the nebulizer mouthpiece. Intended for home use, its compact design, built-in handle, and component storage compartment make it ideal for portable use. The high-performing yet quiet piston pump compressor effectively delivers aerosol therapy. User-friendly design makes setup, application, and maintenance simple and straightforward. Consult a doctor for specific advice, but this device is generally indicated for people with asthma, chronic obstructive pulmonary disease, chronic bronchitis, infection of the upper respiratory tract, and other respiratory disorders.



Features and Benefits

• Simple to Use for New and Experienced Patients
• Quiet Aerosol Compression
• Accessible Design
• High-Performing Piston-Driven Motor
• Nebulizer Features 0.2 ml/min Flow Rate
• Reusable Nebulizer
• Built-In Nebulizer Cup and Holder Stabilization Cup While Adding Medication
• Storage Compartment Conveniently Holds Components

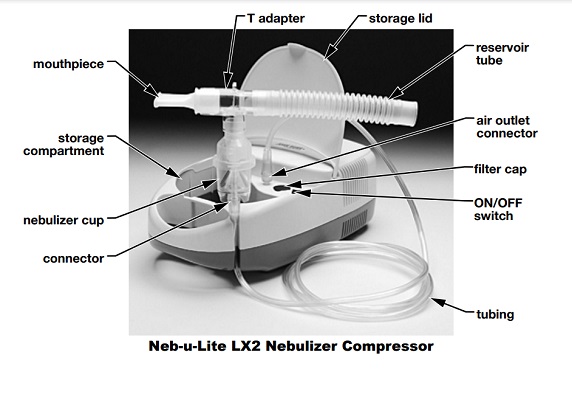

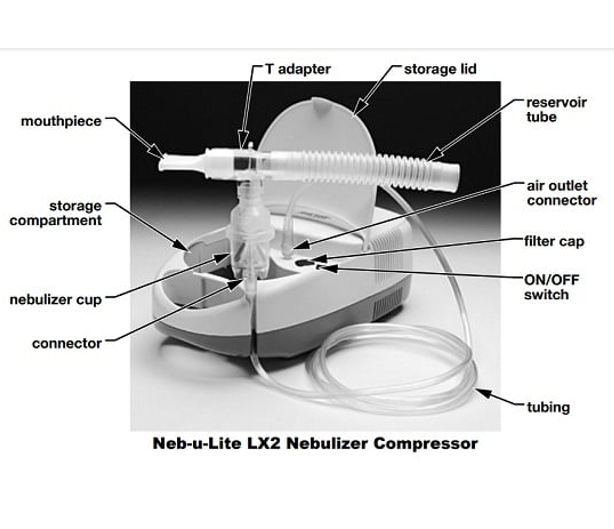

Components

• Connector
• Storage Compartment
• Nebulizer Cup
• Mouthpiece
• T Adaptor
• Storage Lid
• Reservoir Tube
• Air Outlet
• Filter Cap
• ON/OFF Switch
• Tubing



How to Use the LX2 Compressor Nebulizer?

Setup

1. Unplug before setting up.
2. Prior to every use, check all components for damage.
3. Position on a flat, stable surface (not on the floor).
4. Twist nebulizer medication cup counter-clockwise then remove the cap.
5. Pour the doctor-recommended amount of medication into the cup.
6. Do not add more than 5 ml.

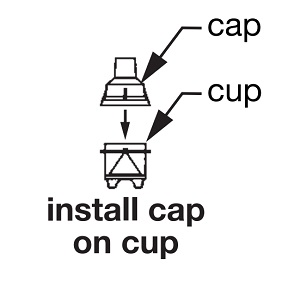

7. Replace the cap by turning clockwise.

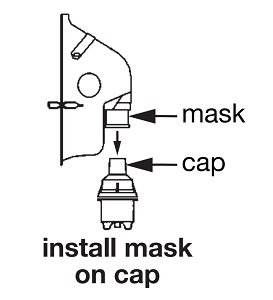

8. Skip to step 9 if using the mouthpiece. If using the optional mask, place the bottom of the mask into the top of the cup as illustrated below. Skip to step 9.

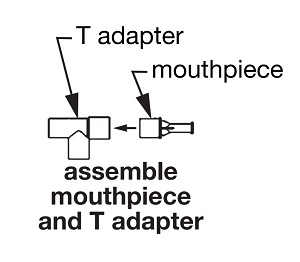

9. Install mouthpiece into the large part of the T adaptor.

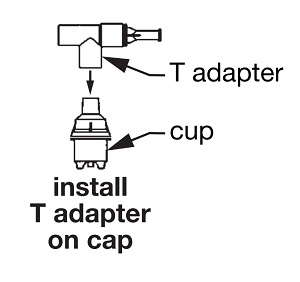

10. Insert T Adaptor to top of medication cap.




11. Attach the included tubing with the adapter on the bottom of the nebulizer cap
12. Fasten the tubing's other end to the air outlet connector.

Operation

1. Verify that the machine is off.
2. Plug the power cord into a wall outlet.
3. Switch to "On" position.
4. Set the mouthpiece between teeth and close mouth (or put on the face mask if recommended by a doctor).
5. Inhale slowly as aerosol begins flowing.
6. After treatment is finished, switch the machine off.
7. Unplug from the power outlet.
8. Disconnect tubing.
9. Clean as instructed.

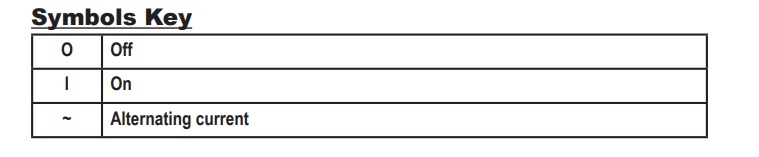

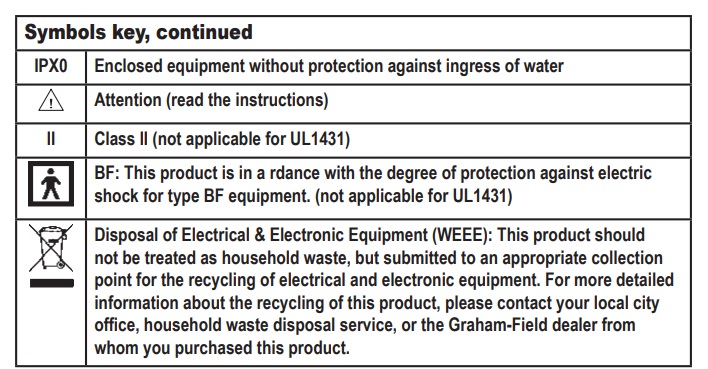

Symbols Key





Precautions and Safety

• Avoid using if the nozzle is obstructed
• Verify that all components are properly connected
• Do not use impromptu filters such as cotton
• Do not operate for more 30 minutes during a single session
• Unplug directly after use
• Do not submerge in water
• Do not leave device while it's plugged in
• Only use accessories approved and recommended by the manufacturer
• Do not operate if the cord is damaged
• Do not obstruct air openings
• Do not operate on soft, unstable surfaces
• Do not insert any object into any openings or the hose
• Do not use while sleepy
• Do not lubricate any component
• Avoid removing any part of the device while the device is plugged in
• Never leave medication inside the nebulizer when it is not in use
• Do not share mouthpiece



Frequently Asked Questions

What is the warranty?
The compressor comes with a five-year limited warranty. Accessories have a six-month limited warranty

Does it require batteries?
No. It is powered by AC.

Is it portable?
Yes. The system is light and offers a compartment to hold parts. It also has a built-in handle.

Is it intended for children and adults?
Yes.

Does it meet the requirements of Healthcare Common Procedure Coding System (HCPCS)?
Yes. HCPCS Code: E0570



Maintenance

Cleaning

1. Unplug the device before cleaning.
2. Dissemble the mouthpiece, T Adaptor, and nebulizer cup after every operation.
3. Use warm soap water.
4. Rinse vigorously.
5. After cleaning as defined above, soak components once a day in a solution made up of one part white vinegar and one part warm water for half an hour.
6. Rinse with warm water again.
7. Let dry in a sterile location.

Storage

1. Store in a dry and sterile location.
2. Do not store in direct sunlight

Replacing the Filter

1. Verify the switch is in the "Off" position.
2. Remove the used filter with a long, pointed device.
3. Replace with a new filter.
4. Replace the filter cap.

Replace the filter approximately every 30 days or when it turns gray.

Warnings

1. Do not reuse the filter.
2. Do not use other substances as a filter.
3. Do not use the compressor without a filter.



Indications

• Chronic Obstructive Pulmonary Disease (COPD)
• Upper Respiratory Tract Infection
• Chronic Bronchitis
• Asthma
• Other Ailments with a Doctor's Recommendation

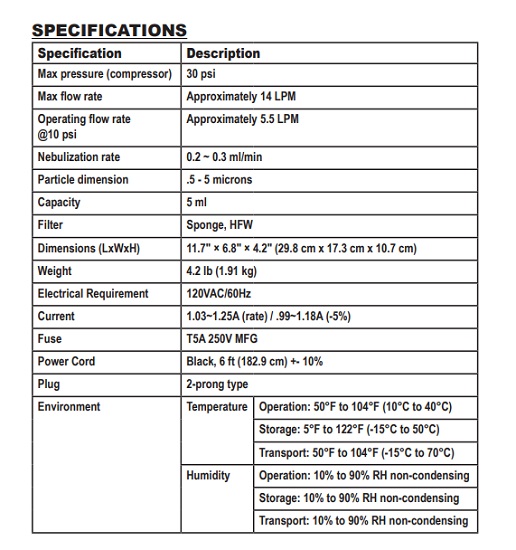

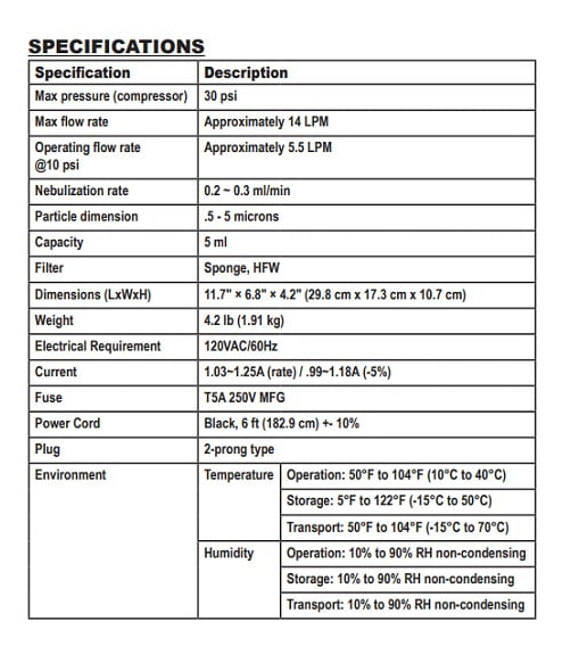

Specifications

• Manufacturer: Graham-Field
• Brand: Neb-u-Lite
• Product Number(s): J-JB0112-110
• Weight: 4.2 Pounds
• Max Compressor Pressure: 30 psi
• Max Flow Rate: 14 LPM
• Dimensions: 11.7 ?6.8 ?4.2 Inches
• Capacity: 5 ml
• Filter: Sponge, HFW
• Electrical Requirement: 120 VAC / 60 Hz
• Current: 1.03~1.25A (rate) / .99~1.18A (-5%)
• Fuse: T5A 250V MFG
• Power Cord: Black, 6 Feet
• Plug: 2-Prong Type
• Application: Nebulizer Compressor System
• Compressor Warranty: 5-Year Limited Warranty
• Accessory Warranty: 6-Month Limited Warranty



Manuals and Documents

•    Product Manual contains use and care instructions.
