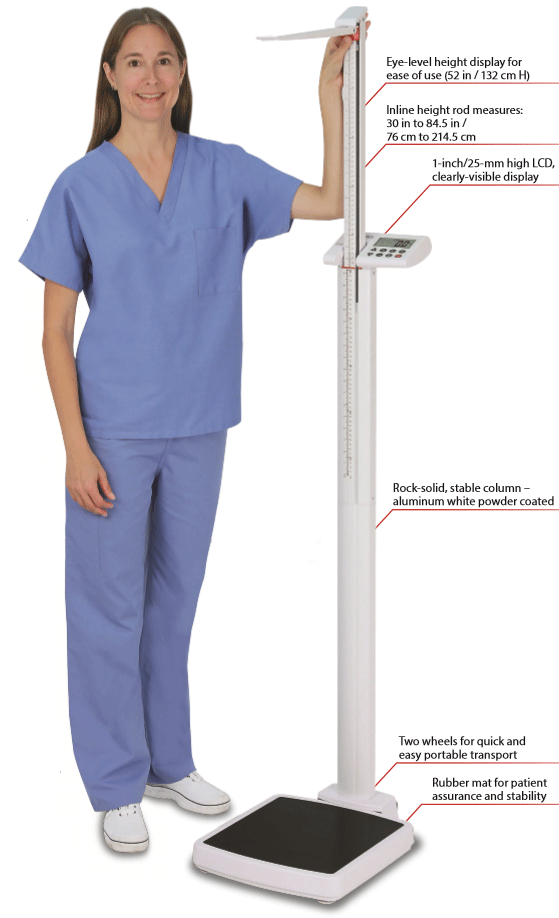

Detecto solo Physician Eye-level Scale

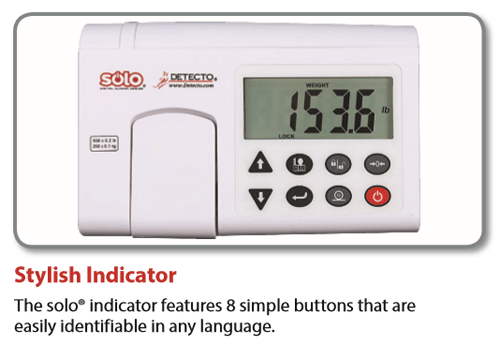

The solo® Digital Physician Scale is an eye-level scale designed for clinical settings. The Detecto solo has a weight capacity of 550 pounds. The weight display is in a column format at eye-level, making it easy to read and easy to control. A wall mount display or desktop bracket are also available. The solo® indicator features 8 simple buttons that are easily identifiable in any language. The LCD display provides readouts for weight and calculates Body Mass Index. The solo scale is powered by 6 AA batteries, which are included, or an optional AC adapter.

Detecto's solo® Eye-level Scale has wheels integrated into the scale for easy mobility and relocation within the office. This economical scale accommodates a height rod with a range of 30 in to 84.5 in. Readout for the height is displayed quickly and accurately with automatic height viewing on wall-mount or desktop remote displays. The solo physician scale has a low-profile platform, one-inch-high LCD readout, RS232 serial port, and convenient audible beep confirmation.

Features & Benefits

• Physician scale.
• Designed for clinical settings.
• Eye-level weight display.

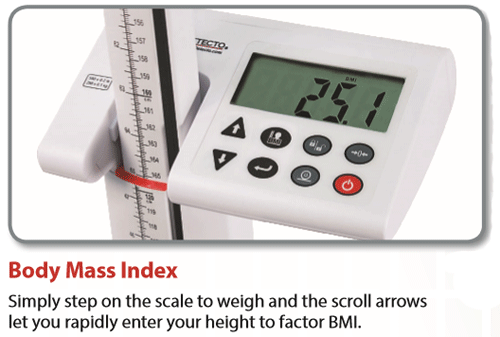

• Calculates Body Mass Index.
• Low-profile platform.
• Economical.
• One RS232 serial port, and convenient audible beep confirmation.

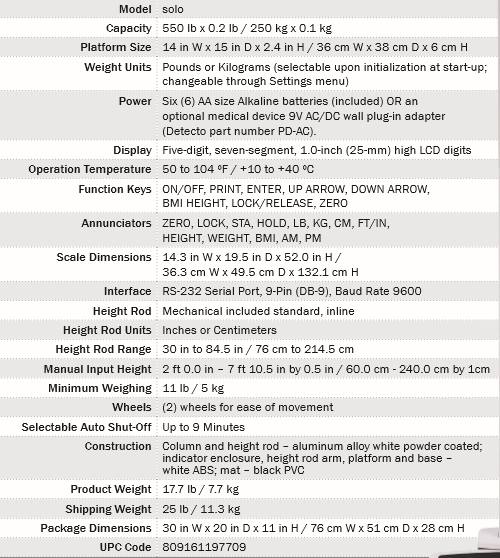

Product Specifications

• Product Number: SOLO.
• Width: 14 Inch.
• Height: 52 Inch.
• Depth: 19.9 Inch.
• Package Dimensions: 30 in W x 20 in D x 11 in H / 76 cm W x 51 cm D x 28 cm H.
• Manual Input Height: 2 ft 0.0 in - 7 ft 10.5 in by 0.5 in / 60.0 cm - 240.0 cm by 1cm.

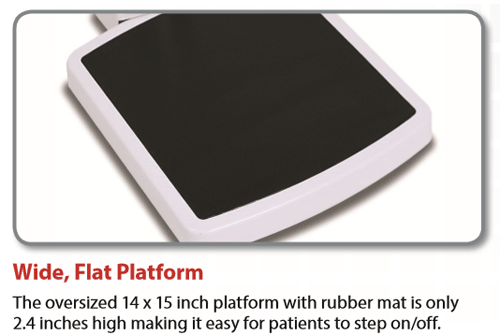

• Platform Size: 14 in W x 15 in D x 2.4 in H / 36 cm W x 38 cm D x 6 cm H.

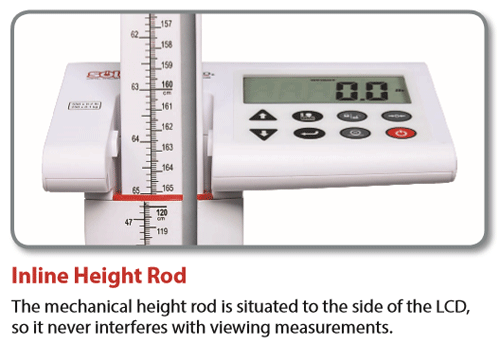

• Height Rod Range: 30 in to 84.5 in / 76 cm to 214.5 cm.
• Product Weight: 17.7 lbs. / 7.7 kg.
• Shipping Weight: 25 lbs. / 11.3 kg.
• Capacity: 550 lb x 0.2 lb / 250 kg x 0.1 kg.
• Minimum Weighing: 11 lb / 5 kg.
• Weight Units: Pounds or Kilograms (selectable upon initialization at start-up; changeable through Settings menu).

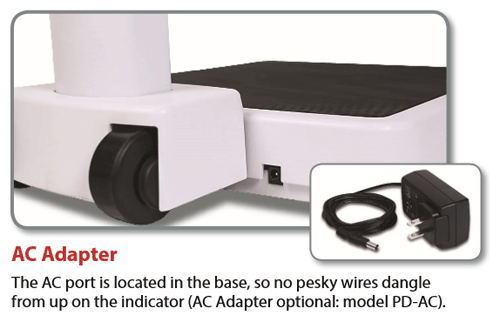

• Power: Six (6) AA size Alkaline batteries (included) OR an optional medical device 9V AC/DC wall plug-in adapter (Detecto part number PD-AC).
• Display: Five-digit, seven-segment, 1.0-inch (25-mm) high LCD digits.
• Operation Temperature: 50 to 104 F / +10 to +40 C.
• Function Keys: ON/OFF, PRINT, ENTER, UP ARROW, DOWN ARROW, BMI HEIGHT, LOCK/RELEASE, ZERO
• Annunciators: ZERO, LOCK, STA, HOLD, LB, KG, CM, FT/IN, HEIGHT, WEIGHT, BMI, AM, PM
• Interface: RS-232 Serial Port, 9-Pin (DB-9), Baud Rate 9600.
• Height Rod: Mechanical included standard, inline.
• Height Rod Units: Inches or Centimeters.

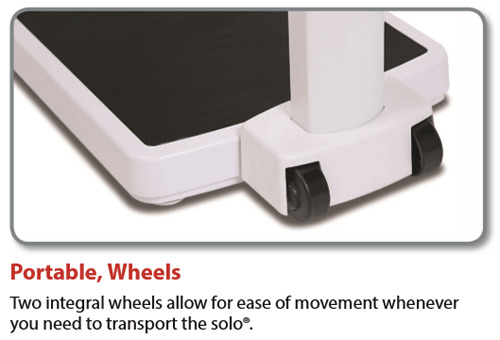

• Wheels: (2) wheels for ease of movement.
• Selectable Auto Shut-Off: Up to 9 Minutes.
• Construction: Column and height rod - aluminum alloy white powder coated; indicator enclosure, height rod arm, platform and base - white ABS; mat - black PVC.
• Manufacturer: Detecto.
• Brand: solo.
• UPC Code: 809161197709.

Additional Information

• Solo Physician Scale Flyer discusses the features for this Detecto eye-level scale.
• Detecto solo Digital Scale Bulletin in English.
• Detecto solo Digital Scale Bulletin in Spanish contains instructions for the user.
• solo Physician Scale Manual provides instructions and setup procedures.
• solo Digital Scale Care Instructions includes cleaning and care information.
